Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-HC2E561HACAP ALUM 560UF 20% 250V SNAP TH |
1,886 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 560 µF | ±20% | 250 V | 296mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2E561JACAP ALUM 560UF 20% 250V SNAP TH |
4,357 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 560 µF | ±20% | 250 V | 296mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EET-HC2E561KACAP ALUM 560UF 20% 250V SNAP TH |
3,129 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 560 µF | ±20% | 250 V | 296mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2E681HFCAP ALUM 680UF 20% 250V SNAP TH |
1,572 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EET-HC2E681HACAP ALUM 680UF 20% 250V SNAP TH |
1,474 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EET-HC2E681JACAP ALUM 680UF 20% 250V SNAP TH |
1,654 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

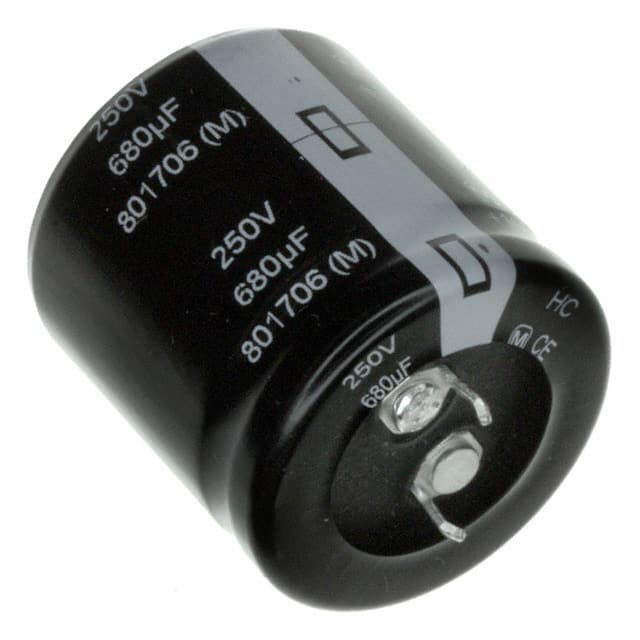

EET-HC2E681KACAP ALUM 680UF 20% 250V SNAP TH |
2,848 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EET-HC2E681LACAP ALUM 680UF 20% 250V SNAP TH |
4,278 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EET-HC2E821JACAP ALUM 820UF 20% 250V SNAP TH |
3,848 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 820 µF | ±20% | 250 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EET-HC2E821KACAP ALUM 820UF 20% 250V SNAP TH |
1,407 | - |
|
Datasheet | TS-HC | Bulk | Obsolete | 820 µF | ±20% | 250 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole |
