Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HP1V2R2RCAP ALUM 2.2UF 20% 35V SMD |
747 | - |
|
Datasheet | HB | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | AEC-Q200 | Automotive | 10 mA @ 120 Hz | 17 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEE-FK0J101PCAP ALUM 100UF 20% 6.3V SMD |
654 | - |
|
Datasheet | FK | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECE-A1EN470UICAP ALUM 47UF 20% 25V RADIAL TH |
295 | - |
|
Datasheet | SU | Cut Tape (CT) | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.480" (12.20mm) | - | Through Hole | |
|

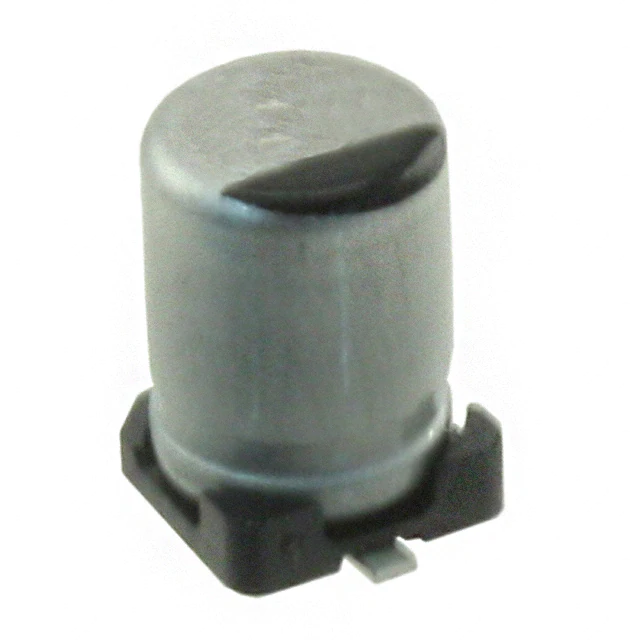

EEE-FT1A680ARCAP ALUM 68UF 20% 10V SMD |
895 | - |
|
Datasheet | FT | Tape & Reel (TR) | Active | 68 µF | ±20% | 10 V | 850mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 160 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECE-A0JN101UCAP ALUM 100UF 20% 6.3V RADIAL |
764 | - |
|
Datasheet | SU | Bulk | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 221 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.441" (11.20mm) | - | Through Hole | |
|
EEU-FR1E821BCAP ALUM 820UF 20% 25V RADIAL TH |
1,576 | - |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 820 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.635 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ECA-1AM332CAP ALUM 3300UF 20% 10V RADIAL |
587 | - |
|
Datasheet | M-A | Bulk | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.853 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEE-HD1E330APCAP ALUM 33UF 20% 25V SMD |
1,514 | - |
|
Datasheet | HD | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 55 mA @ 120 Hz | 93.5 mA @ 10 kHz | 4 Ohms | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECA-2AHG330CAP ALUM 33UF 20% 100V RADIAL TH |
996 | - |
|
Datasheet | NHG-A | Bulk | Active | 33 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 260 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEE-FK1C101SRCAP ALUM 100UF 20% 16V SMD |
2,914 | - |
|
Datasheet | FKS | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 16 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 160 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
