Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

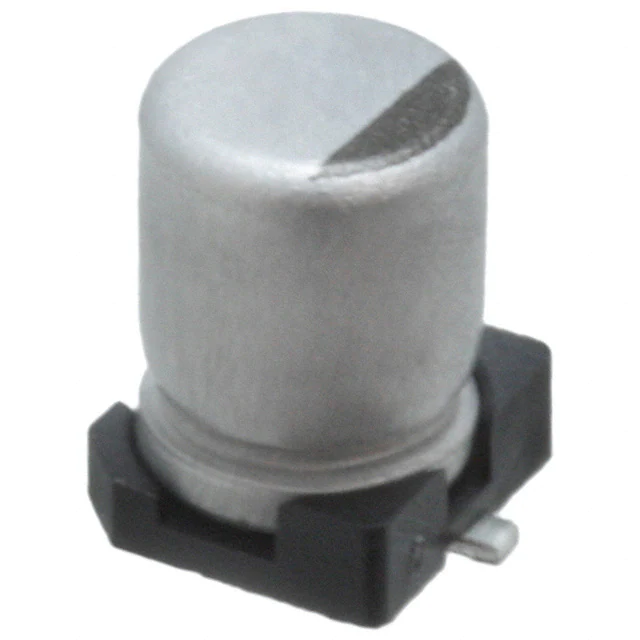

EEE-FT1H100ARCAP ALUM 10UF 20% 50V SMD |
1,888 | - |
|
Datasheet | FT | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | 880mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 107.3 mA @ 120 Hz | 165 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
ECA-1EEN101CAP ALUM 100UF 20% 25V RADIAL TH |
912 | - |
|
Datasheet | GA-A (Bi-polar) | Bulk | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 180 mA @ 120 Hz | 306 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEE-HAE101XAPCAP ALUM 100UF 20% 25V SMD |
404 | - |
|
Datasheet | HA | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 91 mA @ 120 Hz | 154.7 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECA-1VM471BCAP ALUM 470UF 20% 35V RADIAL TH |
985 | - |
|
Datasheet | M-A | Cut Tape (CT) | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 935 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEE-HBC101UAPCAP ALUM 100UF 20% 16V SMD |
283 | - |
|
Datasheet | HB | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-FC1H121LCAP ALUM 120UF 20% 50V RADIAL TH |
663 | - |
|
Datasheet | FC | Bulk | Active | 120 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 412.8 mA @ 120 Hz | 635 mA @ 100 kHz | 155 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.591" (15.00mm) | - | Through Hole | |
|
EEU-FC1E331BCAP ALUM 330UF 20% 25V RADIAL TH |
563 | - |
|
Datasheet | FC | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 490.8 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
EEE-FK1E101SPCAP ALUM 100UF 20% 25V SMD |
242 | - |
|
Datasheet | FKS | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 25 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECA-1JHG221BCAP ALUM 220UF 20% 63V RADIAL TH |
711 | - |
|
Datasheet | NHG-A | Cut Tape (CT) | Active | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 502.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EEU-FM1C471BCAP ALUM 470UF 20% 16V RADIAL TH |
1,932 | - |
|
Datasheet | FM-A | Cut Tape (CT) | Active | 470 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 967.5 mA @ 120 Hz | 1.29 A @ 100 kHz | 38 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
