Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RW3R0DBR050JETRES 0.05 OHM 5% 3W J LEAD |
2,607 | - |
|
Datasheet | RW | 6327 J-Lead | Tape & Reel (TR) | Active | 50 mOhms | ±5% | 3W | Wirewound | Current Sense | - | -55°C ~ 150°C | - | SMD J-Lead, Recessed | 0.625" L x 0.273" W (15.88mm x 6.93mm) | 0.231" (5.87mm) | 2 | - |
|
FC4L110R015FERRES 0.015 OHM 5W 4320 WIDE |
4,268 | - |
|
Datasheet | FC4L | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 4 | - |
|
|
FC4L110R020FERRES 0.02 OHM 5W 4320 WIDE |
1,152 | - |
|
Datasheet | FC4L | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 4 | - |
|
|
FC4L110R030FERRES 0.03 OHM 5W 4320 WIDE |
3,957 | - |
|
Datasheet | FC4L | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 30 mOhms | ±1% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 4 | - |
|
RC0R5DB24R0JETRES SMD 24 OHM 5% 1/2W J LEAD |
4,886 | - |
|
Datasheet | RC | 6327 J-Lead | Tape & Reel (TR) | Obsolete | 24 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | ±400ppm/°C | -55°C ~ 150°C | - | SMD J-Lead, Recessed | 0.625" L x 0.273" W (15.88mm x 6.93mm) | 0.231" (5.87mm) | 2 | - |
|
|
FC4L76R003FERCURRENT SENSE CHIP 1% 0.003 OHM |
2,294 | - |
|
Datasheet | FC4L | Wide 3015 (7638 Metric), 1530 | Tape & Reel (TR) | Active | 3 mOhms | ±1% | 3W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 7638 | 0.150" L x 0.299" W (3.80mm x 7.60mm) | 0.031" (0.80mm) | 4 | - |
|
|
FC4L76R015FERCURRENT SENSE CHIP 1% 0.015 OHM |
1,412 | - |
|
Datasheet | FC4L | Wide 3015 (7638 Metric), 1530 | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 3W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 7638 | 0.150" L x 0.299" W (3.80mm x 7.60mm) | 0.031" (0.80mm) | 4 | - |
.jpg)
|
RW0S6BBR020FETRES 0.02 OHM 1% 0.6W 2010 |
3,725 | - |
|
Datasheet | RW | 2010 (5025 Metric) | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 0.6W | Wirewound | Current Sense | ±90ppm/°C | -55°C ~ 150°C | - | 2010 | 0.202" L x 0.100" W (5.14mm x 2.54mm) | 0.140" (3.55mm) | 2 | - |
|
HVC0603Z2506GETRESISTOR |
3,549 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

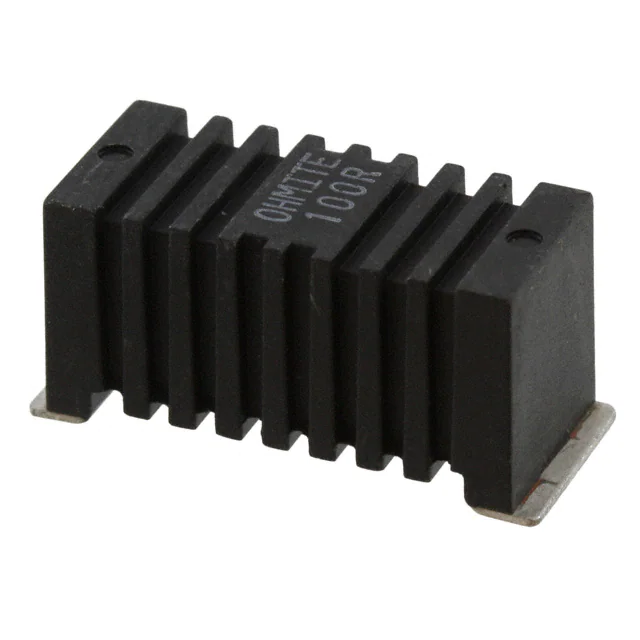

RW5S0FA100RJERES SMD 100 OHM 5% 5W L BEND |
3,200 | - |
|
Datasheet | RW | SMD, L-Bend | Strip | Discontinued at Digi-Key | 100 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 155°C | - | - | 0.806" L x 0.365" W (20.47mm x 9.27mm) | 0.406" (10.31mm) | 2 | - |
