Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FE2X39-3-2NLCMC 350MA 2LN TH |
2,438 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 350mA | 2.6Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PAC6006.264NLTCMC 11A 2LN 1.4K OHM SMD |
1,033 | - |
|
Datasheet | Horizontal, 4 J-Lead | - | 2 | 1.4 kOhms @ 5.3 MHz | - | 11A | 5.5mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PAC6034.205NLTCMC 1.1A 2LN 16.2K OHM SMD |
147 | - |
|
Datasheet | Vertical, 4 Gull Wing | - | 2 | 16.2 kOhms @ 2 MHz | - | 1.1A | 290mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

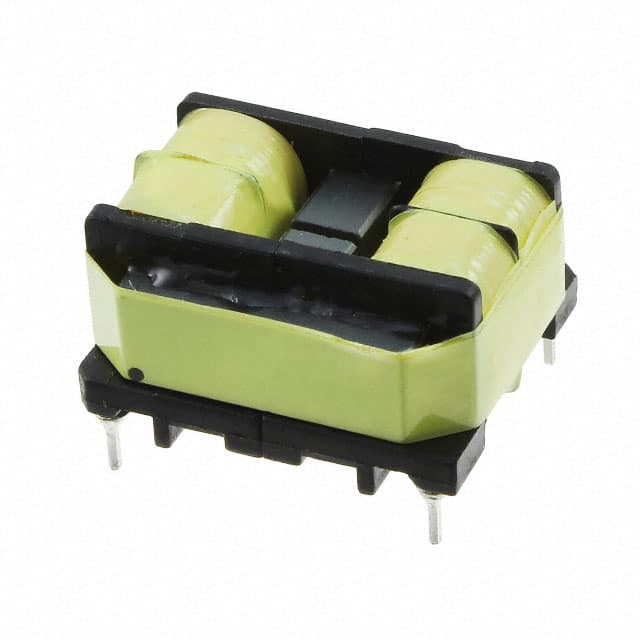

PA4040.003NLCMC 2.5A 2LN TH |
1,670 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 46mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4040.002NLCMC 1.5A 2LN TH |
1,666 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 120mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4040.004NLCMC 3.5A 2LN TH |
1,654 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.5A | 32mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4040.001NLCMC 1A 2LN TH |
1,613 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 245mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PA3747.146NLCMC 1A 2LN TH |
1,190 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 1A | 207mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.305NLCMC 2.75A 2LN TH |
1,190 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.75A | 49.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.605NLCMC 1.55A 2LN TH |
1,190 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 1.55A | 132mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
