Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3747.705NLCMC 1.5A 2LN TH |
1,190 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 134mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.905NLCMC 1.45A 2LN TH |
1,190 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 1.45A | 154mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.505NLCMC 1.85A 2LN TH |
1,186 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 1.85A | 103.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.306NLCMC 750MA 2LN TH |
1,183 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 750mA | 572mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.206NLCMC 1A 2LN TH |
1,173 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 1A | 295mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.106NLCMC 1.4A 2LN TH |
1,070 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.4A | 169mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-62891NLCMC |
408 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T8132NLCMC 16LN SMD |
295 | - |
|
Datasheet | - | - | 16 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

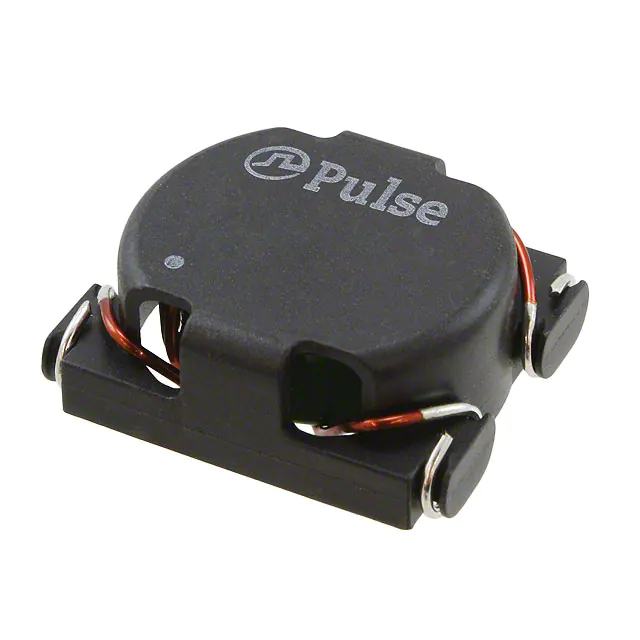

PA2757NLCMC 9A 2LN SMD |
4,140 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 9A | 9.75mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
P0502NLCMC 14A 2LN SMD |
4,244 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
