Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

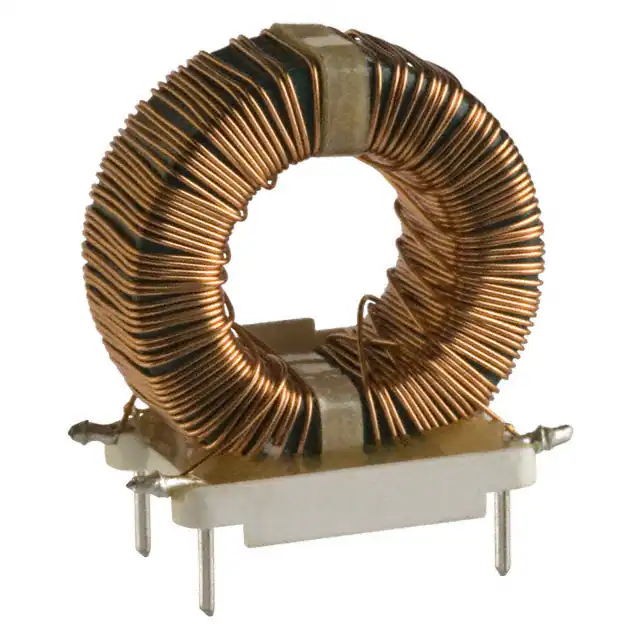

8114CMC 2.5MH 12.5A 2LN TH |
1,696 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8115CMC 1.2MH 16A 2LN TH |
1,511 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8109CMC 30MH 2.3A 2LN TH |
3,467 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8110CMC 20MH 2.9A 2LN TH |
2,762 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 20 mH @ 1 kHz | 2.9A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8111CMC 12MH 4A 2LN TH |
2,409 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8112CMC 8MH 5.6A 2LN TH |
2,761 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8116CMC 50MH 2.3A 2LN TH |
1,534 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 50 mH @ 1 kHz | 2.3A | 450mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8117CMC 36MH 2.9A 2LN TH |
1,409 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8118CMC 7.3MH 9.3A 2LN TH |
3,209 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8119CMC 4MH 14.5A 2LN TH |
1,210 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
