Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8120CMC 2.4MH 17A 2LN TH |
3,423 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8121CMC 1MH 20A 2LN TH |
4,484 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

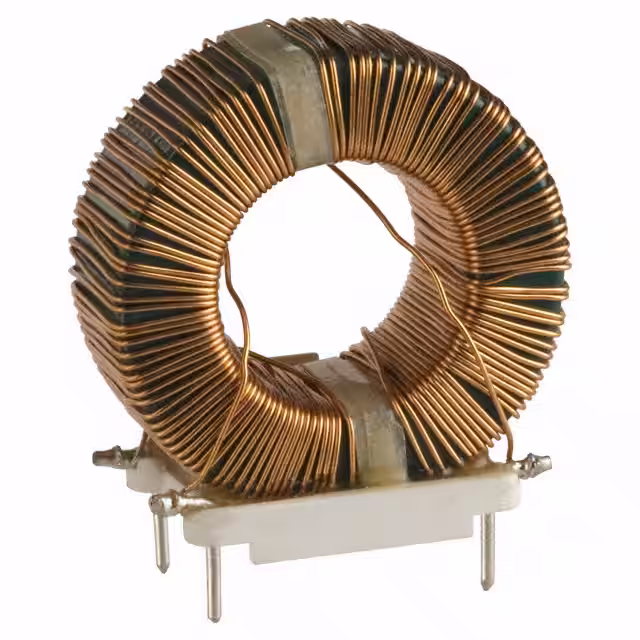

8117-RCCMC 36MH 2.9A 2LN TH |
3,288 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 36 mH @ 1 kHz | 2.9A | 300mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
FB20021-4BCMC 2LN 460 OHM TH |
4,422 | - |
|
Datasheet | Axial - 4 Leads | - | 2 | 460 Ohms @ 100 MHz | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB20011-3BCMC 2LN 430 OHM TH |
3,375 | - |
|
Datasheet | Axial - 4 Leads | - | 2 | 430 Ohms @ 100 MHz | - | - | - | - | - | - | - | - | - | - | - |
|
7101CMC 600UH 1A 2LN TH |
3,288 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 600 µH @ 1 kHz | 1A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7102CMC 1MH 1A 2LN TH |
3,589 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 1A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7113CMC 2MH 2A 2LN TH |
3,081 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 2A | 75mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7116CMC 8MH 2A 2LN TH |
3,638 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7120CMC 8MH 4A 2LN TH |
3,946 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 4A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
