DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-1571999-1SWITCH PIANO DIP SPST |
2,668 | - |
|
Datasheet | ADPA | Tube | Active | SPST | 6 | - | - | Piano | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
2-435668-8SWITCH ROCKER DIP SPST 0.06A 5V |
1,416 | - |
|
Datasheet | 7100 | Tube | Active | SPST | 8 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
GDP06SSWITCH PIANO DIP SPST 0.025A 24V |
1,091 | - |
|
Datasheet | GDP | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDP08SWITCH PIANO DIP SPST 0.025A 24V |
1,564 | - |
|
Datasheet | GDP | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADPA08SWITCH PIANO DIP SPST 0.025A 24V |
3,548 | - |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
5-435640-0SWITCH ROCKER DIP SPST |
3,310 | - |
|
Datasheet | 7100 | Tube | Active | SPST | 8 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
2-2319764-7E STACK PIANO 4P G SHORT SEAL T& |
4,526 | - |
|
Datasheet | EDSP | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
6-1571999-2SWITCH PIANO DIP SPST |
3,266 | - |
|
Datasheet | ADPA | Tube | Active | SPST | 10 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
5435668-9SWITCH ROCKER DIP SPST |
4,074 | - |
|
Datasheet | 7100 | Tape & Reel (TR) | Active | SPST | 10 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|

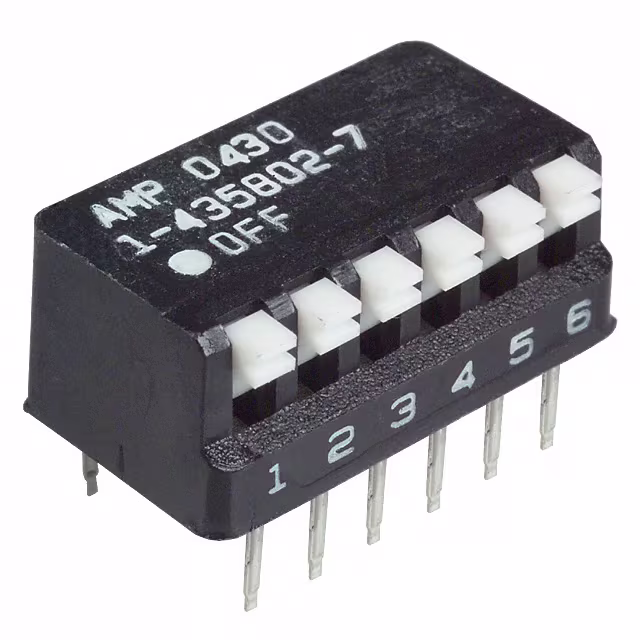

1-435802-7SWITCH PIANO DIP SPST 0.025A 24V |
2,594 | - |
|
Datasheet | 7000 | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
