DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-435640-2SWITCH ROCKER DIP SPST 0.06A 5V |
4,743 | - |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 12 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
GDH02SATR04SWITCH SLIDE DIP SPST 0.025A 24V |
1,653 | - |
|
Datasheet | GDH | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADP08SSWITCH PIANO DIP SPST 0.025A 24V |
4,971 | - |
|
Datasheet | ADP | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADP10SWITCH PIANO DIP SPST 0.025A 24V |
4,619 | - |
|
Datasheet | ADP | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA10SWITCH PIANO DIP SPST 0.025A 24V |
3,776 | - |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
435802-1SWITCH PIANO DIP SPST 0.025A 24V |
1,385 | - |
|
Datasheet | 7000 | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
ADPA08SSWITCH PIANO DIP SPST 0.025A 24V |
4,973 | - |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
GDS08SWITCH SLIDE DIP SPST 0.025A 24V |
4,811 | - |
|
Datasheet | GDS | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
3-435802-8SWITCH PIANO DIP SPST |
2,433 | - |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 8 | - | - | Piano | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|

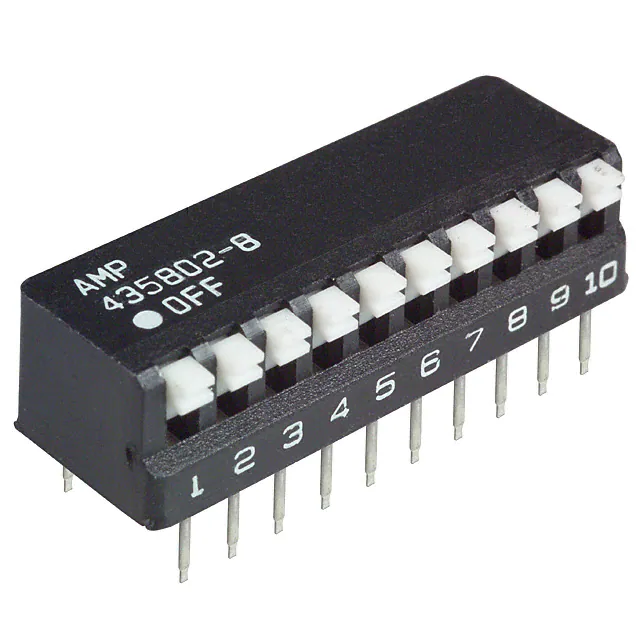

5435802-8SWITCH PIANO DIP SPST |
2,604 | - |
|
Datasheet | 7000 | Tube | Active | SPST | 10 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | No | - | - |
