DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

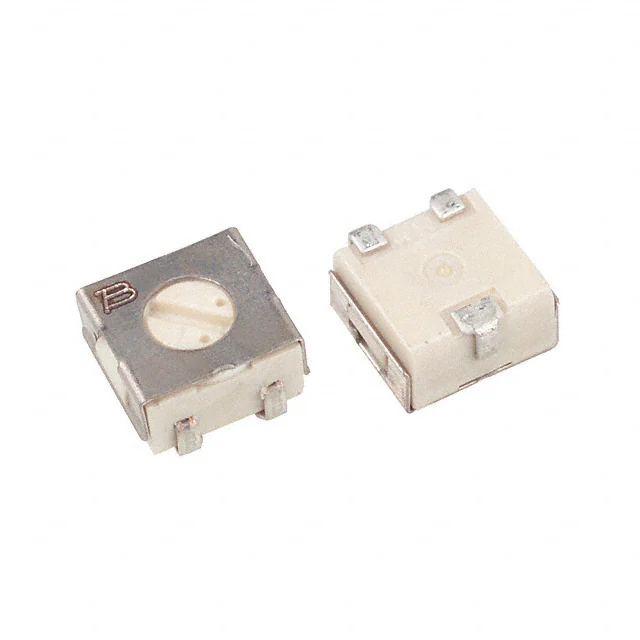

7814J-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
208 | - |
|
Datasheet | 7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|

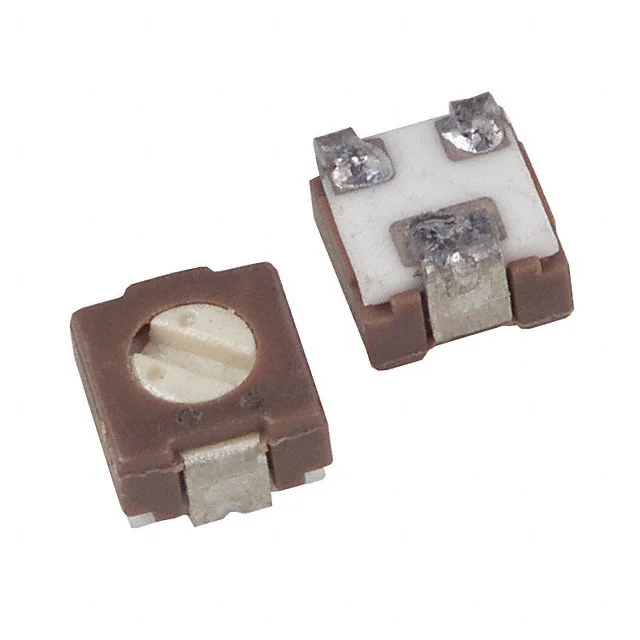

7813J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
2,541 |
1+：$1.44800 10+：$1.22160 25+：$1.13408 100+：$1.01024 250+：$0.93670 500+：$0.88626 |
|
Datasheet | 7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.087" (2.20mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|
7814J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
4,815 | - |
|
Datasheet | 7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|
7829H-1-051LFSWITCH ROTARY DIP SPDT 0.1A 16V |
103 | - |
|
Datasheet | 7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.180" (4.57mm) | Through Hole | PC Pin | - | Yes | - | -55°C ~ 125°C |
|

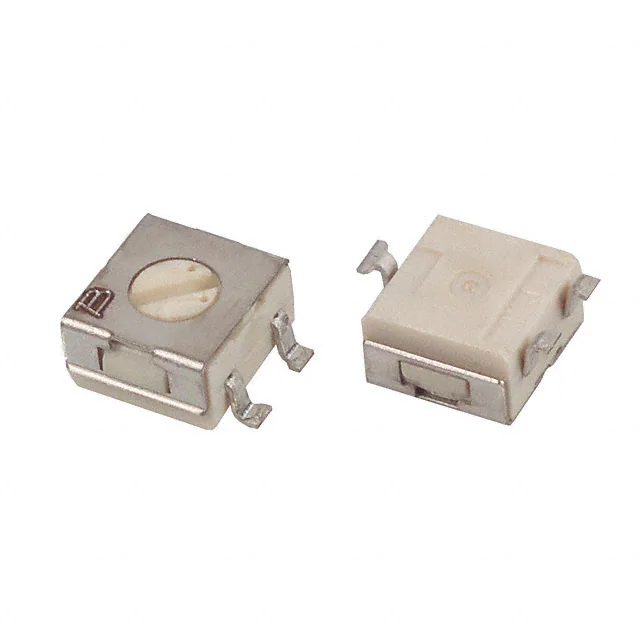

7814G-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
651 | - |
|
Datasheet | 7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | Gull Wing | - | No | - | -55°C ~ 125°C |
|
7814Z-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
443 | - |
|
Datasheet | 7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.226" (5.74mm) | Surface Mount, Right Angle | J Lead | - | No | - | -55°C ~ 125°C |
|
7813S-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
230 | - |
|
Datasheet | 7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.211" (5.35mm) | Surface Mount, Right Angle | J Lead | - | No | - | -55°C ~ 125°C |
|

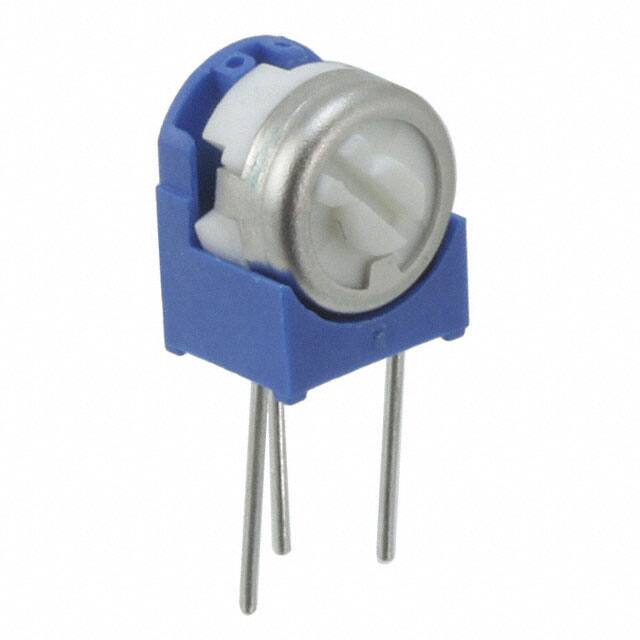

7829S-1-023LFSWITCH ROTARY DIP SPDT 0.1A 16V |
2,328 | - |
|
Datasheet | 7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.330" (8.38mm) | Through Hole, Right Angle | PC Pin | - | Yes | - | -55°C ~ 125°C |
|
7814G-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
1,646 | - |
|
Datasheet | 7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | Gull Wing | - | No | - | -55°C ~ 125°C |
|
7829H-1-023LFSWITCH ROTARY DIP SPDT 0.1A 16V |
2,500 | - |
|
Datasheet | 7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.180" (4.57mm) | Through Hole | PC Pin | - | Yes | - | -55°C ~ 125°C |
