Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-18E680LFIXED IND 68UH 3.6A 36 MOHM TH |
4,823 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.6 A | - | Shielded | 36mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E681LFIXED IND 680UH 1.2A 190 MOHM TH |
4,746 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.2 A | - | Shielded | 190mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E6R8LFIXED IND 6.8UH 6.5A 13 MOHM TH |
4,261 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.5 A | - | Shielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E820LFIXED IND 82UH 3.5A 40 MOHM TH |
2,070 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 3.5 A | - | Shielded | 40mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E821LFIXED IND 820UH 1.1A 210 MOHM TH |
4,569 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 1.1 A | - | Shielded | 210mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|
|
ELC-18E8R2LFIXED IND 8.2UH 6.2A 13 MOHM TH |
3,632 | - |
|
Datasheet | 18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 6.2 A | - | Shielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.748" Dia (19.00mm) | 0.988" (25.10mm) |
|

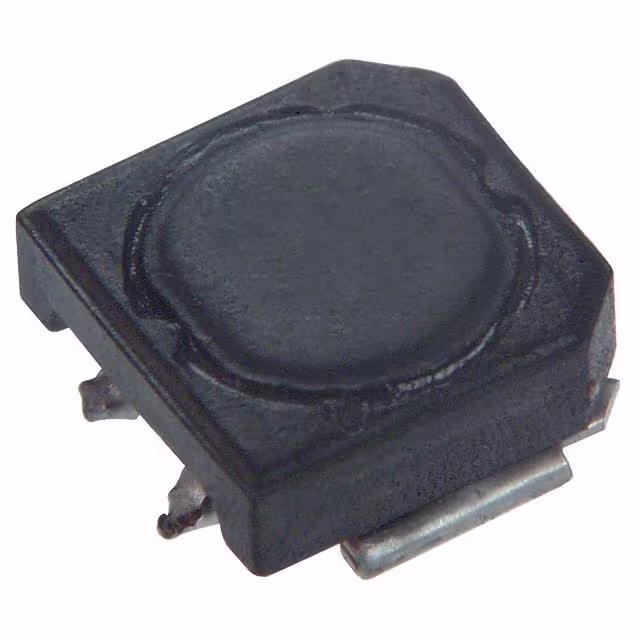

ELL-6RH4R7MFIXED IND 4.7UH 1.58A 49MOHM SMD |
3,456 | - |
|
Datasheet | H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 1.58 A | - | Shielded | 49mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.110" (2.80mm) |
|

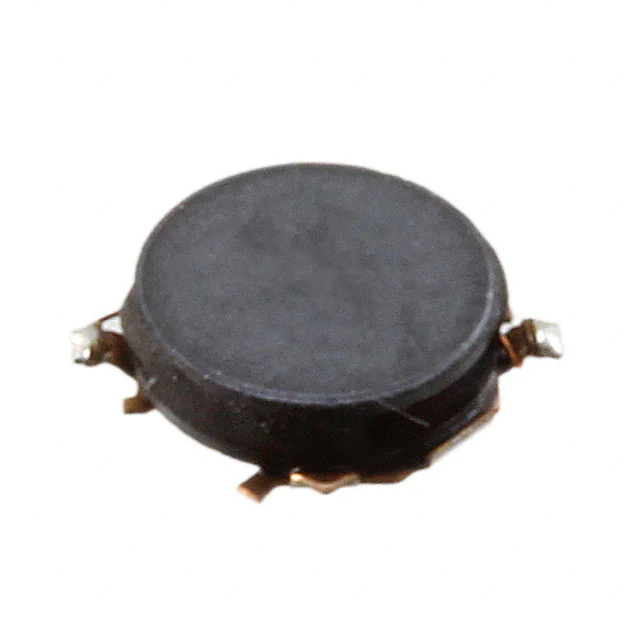

ELL-SFG3R3NAFIXED IND 3.3UH 1.15A 110MOHM SM |
1,383 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.15 A | 1.1A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG4R7NAFIXED IND 4.7UH 1.1A 130MOHM SMD |
3,549 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.1 A | 1A | Shielded | 130mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG6R8NAFIXED IND 6.8UH 950MA 180MOHM SM |
4,595 | - |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 950 mA | 800mA | Shielded | 180mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
