Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1025-40KFIXED IND 6.8UH 185MA 2 OHM TH |
1,888 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±10% | 185 mA | - | Unshielded | 2Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-18KFIXED IND 820NH 420MA 850MOHM TH |
1,875 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±10% | 420 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-54KFIXED IND 27UH 140MA 3.5 OHM TH |
1,606 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 27 µH | ±10% | 140 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-14KFIXED IND 560NH 550MA 500MOHM TH |
892 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 560 nH | ±10% | 550 mA | - | Unshielded | 500mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-30KFIXED IND 2.7UH 355MA 550MOHM TH |
874 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.7 µH | ±10% | 355 mA | - | Unshielded | 550mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

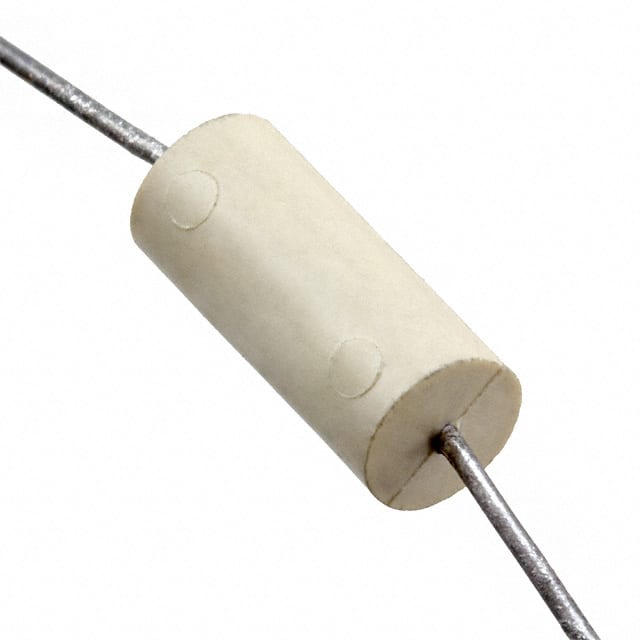

2500-28JFIXED IND 1MH 88MA 16.5 OHM TH |
598 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS90539 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±5% | 88 mA | - | Unshielded | 16.5Ohm Max | 60 @ 790kHz | 2.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - |
|
1812R-123JFIXED IND 12UH 317MA 2 OHM SMD |
26,050 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±5% | 317 mA | - | Unshielded | 2Ohm Max | 50 @ 2.5MHz | 18MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-274JFIXED IND 270UH 129MA 12 OHM SMD |
12,685 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±5% | 129 mA | - | Unshielded | 12Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-223JFIXED IND 22UH 250MA 3.2 OHM SMD |
4,295 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±5% | 250 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812R-102JFIXED IND 1UH 634MA 500 MOHM SMD |
3,166 | - |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 634 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
