Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4590R-226KFIXED IND 22MH 190MA 18 OHM TH |
798 |
1+：$5.28000 10+：$4.34080 25+：$4.01600 50+：$3.78656 100+：$3.57064 250+：$3.30429 500+：$3.11642 1000+：$2.93951 2500+：$2.90440 |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 190 mA | 120mA | Unshielded | 18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-156KFIXED IND 15MH 250MA 10.7 OHM TH |
455 | - |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 250 mA | 150mA | Unshielded | 10.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
4922R-53LFIXED IND 22MH 50MA 160 OHM SMD |
6,968 | - |
|
Datasheet | 4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±15% | 50 mA | 50mA | Unshielded | 160Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|

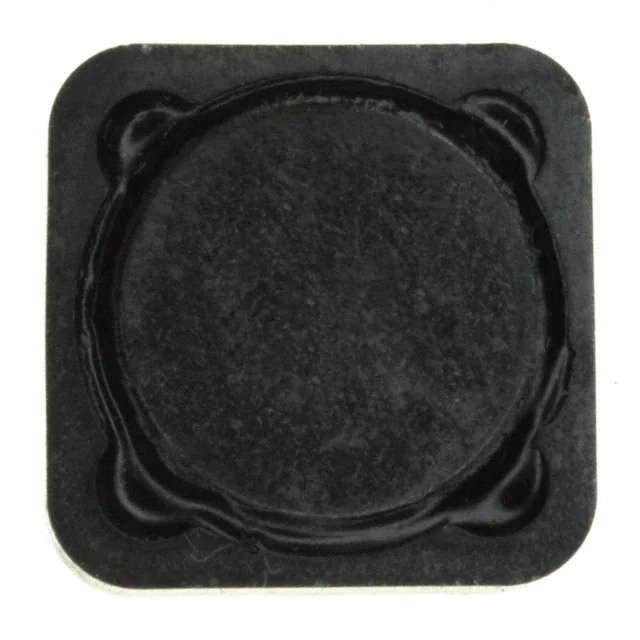

SPD127R-105MFIXED IND 1MH 620MA 1.54 OHM SMD |
4,479 | - |
|
Datasheet | SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 620 mA | 620mA | Shielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127R-333MFIXED IND 33UH 3A 65 MOHM SMD |
2,151 | - |
|
Datasheet | SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 3A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
1008R-103JFIXED IND 10UH 245MA 2.5 OHM SMD |
3,155 | - |
|
Datasheet | 1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 245 mA | - | Unshielded | 2.5Ohm Max | 30 @ 7.9MHz | 28MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
|
1008R-472JFIXED IND 4.7UH 334MA 1.35 OHM |
0 |
1+：$4.80000 10+：$3.94880 25+：$3.65344 50+：$3.44480 100+：$3.25584 |
|
Datasheet | 1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 334 mA | - | Unshielded | 1.35Ohm Max | 30 @ 7.9MHz | 47MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|
2474R-03LFIXED IND 1.5UH 5.67A 11 MOHM TH |
210 |
1+：$5.36800 10+：$4.41680 25+：$4.08608 50+：$3.85280 100+：$3.63304 250+：$3.36208 500+：$3.17096 1000+：$2.99104 2500+：$2.98000 |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 1.5 µH | ±15% | 5.67 A | 5.2A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
S1008R-102KFIXED IND 1UH 670MA 250 MOHM SMD |
625 | - |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 670 mA | - | Shielded | 250mOhm Max | 30 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-821KFIXED IND 820NH 715MA 220 MOHM |
1,441 |
1+：$5.06400 10+：$4.16240 25+：$3.85056 50+：$3.63088 100+：$3.45168 |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 820 nH | ±10% | 715 mA | - | Shielded | 220mOhm Max | 40 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
