Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

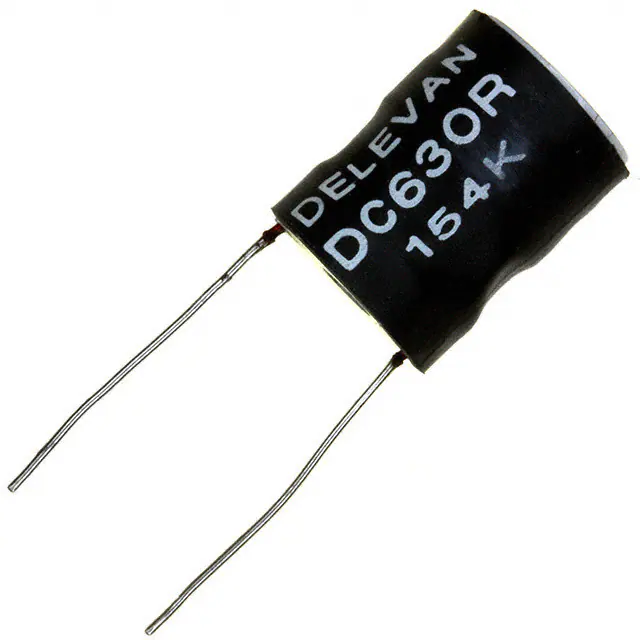

DC630R-154KFIXED IND 150UH 2.97A 111MOHM TH |
248 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2.97 A | 5.6A | Unshielded | 111mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
4590R-683KFIXED IND 68UH 3.355A 59 MOHM TH |
452 | - |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.355 A | 2.1A | Unshielded | 59mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-684KFIXED IND 680UH 1.08A 570MOHM TH |
420 | - |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.08 A | 670mA | Unshielded | 570mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-124KFIXED IND 120UH 2.43A 113MOHM TH |
231 | - |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2.43 A | 1.6A | Unshielded | 113mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
ER1840-22KSFIXED IND 4.7UH 745MA 210MOHM TH |
218 | - |
|
Datasheet | Military, MIL-PRF-39010/05, ER1840 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 745 mA | - | Unshielded | 210mOhm Max | 30 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
2474R-33LFIXED IND 470UH 590MA 1.03OHM TH |
408 | - |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 470 µH | ±15% | 590 mA | 290mA | Unshielded | 1.03Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
4590R-825KFIXED IND 8.2MH 320MA 6.44OHM TH |
387 | - |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 320 mA | 200mA | Unshielded | 6.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
2474R-41LFIXED IND 2.2MH 280MA 4.4 OHM TH |
5,138 | - |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 2.2 mH | ±15% | 280 mA | 140mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
4922R-47LFIXED IND 6.8MH 80MA 62 OHM SMD |
792 | - |
|
Datasheet | 4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±15% | 80 mA | 80mA | Unshielded | 62Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
SPD127R-154MFIXED IND 150UH 1.4A 320MOHM SMD |
1,466 | - |
|
Datasheet | SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.4 A | 1.4A | Shielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
