Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M83446/39-37FFIXED IND 10UH 354MA 1.6 OHM SMD |
406 | - |
|
Datasheet | Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 354 mA | - | Unshielded | 1.6Ohm Max | 50 @ 7.9MHz | 20MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
M83446/39-25FFIXED IND 1UH 634MA 500 MOHM SMD |
330 | - |
|
Datasheet | Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 634 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
8532R-28LFIXED IND 180UH 990MA 362MOHM SM |
527 | - |
|
Datasheet | 8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±15% | 990 mA | 480mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | 0.286" (7.26mm) |
|

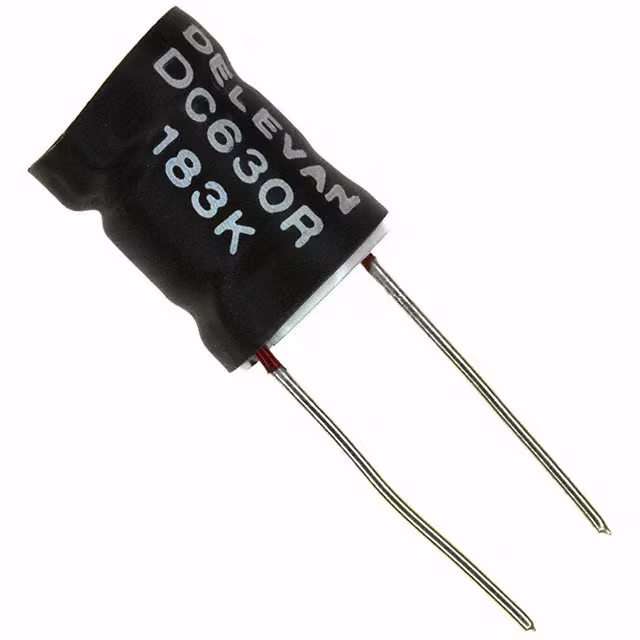

DC630R-183KFIXED IND 18UH 7A 20 MOHM TH |
350 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 7 A | 16A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

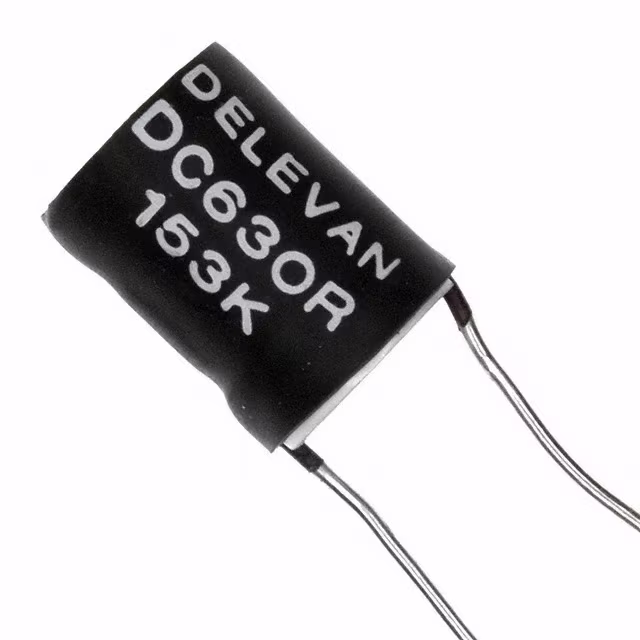

DC630R-153KFIXED IND 15UH 8.09A 15 MOHM TH |
486 | - |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 8.09 A | 17.5A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
M27/370-01FIXED IND 1UH 6.27A 9 MOHM SMD |
898 | - |
|
Datasheet | Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 6.27 A | 6.4A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
M27/370-13FIXED IND 10UH 3.27A 33 MOHM SMD |
579 | - |
|
Datasheet | Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 3.27 A | 2A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
|
M27/370-06FIXED IND 2.7UH 5.03A 14MOHM SMD |
392 | - |
|
Datasheet | Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±15% | 5.03 A | 3.9A | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
|
2500-76JFIXED IND 10MH 48MA 72 OHM TH |
2,876 | - |
|
Datasheet | Military, MIL-PRF-M15305, MS90541 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 mH | ±5% | 48 mA | - | Unshielded | 72Ohm Max | 80 @ 250kHz | 950kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
M27/370-32FIXED IND 390UH 680MA 770MOHM SM |
914 | - |
|
Datasheet | Military, MIL-PRF-27/370, MIL8532 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±15% | 680 mA | 320mA | Unshielded | 770mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.880" L x 0.330" W (22.35mm x 8.38mm) | 0.286" (7.26mm) |
