Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

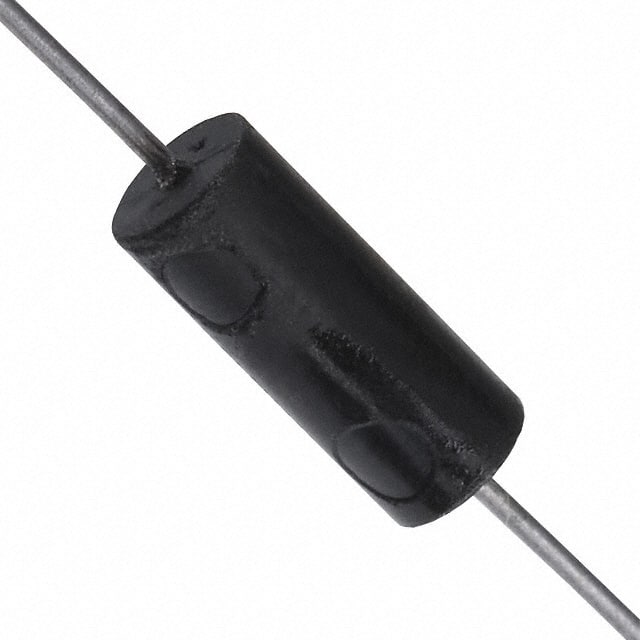

1641R-105KFIXED IND 1MH 70MA 17.5 OHM TH |
500 | - |
|
Datasheet | 1641R | Axial | Bulk | Active | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
SPD62R-122MFIXED IND 1.2UH 3.5A 80 MOHM SMD |
1,500 | - |
|
Datasheet | SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 3.5 A | 3.5A | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SPD62R-242MFIXED IND 2.4UH 2.8A 100MOHM SMD |
1,399 | - |
|
Datasheet | SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.4 µH | ±20% | 2.8 A | 2.8A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
1025R-64KFIXED IND 68UH 92MA 6.7 OHM TH |
500 | - |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±10% | 92 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-66KFIXED IND 82UH 88MA 7.3 OHM TH |
500 | - |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±10% | 88 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
SPD62R-124MFIXED IND 120UH 390MA 1.7OHM SMD |
342 | - |
|
Datasheet | SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 390 mA | 390mA | Shielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
1537-32KFIXED IND 6.8UH 450MA 500MOHM TH |
500 | - |
|
Datasheet | 1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
0925R-103KFIXED IND 10UH 106MA 4 OHM TH |
498 | - |
|
Datasheet | 0925R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 µH | ±10% | 106 mA | 106mA | Shielded | 4Ohm Max | 57 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-62KFIXED IND 56UH 100MA 5.7 OHM TH |
500 | - |
|
Datasheet | 1025 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±10% | 100 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1537R-76JFIXED IND 100UH 151MA 4.5 OHM TH |
500 | - |
|
Datasheet | 1537R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 100 µH | ±5% | 151 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
