Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1210R-103JFIXED IND 10UH 291MA 1.9 OHM SMD |
400 | - |
|
Datasheet | S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 291 mA | - | Shielded | 1.9Ohm Max | 40 @ 2.5MHz | 28MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|

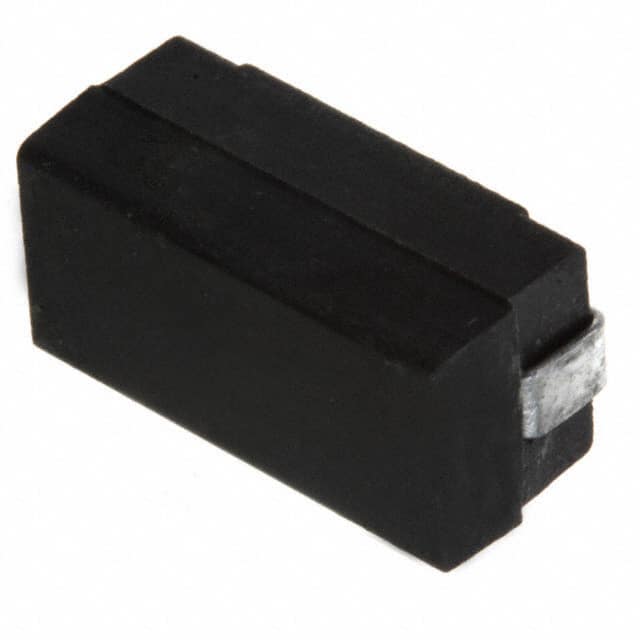

5022-102JFIXED IND 1UH 1.125A 290MOHM SMD |
200 | - |
|
Datasheet | 5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±5% | 1.125 A | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
1638-28HFIXED IND 1MH 82MA 33 OHM TH |
486 | - |
|
Datasheet | 1638 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±3% | 82 mA | - | Unshielded | 33Ohm Max | 65 @ 790kHz | 2.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
S1210-472JFIXED IND 4.7UH 402MA 1 OHM SMD |
500 | - |
|
Datasheet | S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±5% | 402 mA | - | Shielded | 1Ohm Max | 40 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-392JINDUCTOR SHIELDED 3.9UH SMD |
500 | - |
|
Datasheet | S12 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.9 µH | ±5% | 441 mA | - | Shielded | 830mOhm Max | 40 @ 7.9MHz | 42MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.128" L x 0.095" W (3.26mm x 2.41mm) | 0.101" (2.57mm) |
|
|
S1210R-271KFIXED IND 270NH 800MA 300MOHM SM |
500 | - |
|
Datasheet | S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 270 nH | ±10% | 800 mA | - | Shielded | 300mOhm Max | 40 @ 25MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-823KFIXED IND 82UH 137MA 8.5 OHM SMD |
478 | - |
|
Datasheet | S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±10% | 137 mA | - | Shielded | 8.5Ohm Max | 40 @ 2.5MHz | 8MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
S1210R-222JFIXED IND 2.2UH 470MA 730MOHM SM |
392 | - |
|
Datasheet | S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 470 mA | - | Shielded | 730mOhm Max | 40 @ 7.9MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
S1210-393KFIXED IND 39UH 179MA 5 OHM SMD |
275 | - |
|
Datasheet | S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±10% | 179 mA | - | Shielded | 5Ohm Max | 40 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
2150R-06KFIXED IND 1.5UH 1.05A 280MOHM TH |
154 | - |
|
Datasheet | 2150R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1.5 µH | ±10% | 1.05 A | - | Unshielded | 280mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
