Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2150-38KFIXED IND 39UH 264MA 2 OHM TH |
500 | - |
|
Datasheet | 2150 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 39 µH | ±10% | 264 mA | - | Unshielded | 2Ohm Max | 70 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
S1812R-562KFIXED IND 5.6UH 447MA 1 OHM SMD |
998 | - |
|
Datasheet | S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±10% | 447 mA | - | Shielded | 1Ohm Max | 40 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-154KFIXED IND 150UH 158MA 8 OHM SMD |
500 | - |
|
Datasheet | S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±10% | 158 mA | - | Shielded | 8Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

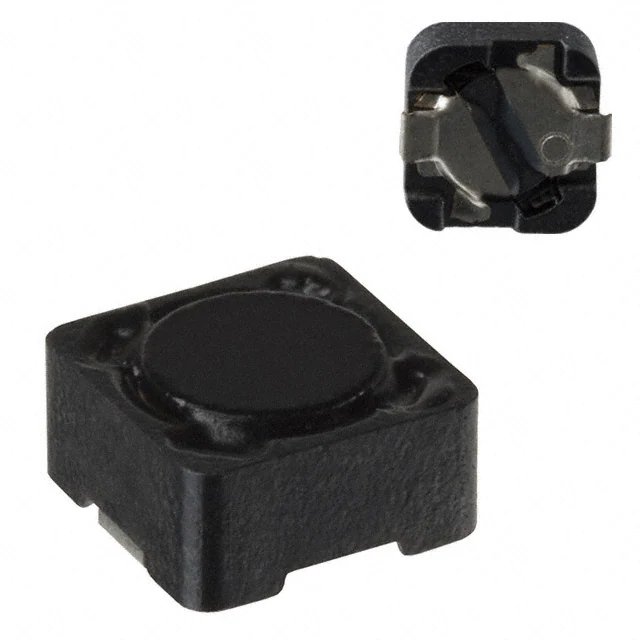

SPD73R-153MFIXED IND 15UH 1.59A 91 MOHM SMD |
1,737 | - |
|
Datasheet | SPD73R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.59 A | 2A | Shielded | 91mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
SPD74R-472MFIXED IND 4.7UH 3.5A 38 MOHM SMD |
1,583 | - |
|
Datasheet | SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.5 A | 3.5A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SPD74R-473MFIXED IND 47UH 1.3A 260 MOHM SMD |
968 | - |
|
Datasheet | SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.3A | Shielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SPD73R-334MFIXED IND 330UH 500MA 2.62OHM SM |
934 | - |
|
Datasheet | SPD73R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 500 mA | 500mA | Shielded | 2.62Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD74R-352MFIXED IND 3.5UH 3.7A 34 MOHM SMD |
900 | - |
|
Datasheet | SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | ±20% | 3.7 A | 3.7A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SPD73R-224MFIXED IND 220UH 570MA 1.65OHM SM |
800 | - |
|
Datasheet | SPD73R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 570 mA | 570mA | Shielded | 1.65Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
|
SPD73R-474MFIXED IND 470UH 380MA 4.18OHM SM |
750 | - |
|
Datasheet | SPD73R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 380 mA | 380mA | Shielded | 4.18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
