Gas Discharge Tube Arresters (GDT)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - DC Spark Over (Nom) | Impulse Discharge Current (8/20µs) | Tolerance | Number of Poles | Fail Short | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2054-23-SM-RPLFGDT 230V 5KA 3 POLE SMD |
2,595 | - |
|
Datasheet | 3-SMD Cylinder Square End | 2054 | Tape & Reel (TR) | Active | 230 V | 5000A (5kA) | ±20% | 3 | No | Surface Mount |
|
B88069X4301S102GDT 1500V 5KA 2 POLE TH |
4,256 | - |
|
Datasheet | Axial Cylinder | EF | Strip | Active | 1500 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
2029-09-SM-RPLFGDT 90V 20000A 2 POLE SMD |
29,124 |
1+：$1.68800 5+：$1.40160 10+：$1.29360 50+：$1.07312 100+：$0.98992 250+：$0.88954 |
|
Datasheet | 2-SMD Cylinder Square End | 2029 | Tape & Reel (TR) | Active | 90 V | 20000A (20kA) | ±20% | 2 | No | Surface Mount |
|
GTCS35-750M-R05GDT 75V 5KA 3 POLE SURFACE MOUNT |
255 | - |
|
Datasheet | 3-SMD Cylinder Square End | GT | Tray | Active | 75 V | 5000A (5kA) | ±20% | 3 | No | Surface Mount |
|
GT-SMD181240012-TRGDT 400V 1KA 2 POLE SMD |
112 | - |
|
Datasheet | 1812 (4532 Metric) | - | Tape & Reel (TR) | Active | 400 V | 1000A (1kA) | ±20% | 2 | No | Surface Mount |
|
GDT35-07-S1-RPGDT 70V 14KA 3 POLE SMD |
293 | - |
|
Datasheet | Cylinder No Lead, 3 Terminal | GDT35 | Tape & Reel (TR) | Active | 70 V | 14000A (14kA) | ±20% | 3 | No | User Defined |
|
CG775MSGDT 75V 1KA 2 POLE SURFACE MOUNT |
3,288 | - |
|
Datasheet | 2-SMD Cylinder Square End | CG7 | Tape & Reel (TR) | Active | 75 V | 1000A (1kA) | - | 2 | No | Surface Mount |
|
GT-RLSA80SSGDT 80V 1.5KA 2 POLE TH |
5,408 | - |
|
Datasheet | Radial | - | Bulk | Active | 80 V | 1500A (1.5kA) | ±15% | 2 | No | Through Hole |
|
|
GTCS35-750M-R05-2GDT 75V 5KA 3 POLE SURFACE MOUNT |
4,408 | - |
|
Datasheet | 3-SMD Cylinder Square End | GT | Tape & Reel (TR) | Active | 75 V | 5000A (5kA) | ±20% | 3 | No | Surface Mount |
|
B88069X5220T902GDT 230V 5KA 2 POLE SMD |
4,309 | - |
|
Datasheet | 2-SMD Cylinder Square End | M50 | Tape & Reel (TR) | Active | 230 V | 5000A (5kA) | ±20% | 2 | No | Surface Mount |
|
2036-09-SM-RPLFGDT 90V 10KA 3 POLE SMD |
8,062 | - |
|
Datasheet | 3-SMD Cylinder Square End | Mini-TRIGARD™ 2036-SM | Tape & Reel (TR) | Active | 90 V | 10000A (10kA) | ±20% | 3 | No | Surface Mount |
|

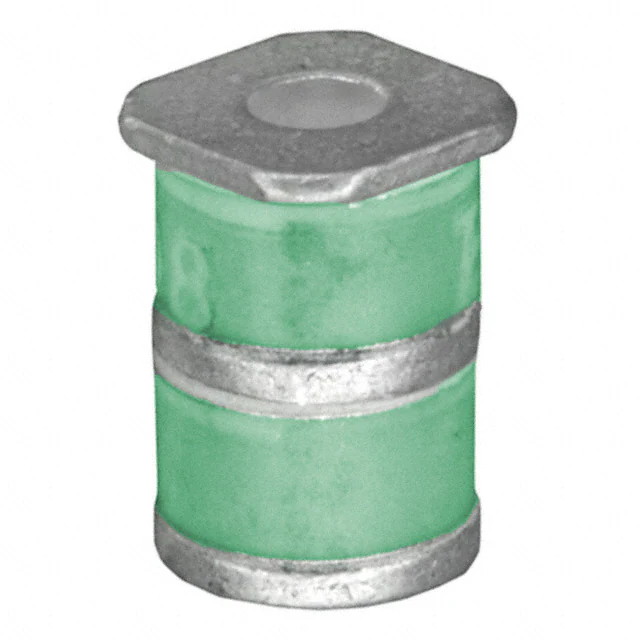

2036-15-SM-RPLFGDT 150V 10KA 3 POLE SMD |
3,590 | - |
|
Datasheet | 3-SMD Cylinder Square End | Mini-TRIGARD™ 2036-SM | Tape & Reel (TR) | Active | 150 V | 10000A (10kA) | ±20% | 3 | No | Surface Mount |
|
B88069X2930C102GDT 230V 5KA 2 POLE THROUGH HOLE |
5,330 | - |
|
Datasheet | Axial Cylinder | M51 | Bulk | Active | 230 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
B88069X2250S102GDT 230V 20000A 2 POLE THT |
5,924 |
1+：$1.94400 5+：$1.61440 10+：$1.48960 50+：$1.23568 100+：$1.14000 300+：$1.00264 500+：$0.94424 1000+：$0.87002 5000+：$0.73460 |
|
Datasheet | Axial Cylinder | A81 | Bulk | Active | 230 V | 20000A (20kA) | ±20% | 2 | No | Through Hole |
|
B88069X2880S102GDT 600V 20000A 2 POLE THT |
1,605 |
1+：$2.37600 5+：$1.97280 10+：$1.82080 50+：$1.51072 100+：$1.39360 300+：$1.22554 500+：$1.15410 1000+：$1.06329 5000+：$0.91086 |
|
Datasheet | Axial Cylinder | A81 | Bulk | Active | 600 V | 20000A (20kA) | ±20% | 2 | No | Through Hole |
|
|
2036-07-SM-RPLFGDT 75V 10KA 3 POLE SMD |
21,421 | - |
|
Datasheet | 3-SMD Cylinder Square End | Mini-TRIGARD™ 2036-SM | Tape & Reel (TR) | Active | 75 V | 10000A (10kA) | ±20% | 3 | No | Surface Mount |
|
B88069X3881S102GDT 75V 20000A 2 POLE THT |
6,264 |
1+：$2.03200 5+：$1.68480 10+：$1.55520 50+：$1.29024 100+：$1.19032 300+：$1.04686 500+：$0.98586 1000+：$0.90836 5000+：$0.77033 |
|
Datasheet | Axial Cylinder | A81 | Bulk | Active | 75 V | 20000A (20kA) | ±20% | 2 | No | Through Hole |
|
B88069X9991T203GDT 90V 2KA 3 POLE SURFACE MOUNT |
24,321 | - |
|
Datasheet | 2-SMD Cylinder Square End | TG | Tape & Reel (TR) | Active | 90 V | 2000A (2kA) | ±30% | 3 | - | Surface Mount |
|
B88069X2140S102GDT 800V 10000A 2 POLE THT |
6,592 |
1+：$1.68800 5+：$1.40160 10+：$1.29280 50+：$1.07280 100+：$0.98968 300+：$0.87048 500+：$0.81981 1000+：$0.75542 5000+：$0.66530 |
|
Datasheet | Axial Cylinder | A71 | Bulk | Active | 800 V | 10000A (10kA) | ±15% | 2 | No | Through Hole |
|
|
B88069X1380S102GDT 90V 20KA 2 POLE THROUGH HOLE |
8,860 | - |
|
Datasheet | Axial Cylinder | A80 | Bulk | Active | 90 V | 20000A (20kA) | ±20% | 2 | No | Through Hole |
