Gas Discharge Tube Arresters (GDT)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Voltage - DC Spark Over (Nom) | Impulse Discharge Current (8/20µs) | Tolerance | Number of Poles | Fail Short | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2051-09-SM-RPLFGDT 90V 2000A 2 POLE SMD |
71,690 |
1+：$0.69600 5+：$0.57760 10+：$0.53200 50+：$0.44160 100+：$0.40744 250+：$0.36624 500+：$0.33778 1000+：$0.31141 |
|
Datasheet | 1812 (4532 Metric) | 2051 | Tape & Reel (TR) | Active | 90 V | 2000A (2kA) | ±30% | 2 | No | Surface Mount |
|
|
2051-30-SM-RPLFGDT 300V 2000A 2 POLE SMD |
18,951 |
1+：$0.73600 5+：$0.61120 10+：$0.56400 50+：$0.46800 100+：$0.43192 250+：$0.38822 500+：$0.35805 1000+：$0.33010 |
|
Datasheet | 1812 (4532 Metric) | 2051 | Tape & Reel (TR) | Active | 300 V | 2000A (2kA) | ±25% | 2 | No | Surface Mount |
|
B88069X1023T253GDT 75V 3KA 2 POLE SURFACE MOUNT |
41,279 | - |
|
Datasheet | 1812 (4532 Metric) | S30 | Tape & Reel (TR) | Active | 75 V | 3000A (3kA) | ±30% | 2 | No | Surface Mount |
|
|
B88069X6071T253GDT 150V 2000A 2 POLE SMD |
31,145 |
1+：$1.00800 5+：$0.83840 10+：$0.77360 50+：$0.64192 100+：$0.59232 250+：$0.53235 500+：$0.49093 1000+：$0.45253 |
|
Datasheet | 1812 (4532 Metric) | S30 | Tape & Reel (TR) | Active | 150 V | 2000A (2kA) | ±30% | 2 | No | Surface Mount |
|
GTCS23-750M-R01-2GDT 75V 1KA 2 POLE SURFACE MOUNT |
829 | - |
|
Datasheet | 2-SMD Cylinder Square End | GT | Tape & Reel (TR) | Active | 75 V | 1000A (1kA) | ±20% | 2 | No | Surface Mount |
|
GTCC23-750M-R01-2GDT 75V 1KA 2 POLE SURFACE MOUNT |
10,378 | - |
|
Datasheet | 1812 (4532 Metric) | GT | Tape & Reel (TR) | Active | 75 V | 1000A (1kA) | ±20% | 2 | No | Surface Mount |
|
2035-25-SM-RPLFGDT 250V 5KA 2 POLE SMD |
2,802 | - |
|
Datasheet | 2-SMD Cylinder Square End | 2035-SM | Tape & Reel (TR) | Active | 250 V | 5000A (5kA) | ±15% | 2 | No | Surface Mount |
|
|
2035-09-SM-RPLFGDT 90V 5KA 2 POLE SURFACE MOUNT |
2,124 | - |
|
Datasheet | 2-SMD Cylinder Square End | 2035-SM | Tape & Reel (TR) | Active | 90 V | 5000A (5kA) | ±20% | 2 | No | Surface Mount |
|
B88069X4231S102GDT 3000V 2000A 2 POLE THT |
564 |
1+：$1.49600 5+：$1.23840 10+：$1.14240 50+：$0.94800 100+：$0.87464 250+：$0.78595 500+：$0.72461 1000+：$0.66777 5000+：$0.55116 |
|
Datasheet | Axial Cylinder | EM | Strip | Active | 3000 V | 2000A (2kA) | ±20% | 2 | No | Through Hole |
|
SG75GDT 75V 2KA 2 POLE SURFACE MOUNT |
11,080 | - |
|
Datasheet | 1812 (4532 Metric) | SG | Tape & Reel (TR) | Active | 75 V | 2000A (2kA) | - | 2 | No | Surface Mount |
|
SL1002A090SMGDT 90V 5KA 2 POLE SURFACE MOUNT |
16,737 | - |
|
Datasheet | 2-SMD Cylinder Square End | SL1002A | Tape & Reel (TR) | Active | 90 V | 5000A (5kA) | - | 2 | No | Surface Mount |
|
2027-07-SM-RPLFGDT 75V 10000A 2 POLE SMD |
5,351 |
1+：$1.27200 5+：$1.05280 10+：$0.97120 50+：$0.80560 100+：$0.74328 250+：$0.66800 |
|
Datasheet | 2-SMD Cylinder Square End | 2027-SM | Tape & Reel (TR) | Active | 75 V | 10000A (10kA) | ±20% | 2 | No | Surface Mount |
|
2031-23T-SM-RPLFGDT 185V 1KA 2 POLE SMD |
3,951 | - |
|
Datasheet | 2-SMD Cylinder Square End | 2031-xxT-SM | Tape & Reel (TR) | Active | 185 V | 1000A (1kA) | - | 2 | No | Surface Mount |
|
|
SG90GDT 90V 2KA 2 POLE SURFACE MOUNT |
2,817 | - |
|
Datasheet | 1812 (4532 Metric) | SG | Tape & Reel (TR) | Active | 90 V | 2000A (2kA) | - | 2 | No | Surface Mount |
|
B88069X0780S102GDT 540V 5000A 2 POLE THT |
2,239 |
1+：$1.52800 5+：$1.26720 10+：$1.16960 50+：$0.97072 100+：$0.89544 300+：$0.78768 500+：$0.74184 1000+：$0.68362 5000+：$0.59600 |
|
Datasheet | Axial Cylinder | EC | Strip | Active | 540 V | 5000A (5kA) | - | 2 | No | Through Hole |
|
SH75GDT 75V 5KA 2 POLE SURFACE MOUNT |
7,056 | - |
|
Datasheet | 2-SMD, Square End Block | SH | Tape & Reel (TR) | Active | 75 V | 5000A (5kA) | - | 2 | No | Surface Mount |
|
B88069X0180S102GDT 75V 5KA 2 POLE THROUGH HOLE |
17,819 | - |
|
Datasheet | Axial Cylinder | EC | Bulk | Active | 75 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|
|
B88069X0720S102GDT 90V 5KA 2 POLE THROUGH HOLE |
4,217 | - |
|
Datasheet | Axial Cylinder | EC | Bulk | Active | 90 V | 5000A (5kA) | ±20% | 2 | No | Through Hole |
|

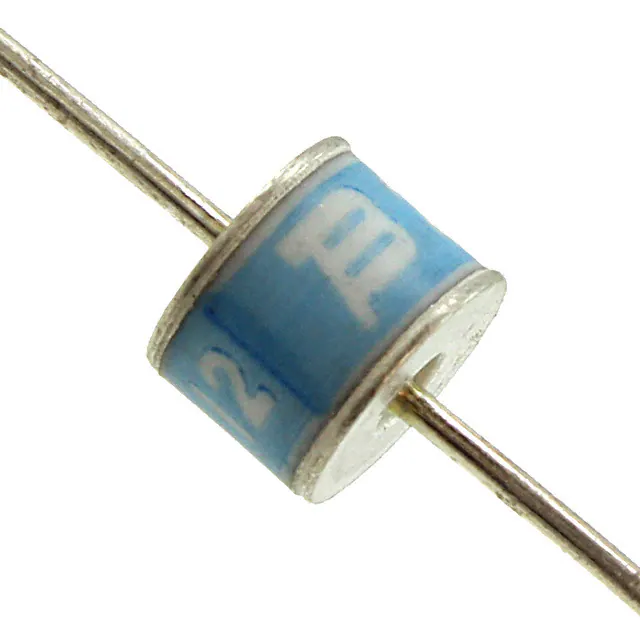

2027-07-BLFGDT 75V 25000A 2 POLE THT |
4,393 |
1+：$1.46400 5+：$1.21600 10+：$1.12160 50+：$0.93088 100+：$0.85880 300+：$0.75546 500+：$0.71152 1000+：$0.65572 5000+：$0.54123 |
|
Datasheet | Axial Cylinder | 2027 | Bulk | Active | 75 V | 10000A (10kA) | ±20% | 2 | No | Through Hole |
|
B88069X1513T303GDT 500V 500A 2 POLE SMD |
8,376 |
1+：$1.75200 5+：$1.45120 10+：$1.33920 50+：$1.11088 100+：$1.02480 250+：$0.92083 500+：$0.84891 1000+：$0.79976 |
|
Datasheet | 1206 (3216 Metric) | S20 | Tape & Reel (TR) | Active | 500 V | 500A | ±20% | 2 | - | Surface Mount |
