LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

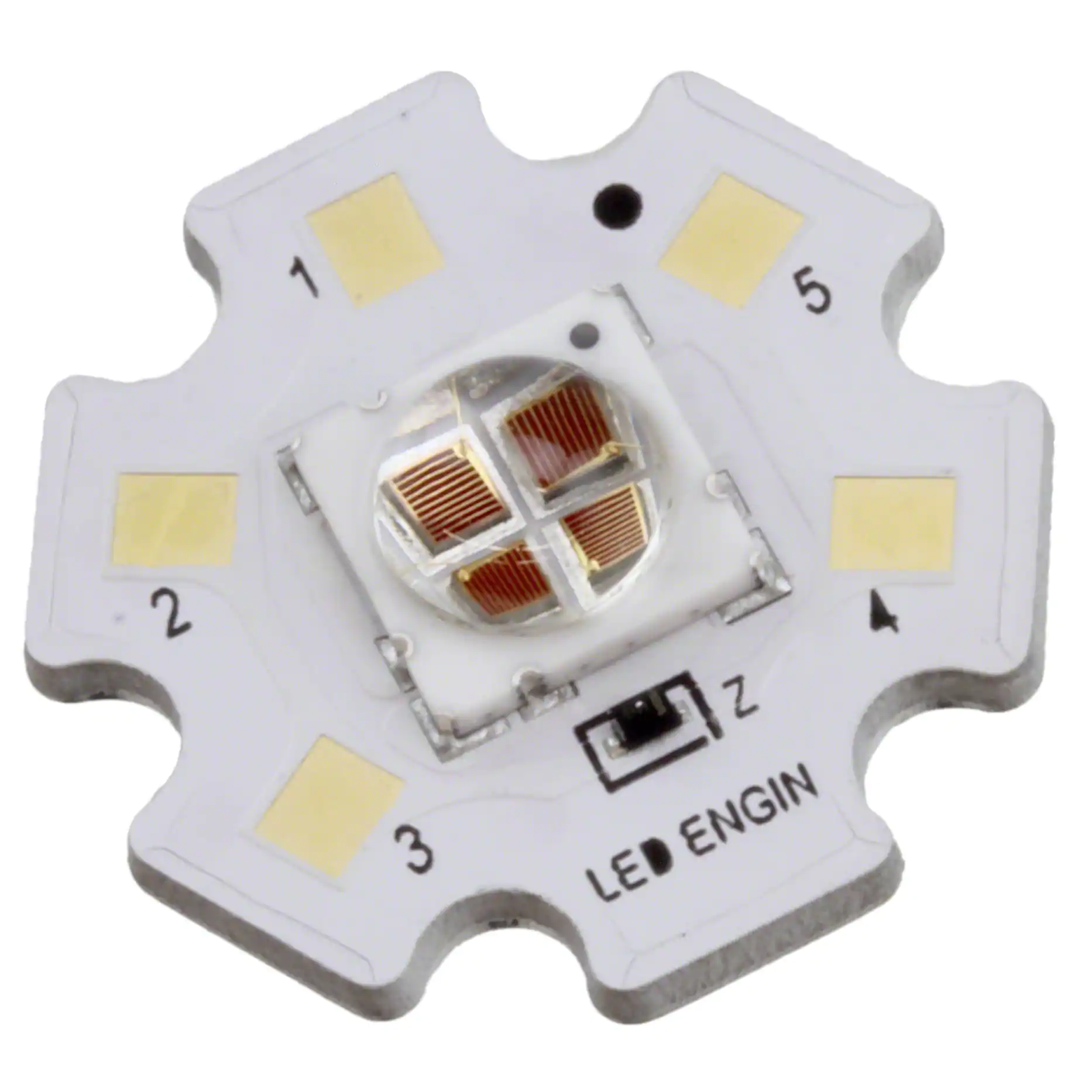

LZ4-40R108-0000LED MOD LZ4 RED STARBOARD |
190 |
1+：$13.04000 80+：$8.71180 160+：$8.35325 560+：$7.83974 1040+：$7.63814 |
|
Datasheet | LZ4 | Tray | Active | LED Module | Red | - | 623nm | Starboard | 456lm (356lm ~ 556lm) | 700mA | 25°C | 10V | 65 lm/W | 1A | - | 100° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|

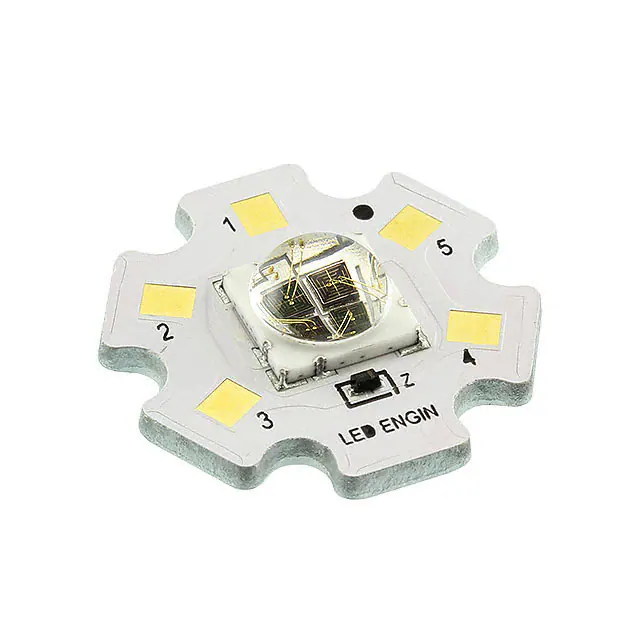

LZ4-40B208-0000LED MOD LZ4 BLUE STARBOARD |
116 | - |
|
Datasheet | LZ4 | Tray | Active | LED Module | Blue | - | 460nm | Starboard | 161lm (93lm ~ 228lm) | 700mA | 25°C | 12.8V | 18 lm/W | 1A | - | 100° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
LZC-B3MD07-0000_G2LED MOD LZC RGBW STARBRD 5500K |
45 |
1+：$48.69600 10+：$40.40640 100+：$35.63296 |
|
Datasheet | LED ENGIN LuxiGen® | Tray | Active | LED Module | Red, Green, Blue, White (RGBW) | - | - | Starboard | 340lm Red, 625lm Green, 89lm Blue, 635lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | - | - | - | - | - | - | - | 27.60mm Dia | 6.70mm | 8.20mm Dia | Domed |
|
|
LZ4-V0UBH0-00U4LED MOD ROUND |
289 | - |
|
Datasheet | - | Tray | Active | LED Module | - | - | - | Round | - | 700mA | - | - | - | - | - | - | - | 19.90mm Dia | 5.40mm | 6.20mm Dia | Domed |
|
|
LZ4-V0UBH0-00U8LED MOD ROUND |
281 | - |
|
Datasheet | - | Tray | Active | LED Module | - | - | - | Round | - | 700mA | - | - | - | - | - | - | - | 19.90mm Dia | 5.40mm | 6.20mm Dia | Domed |
|
|
KW DMLQ33.SG-Z5L8-EBVFFCBB46-8E8G-350-SKW DMLQ33.SG-Z5L8-EBVFFCBB46-8E8 |
4,000 | - |
|
Datasheet | SYNIOS® P2720 | Tape & Reel (TR) | Active | LED Module | White | - | - | Rectangle | 151lm (112lm ~ 190lm) | 350mA | 25°C | 3.125V | 138 lm/W | 700mA | - | 120° | - | 2.75mm L x 2.00mm W | 0.60mm | - | Flat |
|
|
KRTBID2LM31.31-C5D7-JW+V9A5-D8+R5S7-3ZKRTBID2LM31.31-C5D7-JW+V9A5-D8+R |
2,000 | - |
|
Datasheet | OSIRE® E3731i | Tape & Reel (TR) | Active | LED Engine | Red, Green, Blue (RGB) | - | 626nm Red, 533nm Green, 462nm Blue | Rectangle | - | 10mA | 25°C | 5V | - | 50mA | - | 120° | - | 3.70mm L x 3.15mm W | 0.65mm | - | Flat |
|
|
GW KADEBA.CM-PTQS-35S3-150-T05GW KADEBA.CM-PTQS-35S3-150-T05 |
250 | - |
|
Datasheet | SOLERIQ® S 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 790lm (610lm ~ 970lm) | 150mA | 25°C | 34.5V | 153 lm/W | 460mA | 90 | 120° | - | 13.35mm L x 13.35mm W | 1.50mm | 5.60mm Dia | Flat |
|
|
GW KADEBA.CM-PTQS-30S3-150-T05GW KADEBA.CM-PTQS-30S3-150-T05 |
250 | - |
|
Datasheet | SOLERIQ® S 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 790lm (610lm ~ 970lm) | 150mA | 25°C | 34.5V | 153 lm/W | 460mA | 90 | 120° | - | 13.35mm L x 13.35mm W | 1.50mm | 5.60mm Dia | Flat |
|
|
GW KADEBA.CM-PTQS-40S3-150-T05GW KADEBA.CM-PTQS-40S3-150-T05 |
250 | - |
|
Datasheet | SOLERIQ® S 6 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 790lm (610lm ~ 970lm) | 150mA | 25°C | 34.5V | 153 lm/W | 460mA | 90 | 120° | - | 13.35mm L x 13.35mm W | 1.50mm | 5.60mm Dia | Flat |
