LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LE D P3MQ-HTJR-R-0-F00LED MOD OSRAM OSTAR BLUE RECT |
1,567 | - |
|
Datasheet | OSRAM OSTAR® Projection Power | Tray | Active | LED Module | Blue | - | 440nm (435nm ~ 445nm) | Rectangle | 47650mW (39000mW ~ 56300mW) | 6A | 25°C | 21V | - | 10A | - | 120° | With Connector | 27.00mm L x 15.50mm W | 1.90mm | 8.20mm L x 4.85mm W | Flat |
|
|
LE B P3MQ-HRJP-23-0-F00LED MOD OSRAM OSTAR BLUE RECT |
1,678 | - |
|
Datasheet | OSRAM OSTAR® Projection Power | Tray | Active | LED Module | Blue | - | 456nm (452nm ~ 460nm) | Rectangle | 40700mW (33000mW ~ 48400mW) | 6A | 25°C | 21V | - | 10A | - | 120° | With Connector | 27.00mm L x 15.50mm W | 1.90mm | 8.20mm L x 4.85mm W | Flat |
|
|
KT CULPM1.13-NQNU-34-0-1400-R18LOW-PROFILE, ULTRA-HIGH BRIGHTNE |
1,981 | - |
|
Datasheet | OSRAM OSTAR® Projection Compact | Tape & Reel (TR) | Last Time Buy | LED Module | Green | - | 529nm (523nm ~ 535nm) | Square | 377lm (304lm ~ 450lm) | 1.4A | 25°C | 2.8V | 96 lm/W | 5A | - | 110° | - | 4.00mm L x 4.00mm W | 0.76mm | 1.59mm L x 1.25mm W | Flat |
|
LZ1-10B202-0000LED MOD LZ1 BLUE STARBOARD |
2,875 | - |
|
Datasheet | LZ1 | Tray | Active | LED Module | Blue | - | 465nm | Starboard | 28lm (24lm ~ 31lm) | 1A | 25°C | 3.6V | 8 lm/W | 1.2A | - | 80° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
LZ4-40CW08-0065LED MOD LZ4 WHT STARBOARD 6500K |
3,401 | - |
|
Datasheet | LZ4 | Tray | Active | LED Module | White, Cool | 6500K | - | Starboard | 890lm (695lm ~ 1085lm) | 700mA | 25°C | 12.6V | 101 lm/W | 1A | 75 (Typ) | 90° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
|
LZ4-V0UBH0-00U5LED MOD ROUND |
3,974 | - |
|
Datasheet | - | Tray | Active | LED Module | - | - | - | Round | - | 700mA | - | - | - | - | - | - | - | 19.90mm Dia | 5.40mm | 6.20mm Dia | Domed |
|
LZ1-10R102-0000LED MOD LZ1 RED STARBOARD |
1,503 | - |
|
Datasheet | LZ1 | Tray | Active | LED Module | Red | - | 623nm | Starboard | 132lm (117lm ~ 146lm) | 1A | 25°C | 2.6V | 51 lm/W | 1.2A | - | 76° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
LZ1-10R202-0000LED MOD LZ1 RED STARBOARD |
1,315 | - |
|
Datasheet | LZ1 | Tray | Active | LED Module | Red | - | 660nm | Starboard | - | 1A | 25°C | 2.5V | - | 1.2A | - | 90° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|

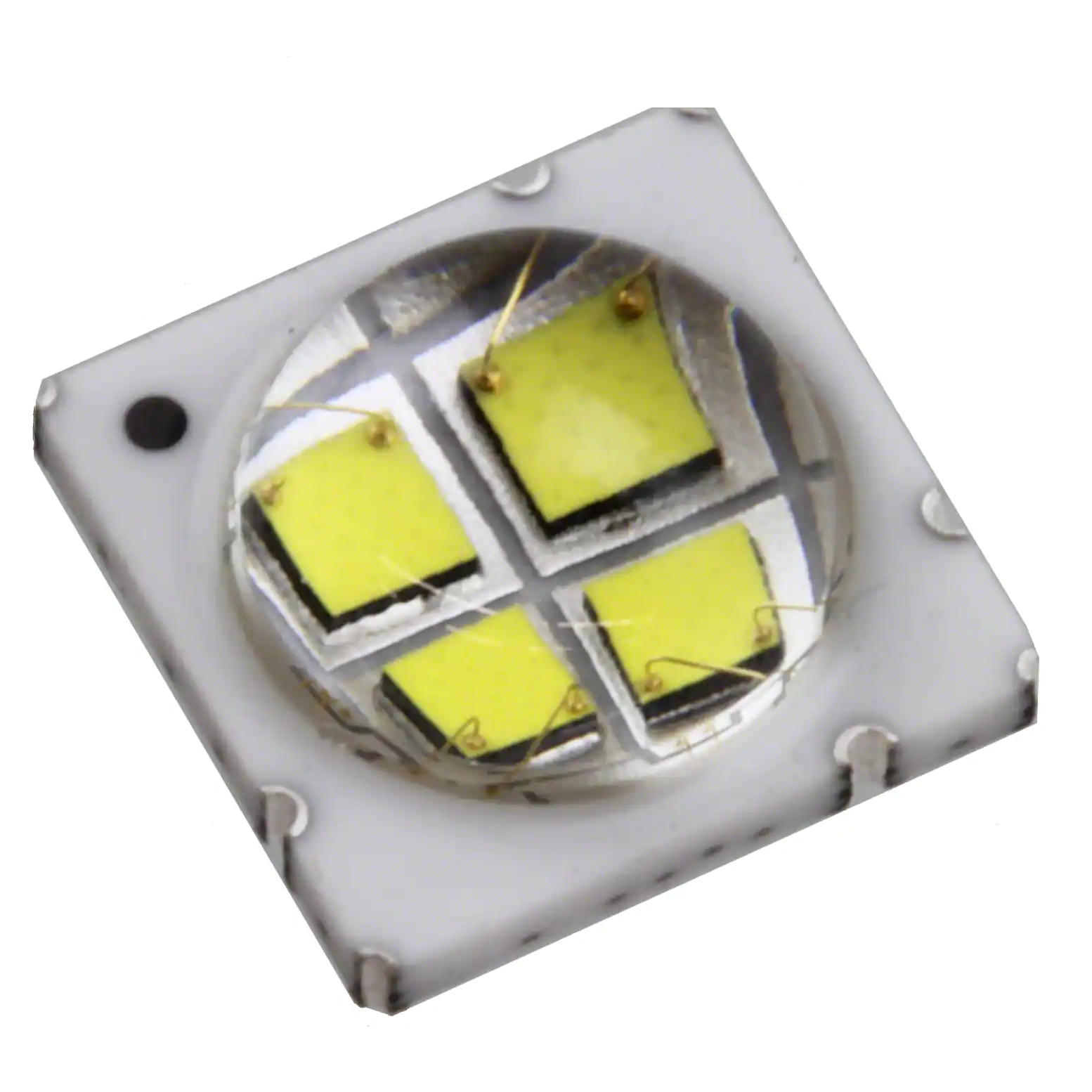

LZ4-40CW08-0055LED MOD LZ4 WHT STARBOARD 5500K |
4,177 | - |
|
Datasheet | LZ4 | Tray | Active | LED Module | White, Cool | 5500K | - | Starboard | 890lm (695lm ~ 1085lm) | 700mA | 25°C | 12.6V | 101 lm/W | 1A | 75 (Typ) | 90° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
|
LZ4-40R308-0000LED MOD LZ4 RED STARBOARD |
4,696 | - |
|
Datasheet | LZ4 | Tray | Active | LED Module | Red | - | 740nm | Starboard | 200mW (160mW ~ 240mW) | 700mA | 25°C | 9V | - | 1A | - | 95° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
