LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

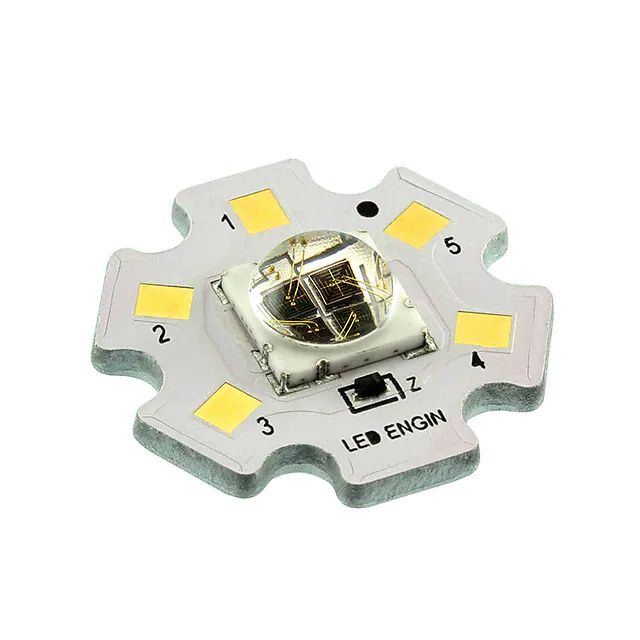

LZ4-40G108-0000LED MOD LZ4 GREEN STARBOARD |
2,161 | - |
|
Datasheet | LZ4 | Tray | Obsolete | LED Module | Green | - | 525nm | Starboard | 657lm (445lm ~ 868lm) | 700mA | 25°C | 14.4V | 65 lm/W | 1A | - | 100° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
GW KAHLB1.CM-SUTQ-27S3-T02LED COB SOLERIQ WHT SQ 2700K |
1,529 | - |
|
Datasheet | SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 2945lm (2590lm ~ 3300lm) | 700mA | 85°C | 46.5V | 90 lm/W | 1A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
|
LZ4-01R308-000067000 |
1,949 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZ4-01R708-000067000 |
3,374 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZ4-01R608-000067000 |
2,065 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZ4-40G108-0G23LED MOD LZ4 GREEN STARBOARD |
1,495 | - |
|
Datasheet | LZ4 | Tray | Active | LED Module | Green | - | 525nm | Starboard | 657lm (445lm ~ 868lm) | 700mA | 25°C | 14.4V | 65 lm/W | 1A | - | 100° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
|
LZ4-40A108-0000LED MOD LZ4 AMBER STARBOARD |
2,778 | - |
|
Datasheet | LZ4 | Tray | Active | LED Module | Amber | - | 590nm | Starboard | 292lm (228lm ~ 356lm) | 700mA | 25°C | 9V | 46 lm/W | 1A | - | 95° | - | 19.90mm Dia | 5.90mm | 6.20mm Dia | Domed |
|
LZ4-40GW08-0027LED MOD LZ4 WHT STARBOARD 2700K |
4,024 | - |
|
Datasheet | LZ4 | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 401lm (356lm ~ 445lm) | 700mA | 25°C | 13.2V | 43 lm/W | 1A | 98 (Typ) | 105° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
|
LZ4-40GW08-0028LED MOD LZ4 WHT STARBOARD 2850K |
3,697 | - |
|
Datasheet | LZ4 | Tray | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 456lm (356lm ~ 556lm) | 700mA | 25°C | 12.9V | 50 lm/W | 1A | 98 | 105° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
|
GW KAHLB1.CM-TPTR-35S3-T02LED COB SOLERIQ WHT SQ 3500K |
1,416 | - |
|
Datasheet | SOLERIQ® S 19 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Square | 3195lm (2800lm ~ 3590lm) | 700mA | 85°C | 46.5V | 98 lm/W | 1A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.40mm | 17.80mm Dia | Flat |
