Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-18R62DSWITCH DETECTOR SPST-NC 0.01A 5V |
1,999 | - |
|
Datasheet | ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 31gf | - | 0.122" (3.1mm) | - | - | - | -10°C ~ 60°C |
|
ESE-13H05DSWITCH DETECTOR SPST-NO 0.01A 5V |
1,685 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-105SV1SWITCH DETECT SPST-NO 0.05A 20V |
3,616 | - |
|
Datasheet | ESE105 | Bulk | Obsolete | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 40gf | - | - | - | - | - | -10°C ~ 70°C |
|

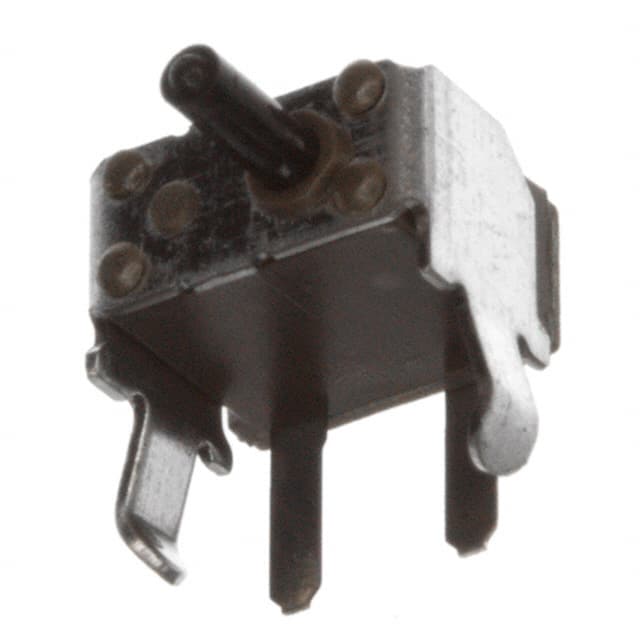

ESE-105SH1SWITCH DETECT SPST-NO 0.05A 20V |
1,661 | - |
|
Datasheet | ESE105 | Bulk | Obsolete | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 40gf | - | - | - | - | - | -10°C ~ 70°C |
|
ESE-2101BTSWITCH DETECTOR SPST-NO 0.01A 5V |
1,756 | - |
|
Datasheet | ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | Board Guide | 31gf | - | 0.138" (3.5mm) | - | - | - | - |
|
ESE-11SF1ASWITCH DETECTOR SPST-NO 0.01A 5V |
3,541 | - |
|
Datasheet | ESE11 | Bulk | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Panel Mount, Snap-In | Quick Connect - 0.062" (1.5mm) | - | - | 35gf | - | 0.313" (7.95mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MV1SWITCH DETECTOR SPST-NO 0.01A 5V |
3,641 | - |
|
Datasheet | ESE22 | Bulk | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.232" (5.9mm) | - | - | - | -10°C ~ 70°C |
|
ESE-2121ATSWITCH DETECTOR SPST-NO 0.01A 5V |
1,799 | - |
|
Datasheet | ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | - | 30gf | - | 0.138" (3.5mm) | - | - | - | -10°C ~ 60°C |
|
ESE-11MV7SWITCH DETECTOR SPST-NO 0.01A 5V |
2,644 | - |
|
Datasheet | ESE11 | Bulk | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | - | - | - | - | -10°C ~ 70°C |
|
ESE-22MH23SWITCH DETECTOR SPST-NO 0.01A 5V |
3,714 | - |
|
Datasheet | ESE22 | Bulk | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
