Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-22MV21TSWITCH DETECTOR SPST-NO 0.01A 5V |
101,960 | - |
|
Datasheet | ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.232" (5.9mm) | - | - | - | -10°C ~ 70°C |
|

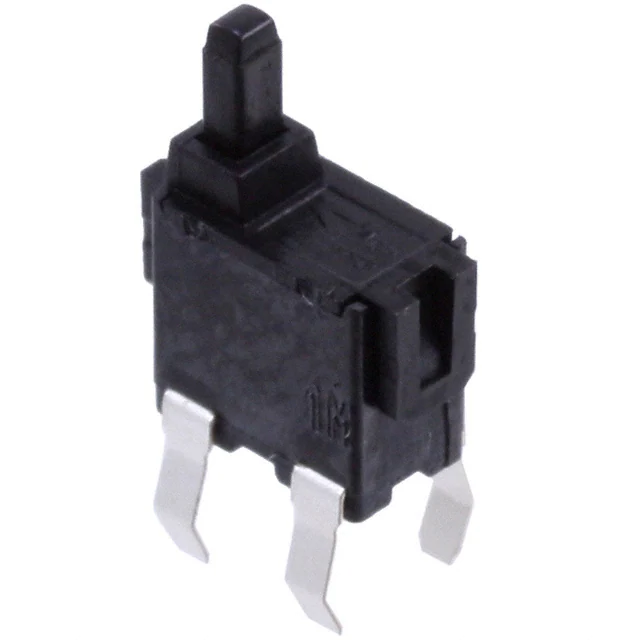

ESE-11SV1SWITCH DETECTOR SPST-NO 0.01A 5V |
33,086 |
1+：$0.34400 10+：$0.28160 25+：$0.26080 50+：$0.24640 100+：$0.23280 250+：$0.21594 500+：$0.20400 4000+：$0.17199 8000+：$0.16246 |
|
Datasheet | ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|

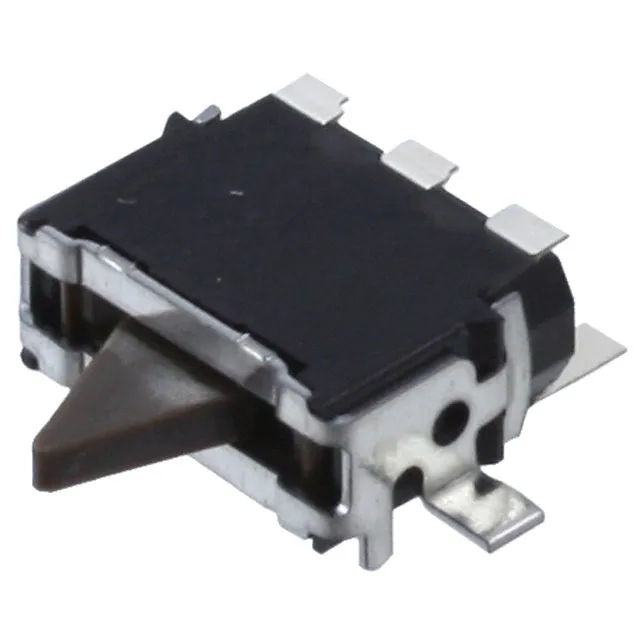

ESE-24MH1TSWITCH DETECTOR SPDT 0.01A 5V |
11,595 | - |
|
Datasheet | ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|

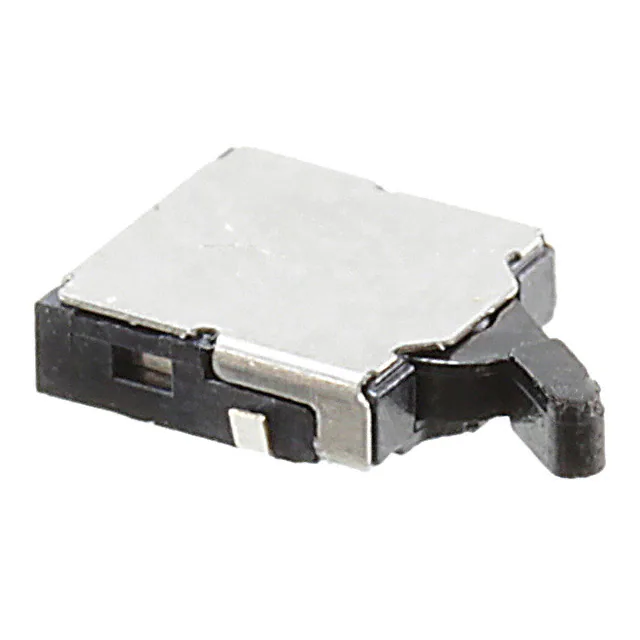

ESE-18R11BSWITCH DETECTOR SPST-NO 0.01A 5V |
25,913 |
1+：$0.41600 10+：$0.34400 25+：$0.31872 50+：$0.30112 100+：$0.28440 250+：$0.26384 500+：$0.24926 1000+：$0.23548 |
|
Datasheet | ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

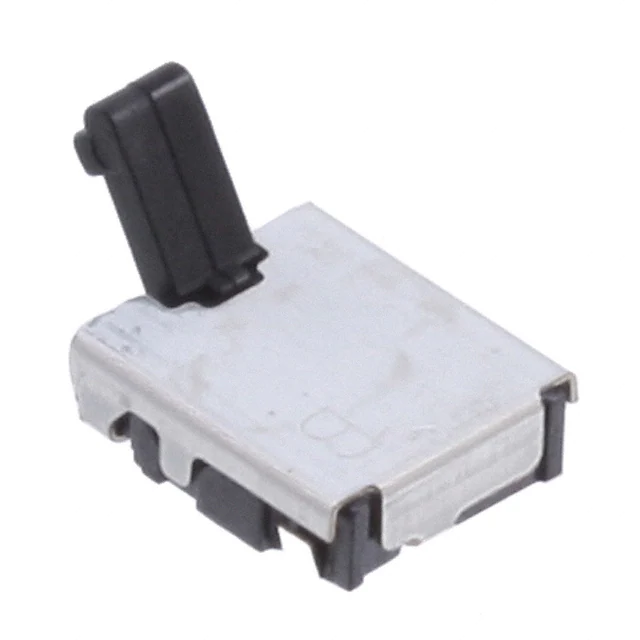

ESE-13V01DSWITCH DETECTOR SPST-NO 0.01A 5V |
92,017 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-16J001SWITCH DETECTOR SPST-NO 0.01A 5V |
79,887 |
1+：$0.84800 10+：$0.72320 25+：$0.67264 100+：$0.59952 250+：$0.55542 500+：$0.52482 1000+：$0.49682 |
|
Datasheet | ESE16 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | SMD (SMT) Tab | - | - | 25gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|

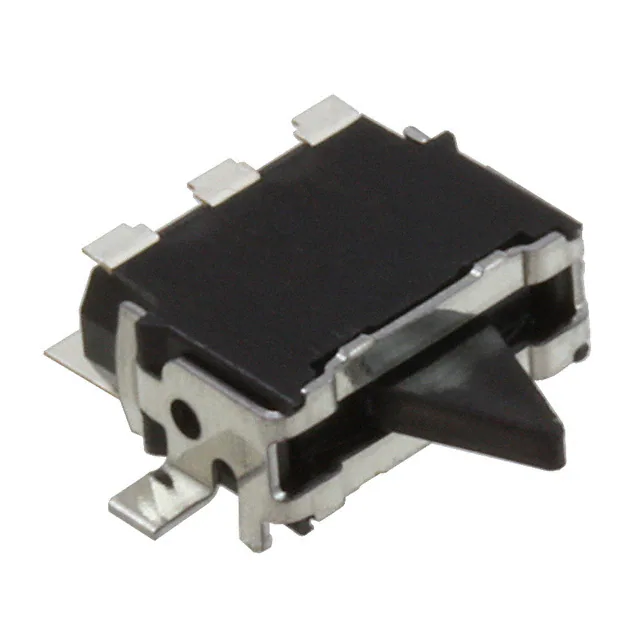

ESE-24CMH9TSWITCH DETECTOR SPDT 0.01A 5V |
4,572 |
1+：$0.60000 10+：$0.51280 25+：$0.47776 100+：$0.42632 250+：$0.39491 500+：$0.37293 |
|
Datasheet | ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -40°C ~ 85°C |
|
ESE-24MV1TSWITCH DETECTOR SPDT 0.01A 5V |
3,021 | - |
|
Datasheet | ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 36gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|
ESE-23F101SWITCH DETECTOR SPDT 0.01A 5V |
16,786 | - |
|
Datasheet | ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|

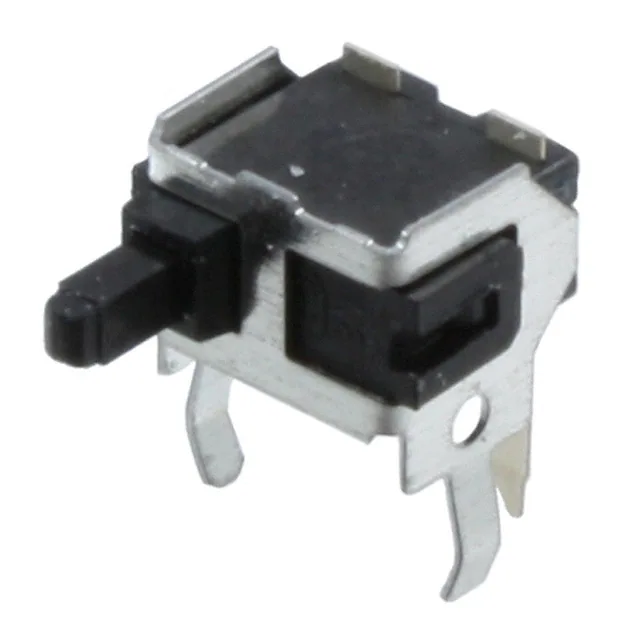

ESE-11SH2CSWITCH DETECTOR SPST-NO 0.01A 5V |
14,657 | - |
|
Datasheet | ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
