Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-13V01BSWITCH DETECTOR SPST-NO 0.01A 5V |
22,298 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|

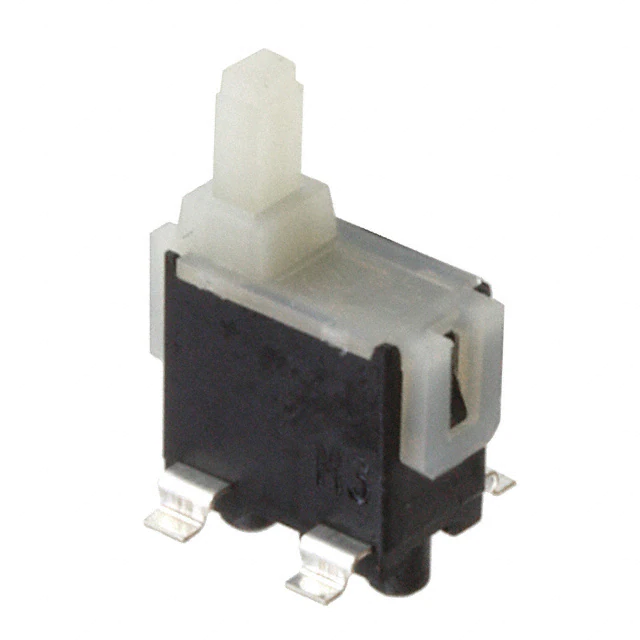

ESE-11MV13SWITCH DETECTOR SPST-NO 0.01A 5V |
1,977 | - |
|
Datasheet | ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|

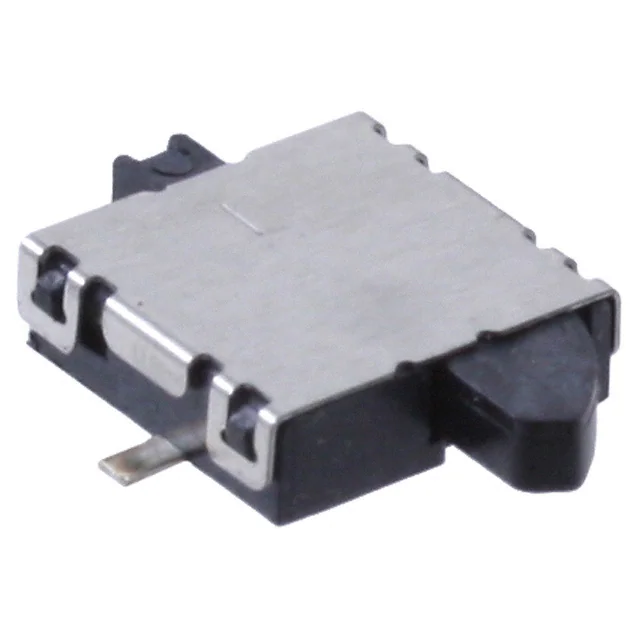

ESE-31L11TSWITCH DETECTOR SPST-NO 0.01A 5V |
2,696 | - |
|
Datasheet | ESE31 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | 20 V | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 40gf | - | 0.091" (2.3mm) | - | - | - | -10°C ~ 70°C |
|

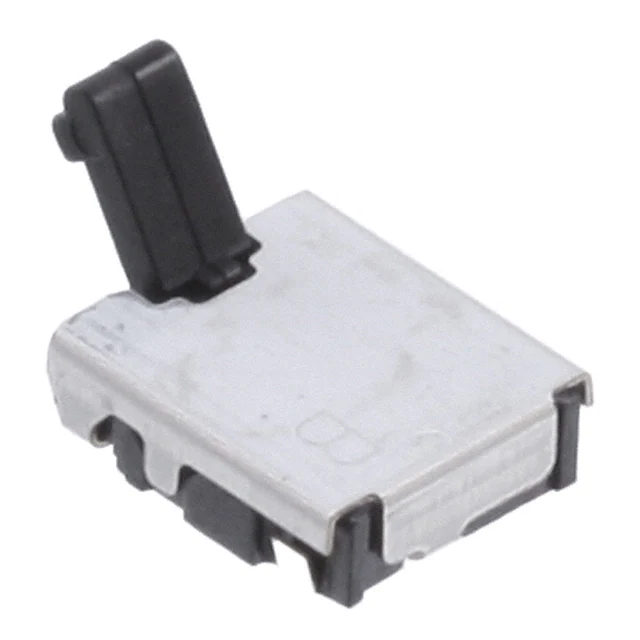

ESE-13V01ASWITCH DETECTOR SPST-NO 0.01A 5V |
46,074 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|

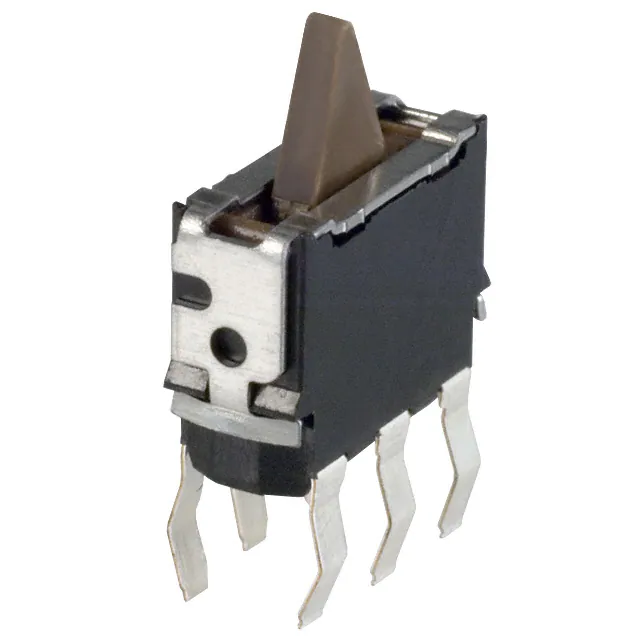

ESE-24SV3SWITCH DETECTOR SPDT 0.01A 5V |
2,649 | - |
|
Datasheet | ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13H01DSWITCH DETECTOR SPST-NO 0.01A 5V |
5,829 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-24SH1SWITCH DETECTOR SPDT 0.01A 5V |
3,823 | - |
|
Datasheet | ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13V05BSWITCH DETECTOR SPST-NO 0.01A 5V |
1,406 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-23F001SWITCH DETECTOR SPDT 0.01A 5V |
3,959 | - |
|
Datasheet | ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
ESE-58R61BSWITCH DETECTOR SPST-NC 0.01A 5V |
16,036 | - |
|
Datasheet | ESE58 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 30gf | - | 0.079" (2.0mm) | - | - | - | -10°C ~ 60°C |
