Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-11SH1CSWITCH DETECTOR SPST-NO 0.01A 5V |
2,062 | - |
|
Datasheet | ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MH52SWITCH DETECTOR SPST-NO 0.01A 5V |
11,037 | - |
|
Datasheet | ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.055" (1.4mm) | - | - | - | -10°C ~ 70°C |
|
ESE-18L11ASWITCH DETECTOR SPST-NO 0.01A 5V |
5,190 | - |
|
Datasheet | ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18L11CSWITCH DETECTOR SPST-NO 0.01A 5V |
6,563 | - |
|
Datasheet | ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

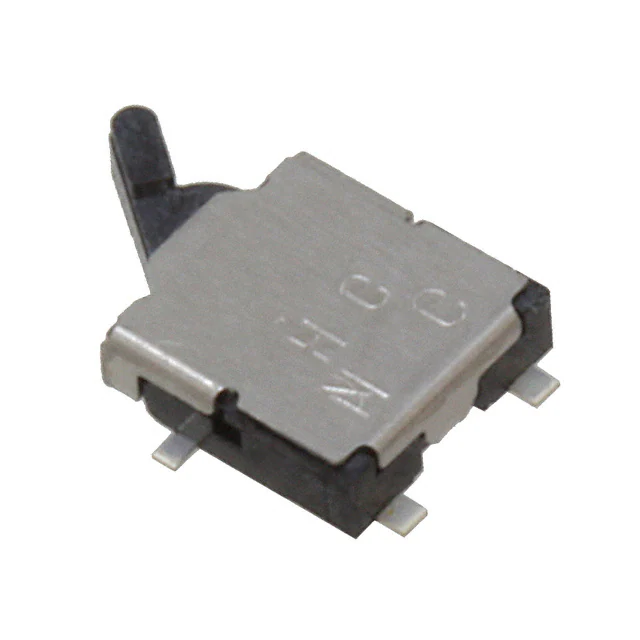

ESE-18R11CSWITCH DETECTOR SPST-NO 0.01A 5V |
4,575 | - |
|
Datasheet | ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-13V01CSWITCH DETECTOR SPST-NO 0.01A 5V |
6,934 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-11MH2SWITCH DETECTOR SPST-NO 0.01A 5V |
1,900 | - |
|
Datasheet | ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 36gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13H01CSWITCH DETECTOR SPST-NO 0.01A 5V |
8,365 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-13H01BSWITCH DETECTOR SPST-NO 0.01A 5V |
7,075 | - |
|
Datasheet | ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|

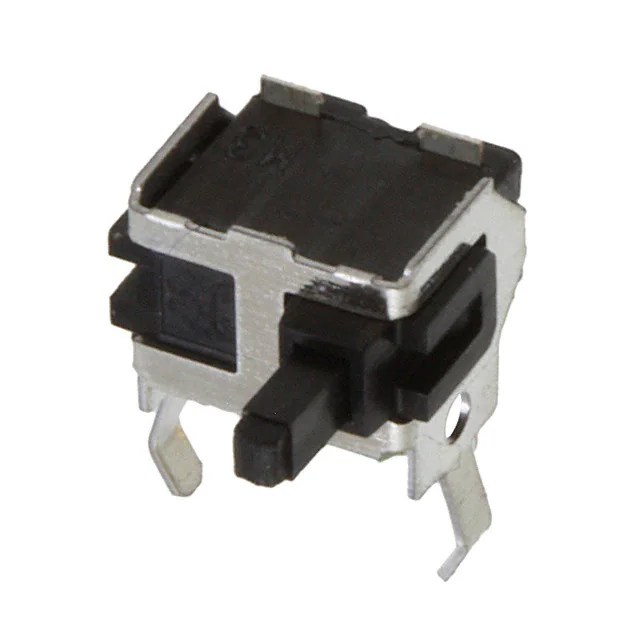

ESE-11SH5SWITCH DETECTOR SPST-NO 0.01A 5V |
7,701 | - |
|
Datasheet | ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
