Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS0851500F100C2ASWITCH SNAP ACTION SPDT 15A 125V |
240 | - |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 30gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
LS0851502F075C1ASWITCH SNAP ACTION SPDT 15A 125V |
9,097 | - |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 25gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
LS0851502F045C1ASWITCH SNAP ACTION SPDT 15A 125V |
3,780 | - |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 20gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
LS0851504F085C1ASWITCH SNAP ACTION SPDT 15A 125V |
618 | - |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 85gf | 30gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
LS0851502F120V1ASWITCH SNAP ACTION SPDT 15A 125V |
2,396 | - |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 120gf | 40gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|

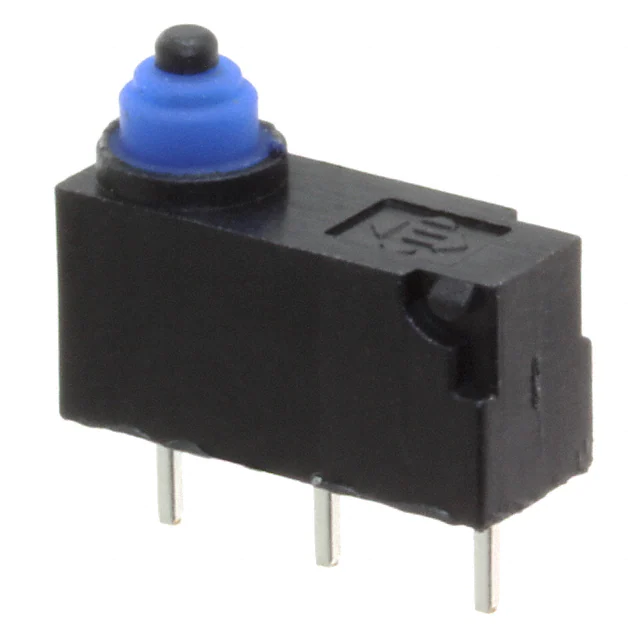

WS0850100F070PASWITCH SNAP ACTION SPDT 1A 24V |
1,263 | - |
|
Datasheet | WS | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 70gf | - | 0.413" (10.5mm) | - | - | - | -25°C ~ 85°C |
|
PP1-EB7-1A2SWITCH SNAP ACTION SPDT 16A 125V |
5,468 | - |
|
Datasheet | PP1 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | White Actuator | 300gf | - | 0.738" (18.7mm) | - | - | - | 0°C ~ 85°C |
|
HY15-6E7-091-0000SWITCH SNAP ACT DPST-NO 18A 125V |
472 |
1+：$4.52800 10+：$3.90640 25+：$3.68384 55+：$3.50240 110+：$3.34982 275+：$3.15799 550+：$3.01993 1045+：$2.89726 |
|
Datasheet | HY | Bulk | Active | DPST-NO | Off-Mom | 18A (AC) | 125 V | - | Trigger | Panel Mount | Screw Terminal | - | - | 3000gf | - | - | - | - | - | - |
|
PP2-1U7-2B2SWITCH DETECTOR DPDT 16A 125V |
5,709 | - |
|
Datasheet | PP2 | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 330gf | - | 0.610" (15.5mm) | - | - | - | 0°C ~ 85°C |
|

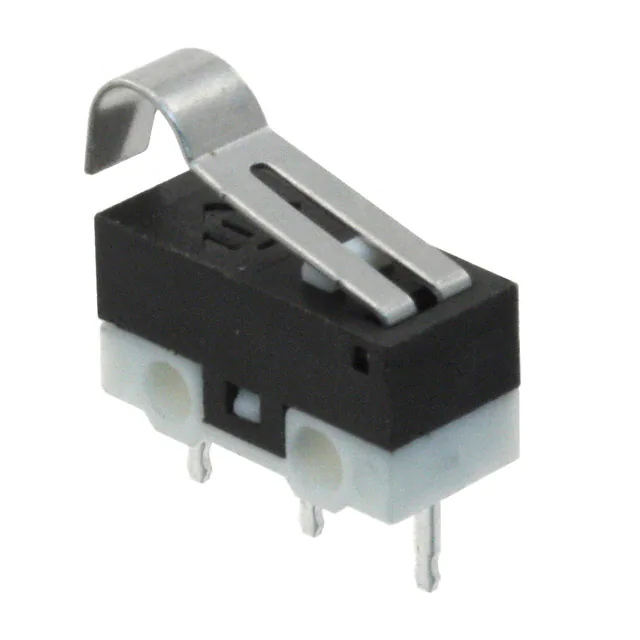

SS0750303F030P1ASWITCH SNAP ACTION SPDT 3A 125V |
5,404 | - |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 30gf | 10gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
