Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

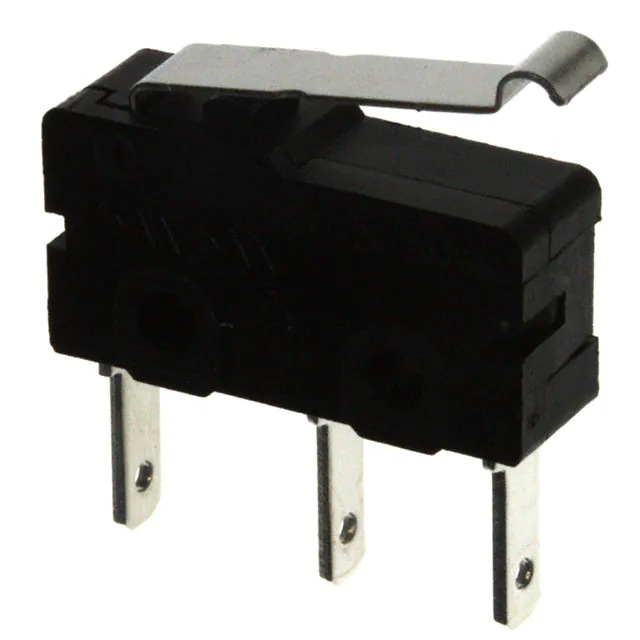

MS0850504F065C1ASWITCH SNAP ACTION SPDT 5A 125V |
249 | - |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 65gf | 25gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|

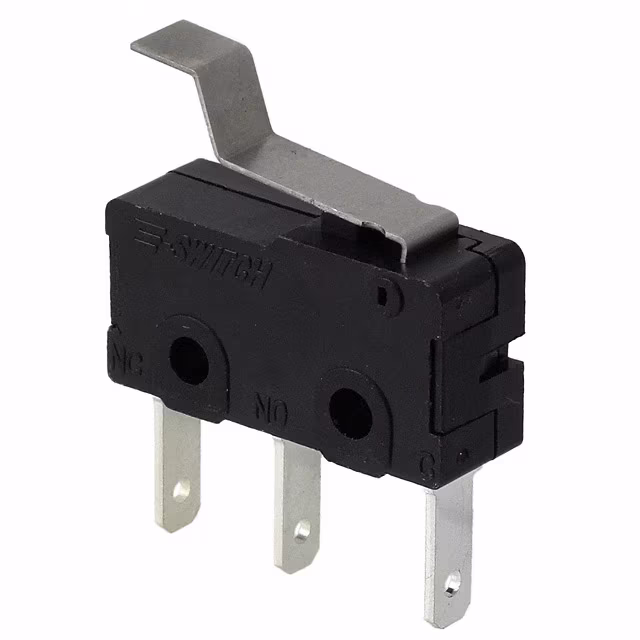

MS0850507F025C1ASWITCH SNAP ACTION SPDT 5A 125V |
324 | - |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 12gf | 0.492" (12.5mm) | 0.197" (5.0mm) | - | - | -25°C ~ 85°C |
|

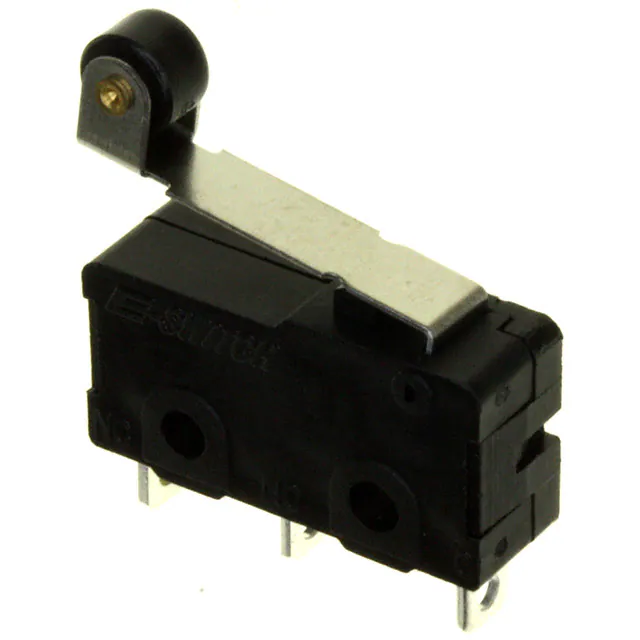

MS0850505F075S1ASWITCH SNAP ACTION SPDT 5A 125V |
1,836 |
1+：$1.28800 10+：$1.06640 25+：$0.98944 50+：$0.93456 100+：$0.88296 270+：$0.81390 540+：$0.76889 1080+：$0.72636 5130+：$0.64024 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 75gf | 25gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|

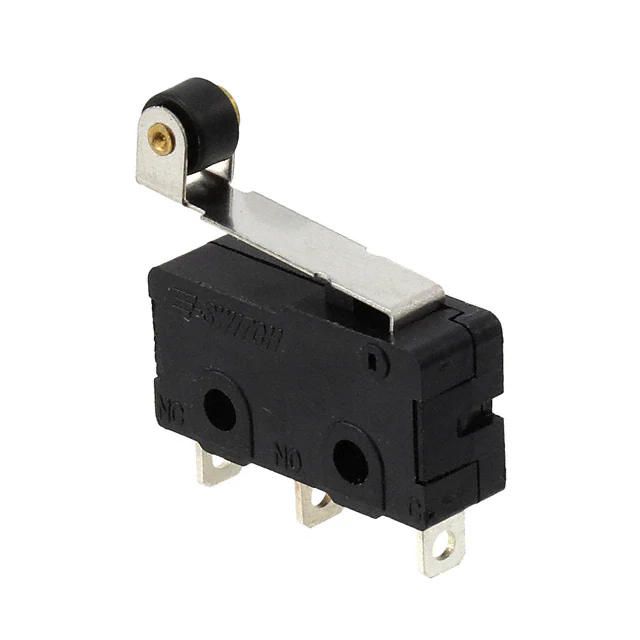

MS0850505F015S1ASWITCH SNAP ACTION SPDT 5A 125V |
179 | - |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 15gf | 6.000gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
LS0851504F050C2CSWITCH SNAP ACT SPST-NO 15A 125V |
229 | - |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 50gf | 20gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
WS0850100F070SASWITCH SNAP ACTION SPDT 1A 24V |
872 | - |
|
Datasheet | WS | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 70gf | - | 0.413" (10.5mm) | - | - | - | -25°C ~ 85°C |
|

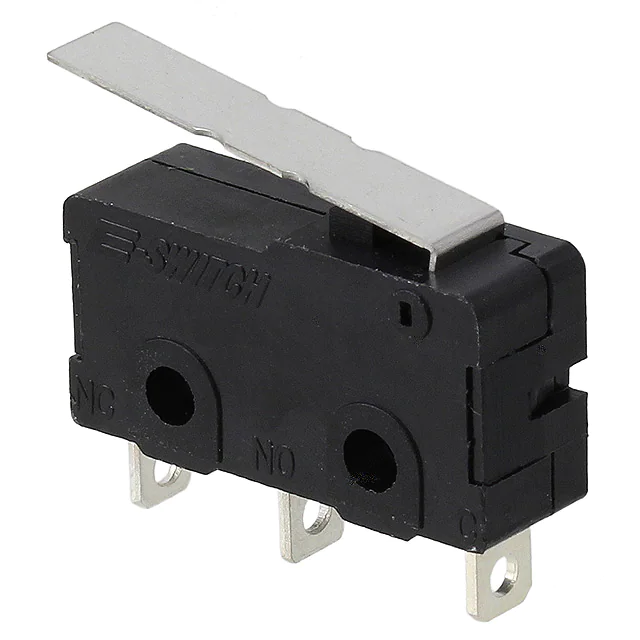

MS085R102F050S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
540 |
1+：$2.04000 10+：$1.68480 25+：$1.56288 50+：$1.47664 100+：$1.39504 270+：$1.28584 540+：$1.21473 1080+：$1.14750 5130+：$1.05000 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 20gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|

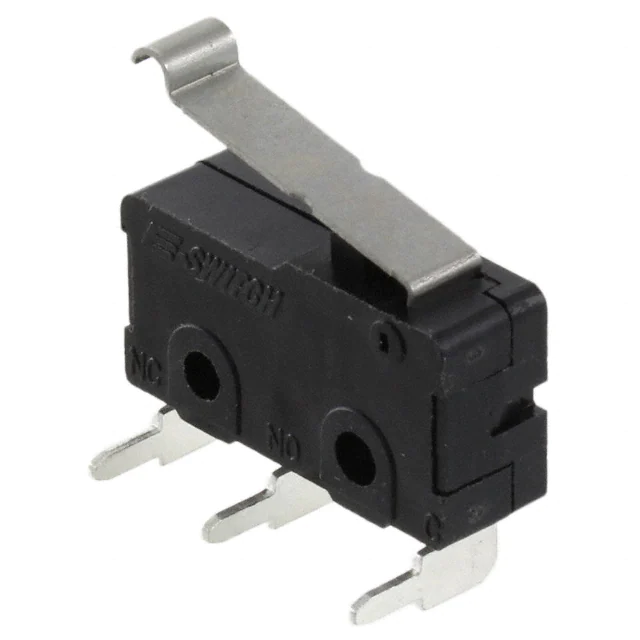

MS085R104F045V1ASWITCH SNAP ACT SPDT 0.4VA 20V |
2,216 | - |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 45gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|

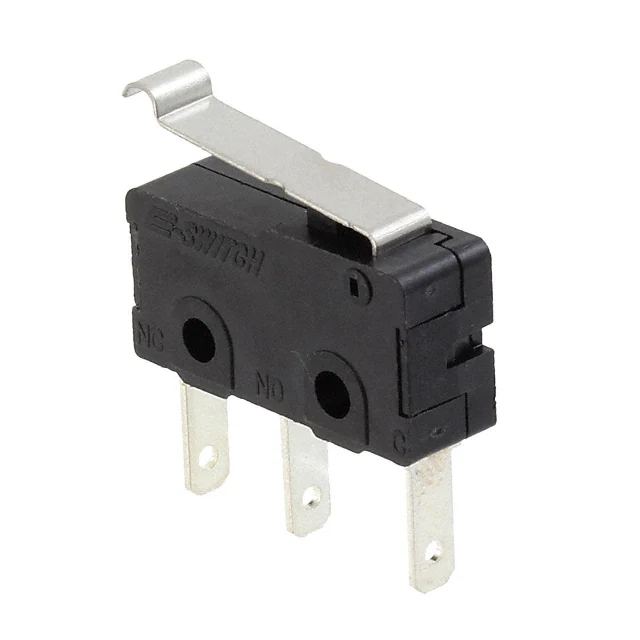

MS085R104F035C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
79 |
1+：$2.40800 10+：$1.99120 25+：$1.84736 50+：$1.74512 100+：$1.64872 270+：$1.51970 540+：$1.43566 1080+：$1.35620 5130+：$1.25080 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|

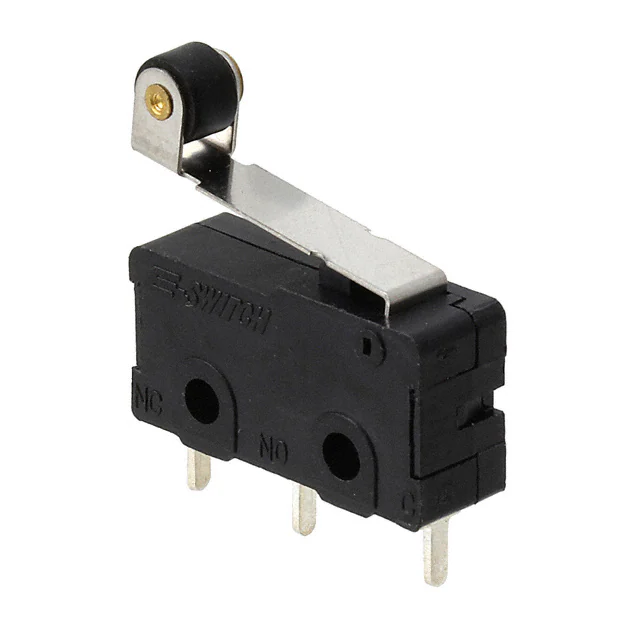

MS085R105F030P1ASWITCH SNAP ACT SPDT 0.4VA 20V |
145 | - |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Roller | Through Hole | PC Pin | - | - | 30gf | 12gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
