Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCRA111EXSWITCH LIMIT 4PST 3A 240V |
2,901 | - |
|
Datasheet | XCR | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
LSYCC3KP-FPSWITCH SNAP ACTION SPDT 10A 120V |
1,567 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 105°C |
|
|
3SE51141LA001AD4SWITCH SNAP ACTION 3PST 1.5A 24V |
2,133 | - |
|
Datasheet | 3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|

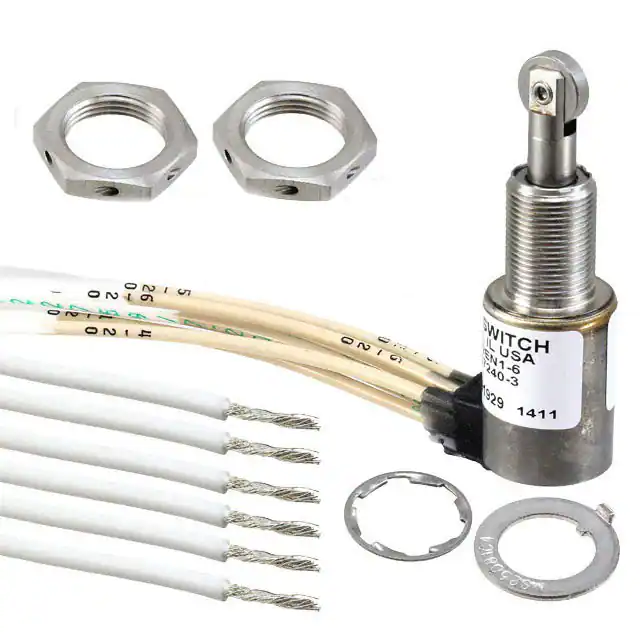

622EN1-6SWITCH SNAP ACTION SPDTX2 7A 28V |
4,962 | - |
|
Datasheet | EN | Bulk | Obsolete | SPDT x 2 | On-Mom | 7A (DC) | - | 28 V | Roller Plunger | Panel Mount | Wire Leads | - | Cable Length 6', Sealed | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.125" (3.2mm) | -55°C ~ 85°C |
|
|
LSA1ABSWITCH SNAP ACTION SPDT 10A 120V |
1,414 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 100°C |
|
|
3SE03AL16PSWITCH LIMIT SIDE ROTARY |
3,186 | - |
|
Datasheet | - | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
|
9007C66FSWITCH LIMIT DPDT 6A 120V |
2,686 | - |
|
Datasheet | 9007 | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
2EX1SWITCH SNAP ACTION SPDT 20A 125V |
2,873 | - |
|
Datasheet | EX | Bulk | Obsolete | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Explosion Proof | 340 ~ 907gf | - | - | 0.219" (5.6mm) | 0.012" (0.3mm) | 25° | -40°C ~ 71°C |
|
|
DTF2-2RQ9-LHSWITCH SNAP ACTION DPDT 10A 125V |
1,306 | - |
|
Datasheet | DTF | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 1134gf | 113gf | 2.515" (63.9mm) | 0.125" (3.2mm) | 0.060" (1.5mm) | 0.125" (3.2mm) | -32°C ~ 71°C |
|
XCRE18SWITCH LIMIT 4PST 3A 240V |
4,914 | - |
|
Datasheet | XCR | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCRE18H2SWITCH LIMIT 10A 240V |
3,650 | - |
|
Datasheet | XCR | Box | Active | - | - | - | - | - | Side Rotary, Adjustable Rod | - | - | - | - | - | - | - | - | - | - | - |
|
|
1CH27SEALED SWITCH |
2,509 | - |
|
Datasheet | - | Bulk | Active | SPDT | On-On | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.250" (6.35mm) | - |
|
|
601.9490.050SWITCH SAFETY HINGE |
4,597 | - |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9490.051SWITCH SAFETY HINGE |
2,459 | - |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9490.052SWITCH SAFETY HINGE SHS3Z-U15Z-K |
1,503 | - |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9490.053SWITCH SAFETY HINGE SHS3Z-U15Z-K |
3,137 | - |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007C52FHSWITCH LIMIT 10A 600V |
2,179 | - |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
44506-0050SWITCH SNAP ACTION 2NC/1NO |
4,482 | - |
|
Datasheet | ER6019 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCRA12SWITCH LIMIT 4PST 3A 240V |
2,874 | - |
|
Datasheet | OsiSense XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
AKA3721R4SWITCH BASIC |
3,923 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
