Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1HS41SWITCH SNAP ACTION SPDT 1A 125V |
1,997 | - |
|
Datasheet | HS | Bulk | Active | SPDT | On-Mom | 1A (AC), 5A (DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 113 ~ 567gf | 57gf | 0.533" (13.54mm) | - | 0.100" (2.54mm) | 0.062" (1.6mm) | -55°C ~ 125°C |
|
|
WGLA1A00AA4JSWITCH SNAP ACTION WIRELESS |
1,213 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.462RFOOT SWITCHFL1U1DU1SUSTDCLRGDA/T |
3,077 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4A-2P01NSWITCH SNAP ACTION DPDT 5A 125V |
2,747 | - |
|
Datasheet | D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 24 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 40gfm | 5.103gfm | - | 15° | 7° | 70° | -10°C ~ 80°C |
|

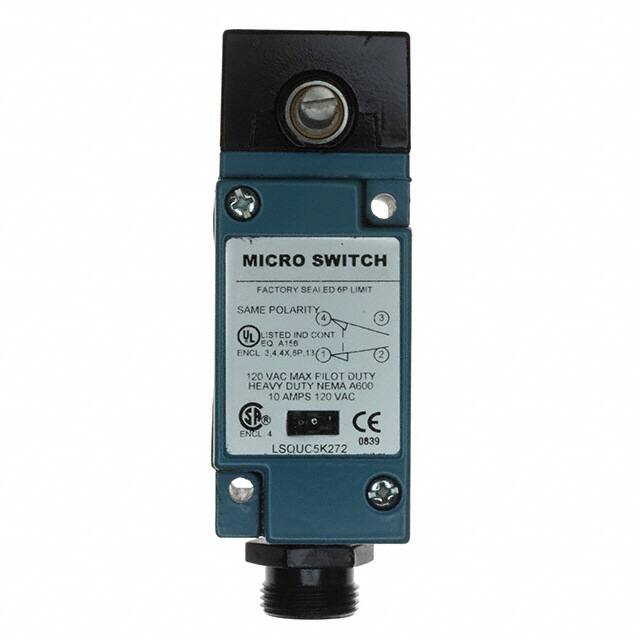

LSQUC5K272SWITCH SNAP ACTION SPDT 10A 120V |
3,505 | - |
|
Datasheet | LSQ | Bulk | Active | SPDT | On-Mom | 10A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
XCKMR44D1H29SWITCH LIMIT 4PST 3A 240V |
4,286 | - |
|
Datasheet | OsiSense XC | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKMR44D2H29SWITCH LIMIT 4PST 3A 240V |
1,912 | - |
|
Datasheet | OsiSense XC | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
616.1700.483FOOT SWITCH SINGLEPEDAL |
3,704 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
616.1000.697FOOT SWITCH 4PST 3A 240V |
3,785 | - |
|
Datasheet | F1 UN | Bulk | Active | 4PST-3NC/1NO | On-Off, Off-On | 3A (AC) | 240 V | - | Foot Switch | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
51.207RFOOT SWITCHFS2SU1S(2X)STDCLR 1NO |
2,814 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V3L-1376SWITCH SNAP ACTION SPDT 1A 125V |
1,713 | - |
|
Datasheet | V3 | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 142gf | - | 0.808" (20.52mm) | 0.120" (3.0mm) | 0.040" (1.02mm) | 0.050" (1.27mm) | - |
|
LSYAC5KP-FPSWITCH SNAP ACTION SPDT 10A 120V |
3,124 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 105°C |
|
3LS1-4CSWITCH SNAP ACTION SPDT 10A 120V |
1,484 | - |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
|
9007C54CS17L3SWITCH LIMIT SPDT 10A 600V |
1,048 | - |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
51.255RFOOT SWITCHFS2SU1(2X)USTDCLRGD 1 |
3,787 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
91SE1-6SEALED SWITCH |
2,792 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VB-3111SWITCH SNAP ACT SPDTX3 10A 125V |
1,601 | - |
|
Datasheet | VB | Bulk | Active | SPDT x 3 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.024" (26.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-3211SWITCH SNAP ACT SPDTX3 10A 125V |
2,627 | - |
|
Datasheet | VB | Bulk | Active | SPDT x 3 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.260" (32.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-3241SWITCH SNAP ACT SPDTX3 10A 125V |
3,332 | - |
|
Datasheet | VB | Bulk | Active | SPDT x 3 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 0.748" (19.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
3SE03BR16PSWITCH LIMIT SIDE ROTARY |
3,782 | - |
|
Datasheet | - | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
