Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G97DCKRIC CONFIG MULT-FUNC GATE SC70-6 |
70,145 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
SN74LVC1G97DRLRIC CONFIG MULTI-FUNC GATE SOT563 |
18,484 | - |
|
Datasheet | 74LVC | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-5X3 |
|
SN74LVC1G97DBVRIC CONFIG MULT-FUNC GATE SOT23-6 |
43,826 | - |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
NC7SZ57P6XIC LOGIC GATE UNIV 2INPUT SC70-6 |
56,429 | - |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | SC-88 (SC-70-6) |
|
|
SN74LVC1G97DCKTIC MULTI-FUNC GATE CONFIG SC70-6 |
168,658 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
MC100EP05DTR2GIC GATE AND/NAND ECL 2IN 8-TSSOP |
3,144 | - |
|
Datasheet | 100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
MC100EP08DTR2GIC GATE XOR/XNOR ECL 2IN 8-TSSOP |
798 | - |
|
Datasheet | 100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | XOR/XNOR Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
NB7L86AMNHTBGIC MF/CFG 1-CIR 2-IN 16-QFN |
100 |
1+：$31.82400 10+：$25.94960 25+：$24.48224 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.375V ~ 3.465V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC722LP3EIC AND 1-CIR 4-IN 16-QFN |
80 |
1+：$102.41600 10+：$86.34320 25+：$82.33024 100+：$77.92120 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Strip | Active | AND/NAND/NOR/OR GATE | 1 | 4 | No | Differential, Single-Ended | - | -3V ~ -3.6V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
74LVC1G97GW,125IC GATE MULTIFUNCTION 6TSSOP |
15,176 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
74LVC1G57GW,125IC CONFIG MULTI-FUNC GATE 6TSSOP |
10,215 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74LVC1G97GV,125IC MF/CFG 1-CIR 3-IN 6-TSOP |
26 |
1+：$0.12800 10+：$0.08880 25+：$0.07808 100+：$0.06624 250+：$0.06061 500+：$0.05722 1000+：$0.05442 |
|
Datasheet | 74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSOP |
|
|
SN74LVC1G98DCKRIC CONFIG MULT-FUNC GATE SC70-6 |
10,237 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|

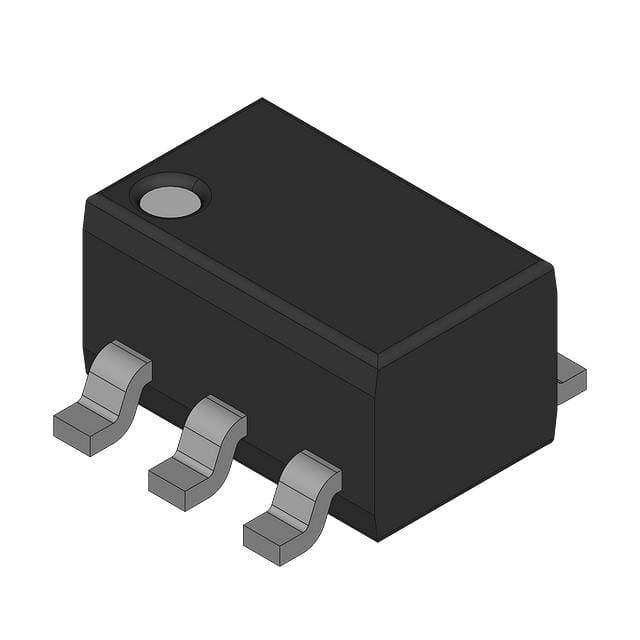

74LVC1G58GW,125IC MF/CFG 1-CIR 3-IN 6-TSSOP |
4,624 |
1+：$0.13600 10+：$0.08960 25+：$0.07872 100+：$0.06680 250+：$0.06115 500+：$0.05773 1000+：$0.05490 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
SN74LVC1G3208DCKRIC SINGLE POS OR-AND 3IN SC70-6 |
7,029 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G58DCKRIC MULT-FUNCTION GATE SC70-6 |
21,481 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G57DCKRIC MULT-FUNCTION GATE SC70-6 |
14,854 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G57DBVRIC MULT-FUNCTION GATE SOT23-6 |
5,760 | - |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
SN74LVC1G97DSFRIC CONFIG MULTI-FUNC GATE 6SON |
3,577 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1x1) |
|
74LVC1G99GT,115IC CONFIG MULTI-FUNC GATE 8-XSON |
1,179 | - |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
