Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN2560-8-04-C16LINE FILTER 300VAC/VDC 8A CHASS |
246 | - |
|
Datasheet | FN 2560 | Bulk | Last Time Buy | Single Phase | Two Stage | 300V | 300V | - | - | 8 A | DC ~ 60Hz | Lighting | CE, CQC, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | Wire Leads | L1 - 500µH, L2 - 26µH |
|

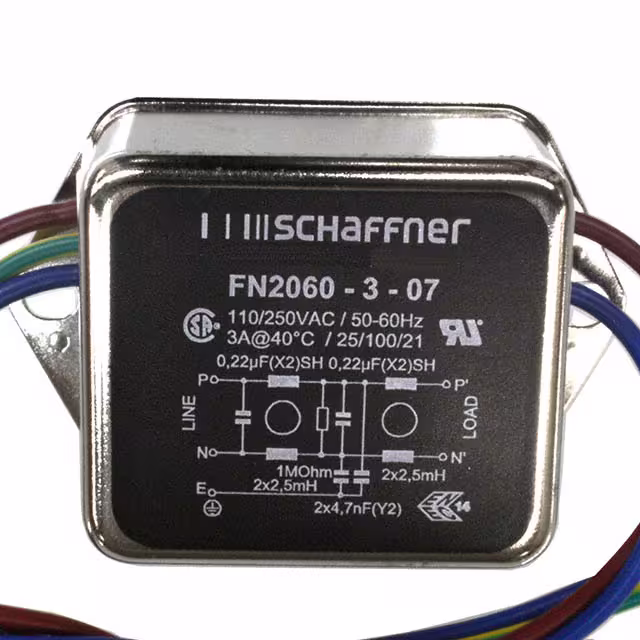

FN2060-3-07LINE FILTER 250VAC 3A CHASS MNT |
594 | - |
|
Datasheet | FN 2060 | Tray | Active | Single Phase | Two Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CE, CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 2.5mH |
|
FN2010-20-07LINE FILTER 250VAC 20A CHASS MNT |
163 | - |
|
Datasheet | FN 2010 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Wire Leads | 600µH |
|

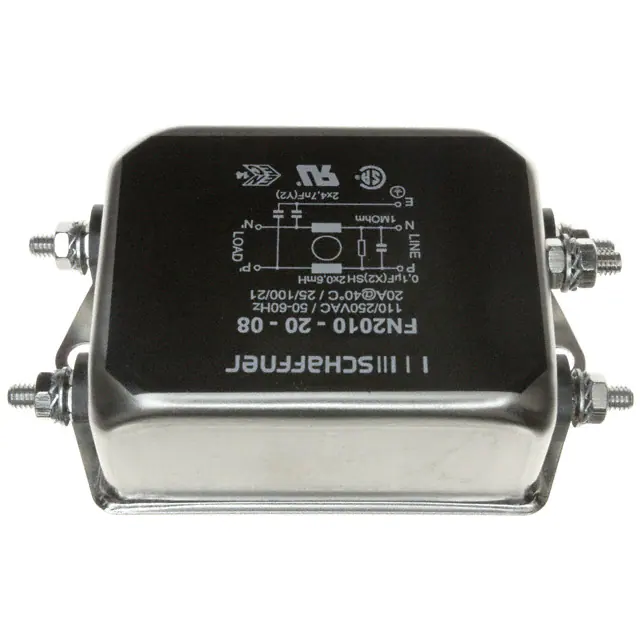

FN2010-20-08LINE FILTER 250VAC 20A CHASS MNT |
148 | - |
|
Datasheet | FN 2010 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 600µH |
|
FN2580-8-07LINE FILTER 350VAC 8A CHASS MNT |
105 | - |
|
Datasheet | FN 2580 | Bulk | Last Time Buy | Single Phase | Single Stage | - | 350V | - | - | 8 A | DC ~ 60Hz | Lighting | CE, CSA, ENEC, UR | -40°C ~ 90°C | Chassis Mount | Wire Leads | - |
|
FN2030B-20-06LINE FILTER 250VAC 20A CHASS MNT |
1,567 | - |
|
Datasheet | FN 2030 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 4mH |
|

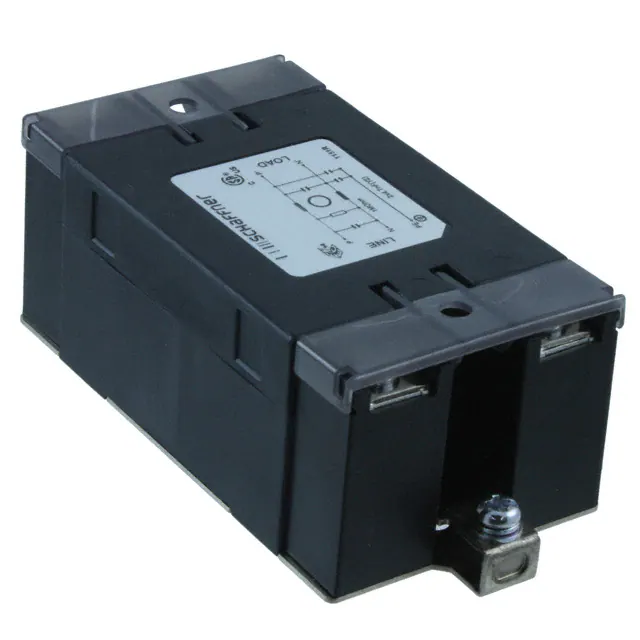

FN2450F-16-61LINE FILTER 250VAC 16A CHASS MNT |
2,878 | - |
|
Datasheet | FN 2450 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | 1.84mH |
|
|
FN2450G-16-61LINE FILTER 250VAC 16A CHASS MNT |
440 |
1+：$46.15200 10+：$37.66880 32+：$33.99125 64+：$31.96987 128+：$30.32000 |
|
Datasheet | FN 2450 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | 1.84mH |
|
|
FN2450F-20-61LINE FILTER 250VAC 20A CHASS MNT |
94 |
1+：$46.55200 10+：$37.98960 32+：$35.50750 |
|
Datasheet | FN 2450 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | 940µH |
|
FN2060A-20-06LINE FILTER 250VAC 20A CHASS MNT |
4,981 | - |
|
Datasheet | FN 2060 | Tray | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | Safety | CE, CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 600µH |
