Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS562201DDCRIC REG BUCK ADJ 2A SOT23 |
29,194 | - |
|
Datasheet | D-CAP2™, Eco-Mode™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 17V | 0.768V | 7V | 2A | 580kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-THIN |
|
MC34063ABD-TRIC REG BUCK BOOST ADJ 1.5A 8SOIC |
92,272 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Adjustable | 1 | 3V | 40V | 1.25V | 38V | 1.5A (Switch) | 33kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TPS561201DDCRIC REG BUCK ADJ 1A SOT23 |
26,490 |
1+：$0.56000 10+：$0.40000 25+：$0.35904 100+：$0.31384 250+：$0.29238 500+：$0.27941 1000+：$0.26874 |
|
Datasheet | SWIFT™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 17V | 0.76V | 7V | 1A | 580kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-THIN |
|
MC33063ADRIC REG BUCK BOOST ADJ 1.5A 8SOIC |
12,968 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Adjustable | 1 | 3V | 40V | 1.25V | 40V (Switch) | 1.5A (Switch) | 100kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MC34063ADRIC REG BUCK BOOST ADJ 1.5A 8SOIC |
24,596 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Adjustable | 1 | 3V | 40V | 1.25V | 40V (Switch) | 1.5A (Switch) | 100kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TPS560200DBVRIC REG BUCK ADJ 500MA SOT23-5 |
13,199 | - |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 17V | 0.8V | 6.5V | 500mA | 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
AP3012KTR-G1IC REG BOOST ADJ 500MA SOT23-5 |
25,521 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.6V | 16V | 1.25V | 29V | 500mA (Switch) | 1.5MHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TLV61048DBVRIC REG BOOST ADJ 3.7A SOT23-6 |
12,414 |
1+：$0.72000 10+：$0.51520 25+：$0.46400 100+：$0.40784 250+：$0.38096 500+：$0.36478 1000+：$0.35251 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.65V | 5.5V | 3.3V | 14V | 3.7A (Switch) | 550kHz, 1MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
AZ34063UMTR-G1IC REG BUCK BOOST ADJ 1.5A 8SOIC |
106,434 |
1+：$0.29600 10+：$0.20320 25+：$0.18080 50+：$0.16688 100+：$0.15560 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Adjustable | 1 | 3V | 36V | 1.25V | 36V | 1.5A (Switch) | Up to 180kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TPS562200DDCRIC REG BUCK ADJ 2A SOT23 |
99,581 | - |
|
Datasheet | D-CAP2™, Eco-Mode™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 17V | 0.765V | 7V | 2A | 650kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-THIN |
|
AP62300TWU-7IC REG BUCK ADJ 3A TSOT26 |
33,684 |
1+：$0.30400 10+：$0.21040 25+：$0.18656 50+：$0.17248 100+：$0.16080 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.2V | 18V | 0.763V | 7V | 3A | 750kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-26 |
|
|
MC34063EBD-TRIC REG BUCK BOOST ADJ 1.5A 8SOIC |
12,089 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Adjustable | 1 | 3V | 40V | 1.25V | 38V | 1.5A (Switch) | 33kHz | No | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP62200WU-7IC REG BUCK ADJ 2A TSOT26 |
133,232 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.2V | 18V | 0.8V | 7V | 2A | 740kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-26 |
|
|
AP62150WU-7IC REG BUCK ADJ 1.5A TSOT26 |
64,751 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.2V | 18V | 0.8V | 7V | 1.5A | 1.3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-26 |
|
AP62301Z6-7IC REG BUCK ADJ 3A SOT563 |
116,656 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.2V | 18V | 0.8V | 7V | 3A | 750kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-563 |
|
MIC2288YD5-TRIC REG BOOST ADJ 1.2A TSOT23-5 |
7,698 |
1+：$0.58400 25+：$0.50176 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.5V | 10V | 2.5V | 34V (Switch) | 1.2A (Switch) | 1.2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|

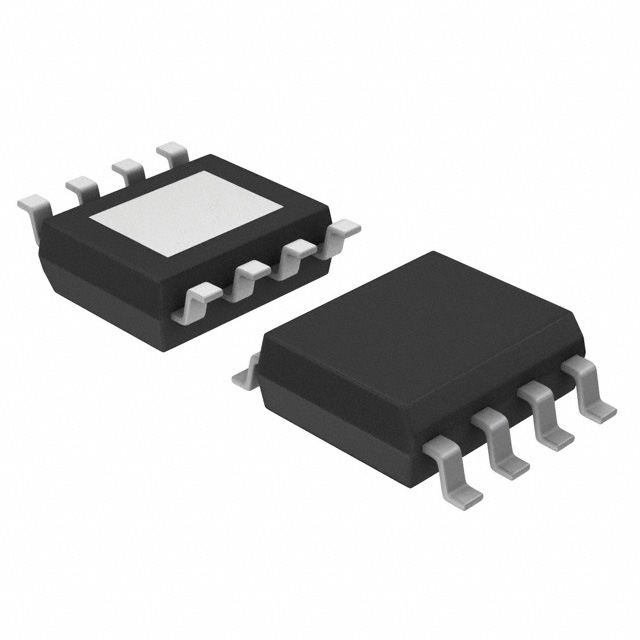

AOZ6605PI-1IC REG BUCK ADJ 5A 8SO |
42,892 | - |
|
Datasheet | EZBuck™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 18V | 0.8V | 15.3V | 5A | 600kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO-EP |
|
MIC2619YD6-TRIC REG BOOST ADJ 350MA TSOT23-6 |
7,904 |
1+：$0.60800 25+：$0.50400 100+：$0.50184 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.8V | 6.5V | 2.8V | 35V | 350mA (Switch) | 1.2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-6 |
|
MCP16251T-I/CHIC REG BOOST ADJ 100MA SOT23-6 |
43,522 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 0.82V | 5.5V | 1.8V | 5.5V | 100mA (Switch) | 500kHz | Yes | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
MCP1640CT-I/CHYIC REG BOOST ADJ 350MA SOT23-6 |
25,427 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 0.8V | 5.5V | 2V | 5.5V | 350mA | 500kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
