Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ943-1AH-12DEFRELAY GEN PURPOSE SPST 15A 12V |
16,801 |
1+：$0.92000 20+：$0.79200 40+：$0.76480 60+：$0.74946 100+：$0.73048 260+：$0.69622 500+：$0.67366 1000+：$0.65056 5000+：$0.59986 |
|
Datasheet | AZ943 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 277VAC, 30VDC - Max | 2770VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1021CS312VDC.20RELAY GEN PURPOSE SPDT 3A 12V |
9,121 | - |
|
Datasheet | J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J107F1CS1212VDC.36RELAY GEN PURPOSE SPDT 12A 12V |
80,452 |
1+：$1.45600 10+：$1.29920 25+：$1.24096 50+：$1.19856 100+：$1.15752 250+：$1.10541 500+：$1.06750 1000+：$1.03086 5000+：$0.95047 |
|
Datasheet | J107F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AZ943-1CH-12DERELAY GEN PURPOSE SPDT 10A 12V |
261,980 |
1+：$1.59200 20+：$1.37360 40+：$1.32640 60+：$1.29974 100+：$1.26680 260+：$1.20730 500+：$1.16819 1000+：$1.12809 5000+：$1.04011 |
|
Datasheet | AZ943 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AZ943-1CH-5DERELAY GEN PURPOSE SPDT 10A 5V |
38,030 |
1+：$1.60800 20+：$1.38360 40+：$1.33640 60+：$1.30946 100+：$1.27624 260+：$1.21630 500+：$1.17691 1000+：$1.13650 5000+：$1.04787 |
|
Datasheet | AZ943 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ943-1CH-24DERELAY GEN PURPOSE SPDT 10A 24V |
34,619 |
1+：$1.63200 20+：$1.40520 40+：$1.35720 60+：$1.32986 100+：$1.29616 260+：$1.23532 500+：$1.19530 1000+：$1.15427 5000+：$1.06424 |
|
Datasheet | AZ943 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J107F1CS1224VDC.36RELAY GEN PURPOSE SPDT 12A 24V |
14,690 |
1+：$1.48000 10+：$1.31680 25+：$1.25760 50+：$1.21440 100+：$1.17288 250+：$1.12003 500+：$1.08162 1000+：$1.04449 5000+：$0.96304 |
|
Datasheet | J107F | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J107F1CS1224VDC.45RELAY GEN PURPOSE SPDT 12A 24V |
2,661 |
1+：$1.03200 10+：$0.92240 25+：$0.88064 50+：$0.85056 100+：$0.82144 250+：$0.78448 500+：$0.75758 1000+：$0.73159 5000+：$0.67457 |
|
Datasheet | J107F | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALQ3F12RELAY GEN PURPOSE SPST 10A 12V |
10,794 | - |
|
Datasheet | ALQ | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J107F1CS125VDC.36RELAY GEN PURPOSE SPDT 12A 5V |
36,511 |
1+：$1.39200 10+：$1.24240 25+：$1.18624 50+：$1.14560 100+：$1.10640 250+：$1.05661 500+：$1.02037 1000+：$0.98534 5000+：$0.90850 |
|
Datasheet | J107F | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1131AS12VDC.20RELAY GEN PURPOSE SPST 5A 12V |
2,060 |
1+：$1.00000 10+：$0.88800 25+：$0.84832 50+：$0.81920 100+：$0.79120 250+：$0.75558 500+：$0.72968 1000+：$0.70466 5000+：$0.64973 |
|
Datasheet | J113 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J107F1CS1524VDC.80RELAY GEN PURPOSE SPDT 15A 24V |
21,601 |
1+：$1.84000 10+：$1.64320 25+：$1.56928 50+：$1.51552 100+：$1.46368 250+：$1.39773 500+：$1.34978 1000+：$1.30343 5000+：$1.20175 |
|
Datasheet | J107F | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

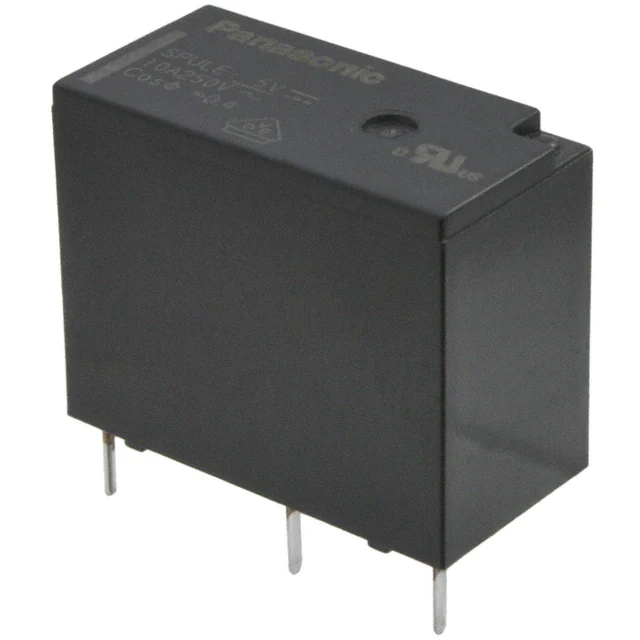

ALQ305RELAY GEN PURPOSE SPST 10A 5V |
11,321 | - |
|
Datasheet | ALQ | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 40 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ALQ312RELAY GEN PURPOSE SPST 10A 12V |
10,410 | - |
|
Datasheet | ALQ | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G5Q-1A4-EU DC5RELAY GEN PURPOSE SPST 10A 5V |
20,759 | - |
|
Datasheet | G5Q | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|

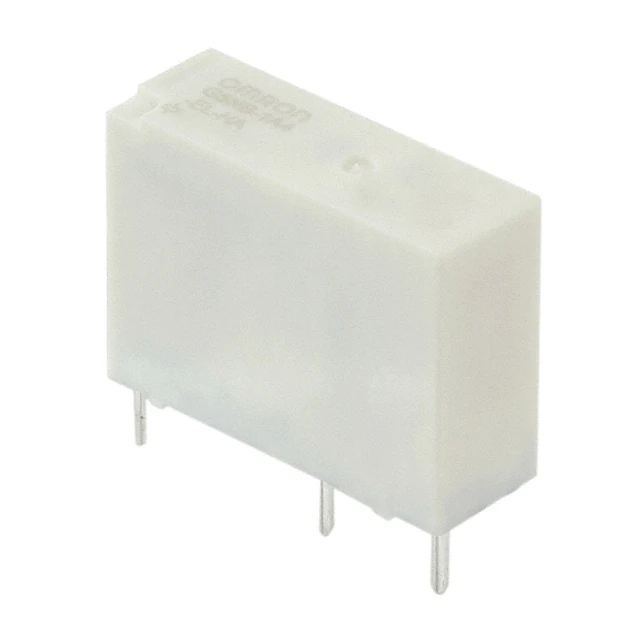

G5NB-1A4-EL-HA DC12RELAY GEN PURPOSE SPST 7A 12V |
44,588 | - |
|
Datasheet | G5NB-EL | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G5Q-1 DC12RELAY GEN PURPOSE SPDT 10A 12V |
48,788 | - |
|
Datasheet | G5Q | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
G5LE-14 DC3RELAY GEN PURPOSE SPDT 10A 3V |
6,594 | - |
|
Datasheet | G5LE | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ALQ105RELAY GEN PURPOSE SPDT 10A 5V |
51,801 | - |
|
Datasheet | ALQ | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 80 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ALQ112RELAY GEN PURPOSE SPDT 10A 12V |
10,842 | - |
|
Datasheet | ALQ | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
