Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTRH-1C-12S-T5-XRELAY GEN PURPOSE SPDT 30A 12V |
798 |
1+:$2.52800 20+:$2.17320 40+:$2.09900 60+:$2.05654 100+:$2.00440 260+:$1.91028 500+:$1.84835 1000+:$1.78486 |
|
Datasheet | PTRH | Tube | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 80 mA | Non Latching | - | Quick Connect - Multiple Sizes | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC375-2C-12S4-XRELAY GEN PURPOSE DPDT 8A 12V |
6,606 |
1+:$2.07200 10+:$1.84560 30+:$1.74666 50+:$1.70240 100+:$1.64408 250+:$1.56998 500+:$1.51610 1000+:$1.46404 5000+:$1.34982 |
|
Datasheet | PC375 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 34.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PC113-2C-C1-120A-XRELAY GEN PURPOSE DPDT 12A 120V |
415 |
1+:$6.22400 20+:$5.35680 40+:$5.17300 60+:$5.06854 100+:$4.93976 260+:$4.70745 500+:$4.55467 1000+:$4.39804 |
|
Datasheet | PC113 | Tray | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 26.4 mA | Non Latching | - | Solder Lug | - | Class F | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC312-5H-XRELAY TELECOM SPDT 3A 5V |
2,118 |
1+:$0.93600 10+:$0.83680 25+:$0.79936 50+:$0.77216 100+:$0.74568 250+:$0.71213 500+:$0.68770 1000+:$0.66411 5000+:$0.61235 |
|
Datasheet | PC312 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 48VDC - Max | 900VA, 144W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
PC323-12H-XRELAY TELECOM DPDT 2A 12V |
780 |
1+:$1.20800 20+:$1.03720 40+:$1.00180 60+:$0.98160 100+:$0.95672 260+:$0.91185 500+:$0.88234 1000+:$0.85206 5000+:$0.78562 |
|
Datasheet | PC323 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 48VDC - Max | 750VA, 144W | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
PTRD-1A-24S-1-XRELAY GEN PURPOSE SPST 40A 24V |
220 |
1+:$2.18400 20+:$1.87840 40+:$1.81420 60+:$1.77760 100+:$1.73256 260+:$1.65117 500+:$1.59766 1000+:$1.54278 5000+:$1.42242 |
|
Datasheet | PTRD | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 110VDC - Max | 12000VA, 4400W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC375-1C-12S1-XRELAY GEN PURPOSE SPDT 16A 12V |
36 |
1+:$2.21600 10+:$1.97360 30+:$1.86774 50+:$1.82048 100+:$1.75808 250+:$1.67882 500+:$1.62118 1000+:$1.56552 5000+:$1.44338 |
|
Datasheet | PC375 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 34.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PC118-4C-P-24A-XRELAY GEN PURPOSE 4PDT 5A 24V |
68 |
1+:$7.20800 20+:$6.20200 40+:$5.98920 60+:$5.86814 100+:$5.71904 260+:$5.45006 500+:$5.27315 1000+:$5.09181 |
|
Datasheet | PC118 | Tray | Active | Through Hole | 24VAC | 4PDT (4 Form C) | 5 A | 220VAC, 28VDC - Max | 1100VA, 140W | 130.4 mA | Non Latching | - | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
PC236-1C-24S-XRELAY GEN PURPOSE SPDT 20A 24V |
8,163 |
1+:$1.33600 10+:$1.19120 25+:$1.13760 50+:$1.09872 100+:$1.06112 250+:$1.01328 500+:$0.97854 1000+:$0.94496 5000+:$0.87128 |
|
Datasheet | PC236 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC, 48VDC - Max | 5540VA, 960W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

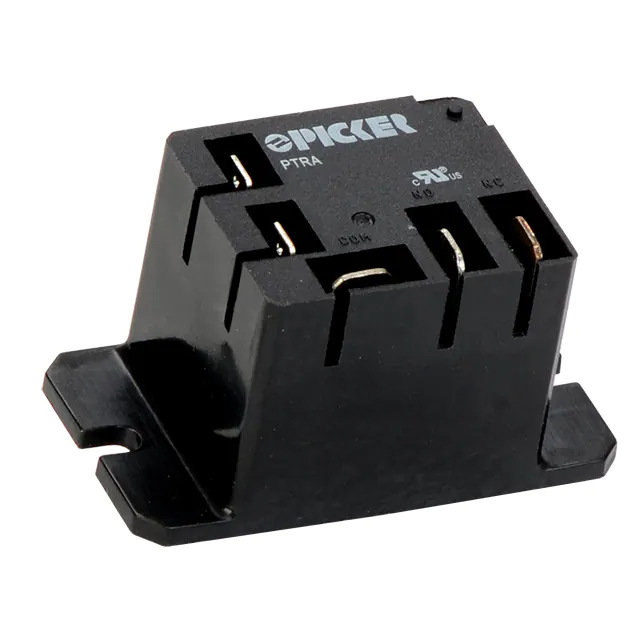

PTRA-1A-220S-T4-XRELAY GEN PURPOSE SPST 40A 220V |
522 |
1+:$3.69600 15+:$3.22400 30+:$3.11334 60+:$3.00666 105+:$2.92320 255+:$2.79542 510+:$2.69939 1005+:$2.60858 |
|
Datasheet | PTRA | Tube | Active | Chassis Mount | 220VAC | SPST-NO (1 Form A) | 40 A | 300VAC, 110VDC - Max | 12000VA, 4400W | 163.1 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 165 VAC | 86 VAC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
