Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
161C10PWR XFMR LAMINATED 0.5VA TH |
196 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 100mA, Series 50mA | Single | Single, Multiple Taps | No | 0.5VA | Through Hole | PC Pin | 25.40mm L x 23.88mm W | 21.34mm | 2000Vrms | 0.08 lb (36.29 g) |
|
186B24PWR XFMR LAMINATED 6VA CHAS MT |
861 | - |
|
Datasheet | 186 | Box | Active | Laminated Core | 115V, 230V | 24V | 250mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms | 0.45 lb (204.12 g) |
|
185D36PWR XFMR LAMINATED 43VA CHAS MT |
748 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 56.39mm W | 68.07mm | 4000Vrms | 1.8 lbs (816.5 g) |
|

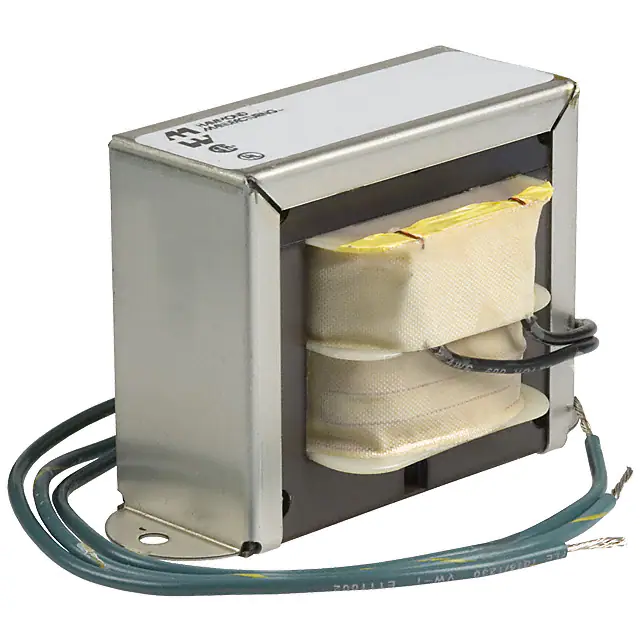

166LA12PWR XFMR LAMINATED 24VA CHAS MT |
102 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 12V | 2A | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms | 1 lb (453.59 g) |
|
183K24PWR XFMR LAMINATED 56VA TH |
171 | - |
|
Datasheet | 183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.66A, Series 2.33A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
|
185D24PWR XFMR LAMINATED 43VA CHAS MT |
345 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 56.39mm W | 68.07mm | 4000Vrms | 1.8 lbs (816.5 g) |
|
|
166L24PWR XFMR LAMINATED 48VA CHAS MT |
170 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 24V | 2A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 1.9 lbs (861.8 g) |
|
|
185G230PWR XFMR LAMINATED 175VA CHAS MT |
2,233 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.25mm L x 81.28mm W | 95.25mm | 4000Vrms | 5 lbs (2.3 kg) |
|
160F28PWR XFMR LAMINATED 4.4VA TH |
145 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 320mA, Series 160mA | Dual | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms | 0.32 lb (145.15 g) |
|
162E20PWR XFMR LAMINATED 2.4VA TH |
503 |
1+：$10.62400 10+：$9.47760 25+：$9.05344 50+：$8.74464 100+：$8.44576 250+：$8.06586 500+：$7.78955 1000+：$7.52255 |
|
Datasheet | 162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
