Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160D10PWR XFMR LAMINATED 1VA TH |
1,294 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 180mA, Series 90mA | Dual | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms | 0.13 lb (58.97 g) |
|
|
160D24PWR XFMR LAMINATED 1VA TH |
1,093 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 70mA, Series 35mA | Dual | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms | 0.13 lb (58.97 g) |
|
161F28PWR XFMR LAMINATED 4.4VA TH |
239 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 320mA, Series 160mA | Single | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms | 0.33 lb (149.69 g) |
|

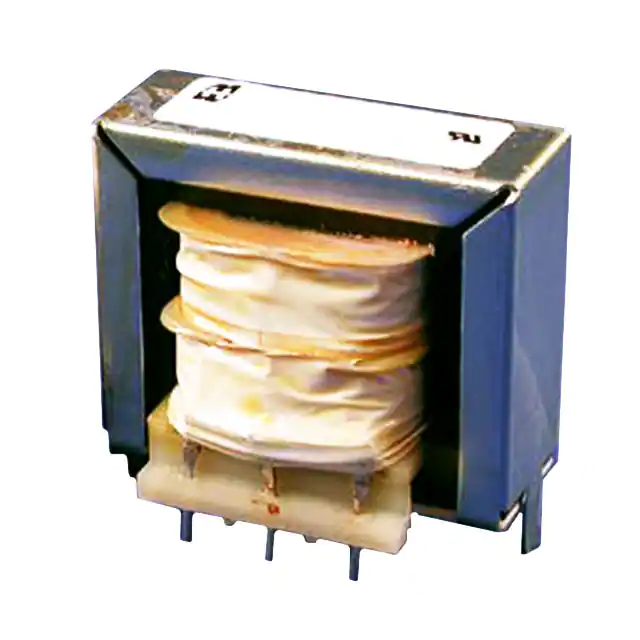

161EA20PWR XFMR LAMINATED 1.2VA TH |
132 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 120mA, Series 60mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
|
161FA12PWR XFMR LAMINATED 1.2VA TH |
116 | - |
|
Datasheet | 161 | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 200mA, Series 100mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
|
160D120PWR XFMR LAMINATED 1VA TH |
179 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 16mA, Series 8mA | Dual | Single, Multiple Taps | No | 1VA | Through Hole | PC Pin | 25.40mm L x 35.05mm W | 21.08mm | 2000Vrms | 0.13 lb (58.97 g) |
|
229A12PWR XFMR SEMI-TORO 6VA TH |
237 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 900mA, Series 450mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 21.59mm | 1750Vrms | 0.28 lb (127.01 g) |
|
183J12PWR XFMR LAMINATED 30VA TH |
149 | - |
|
Datasheet | 183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|

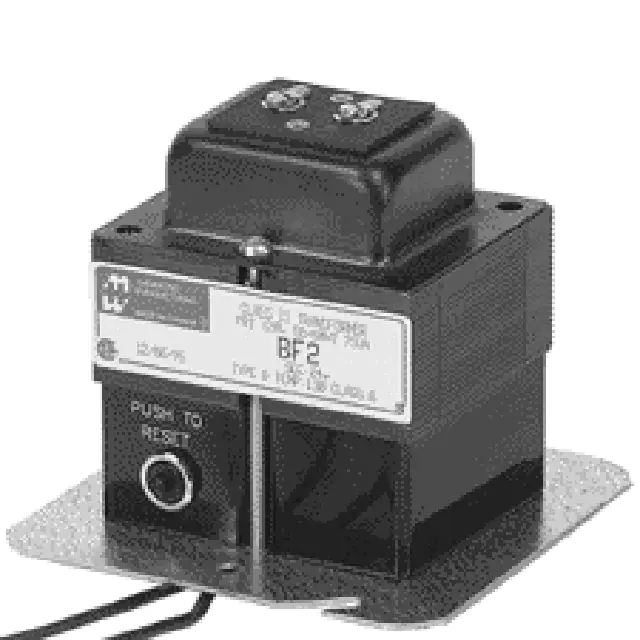

BF2GPWR XFMR LAMINATED 75VA CHAS MT |
4,967 | - |
|
Datasheet | BF | Bulk | Active | Laminated Core | 120V | 24V | 3.13A | Single | Single | No | 75VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 95.25mm | - | 3.2 lbs (1.5 kg) |
|
226NPWR XFMR SEMI-TORO 20VA TH |
3,730 | - |
|
Datasheet | 226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
