Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PWDI13169PWR XFMR |
2,343 | - |
|
Datasheet | * | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
735PWR XFMR LAMINATED 735VA CHAS MT |
2,707 | - |
|
Datasheet | 700 | Bulk | Active | Laminated Core | 115V | 3000V | 250mA | Single | Single | Yes | 735VA | Chassis Mount | Wire Leads | 127.00mm L x 152.40mm W | 165.10mm | - | 24 lbs (10.9 kg) |
|
|
PWDP13100PWR XFMR CHAS MT |
4,497 | - |
|
Datasheet | PWDAHL | Bulk | Active | - | 240V, 220V | 1500V | 1A | Single, Multiple Taps | Single | No | - | Chassis Mount | Wire Leads | 193.04mm L x 134.95mm W | 161.93mm | - | - |
|
|
PWDF13127PWR XFMR |
4,178 | - |
|
Datasheet | * | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PWDP13139PWR XFMR LAMINATED CHAS MT |
2,464 | - |
|
Datasheet | PWDAHL | Case | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Triple | Yes | - | Chassis Mount | Wire Leads | - | - | - | 50 lbs (22.7 kg) |
|
|
PWDP13047PWR XFMR ALPHA 76A-2 POWER |
4,121 | - |
|
Datasheet | PWDAHL | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 54 lb (24.5 kg) |
|
|
737PWR XFMR LAMINATED 1200VA CHAS |
2,808 | - |
|
Datasheet | 700 | Bulk | Active | Laminated Core | 115V | 3000V | 400mA | Single | Single | Yes | 1200VA | Chassis Mount | Wire Leads | 127.00mm L x 177.80mm W | 165.10mm | - | 29 lbs (13.2 kg) |
|

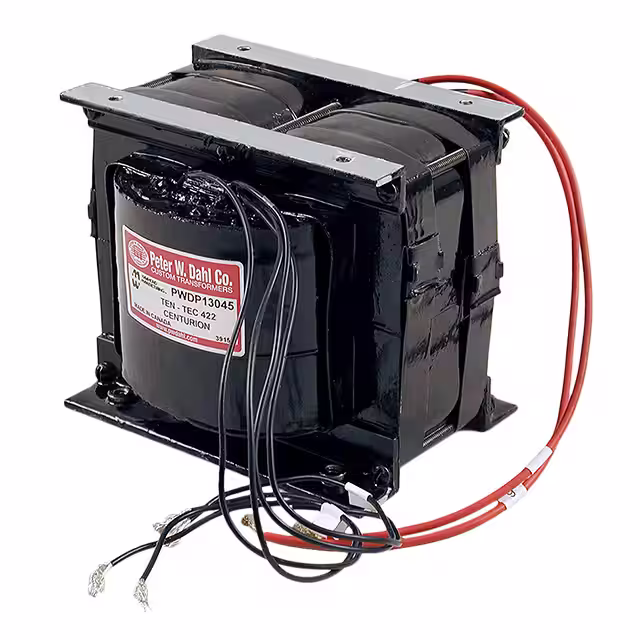

PWDP13045PWR XFMR LAMINATED CHAS MT |
4,878 | - |
|
Datasheet | PWDAHL | Case | Active | Laminated Core | 115V, 230V | 2225V | 500mA | Dual | Single | No | - | Chassis Mount | Wire Leads | 146.05mm L x 160.66mm W | 152.40mm | - | - |
|
|
PWDI13211PWR XFMR |
2,798 | - |
|
Datasheet | * | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PWDP13046PWR XFMR |
1,122 | - |
|
Datasheet | * | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
