Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166C50PWR XFMR LAMINATED 3.75VA CHAS |
1,855 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 50V | 75mA | Single | Single | Yes | 3.75VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms | 0.4 lb (181.44 g) |
|
160H40PWR XFMR LAMINATED 24VA TH |
2,456 | - |
|
Datasheet | 160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.8 lb (362.87 g) |
|
187F28PWR XFMR LAMINATED 100VA CHAS MT |
1,016 | - |
|
Datasheet | 187 | Box | Active | Laminated Core | 115V | 28V | 3.57A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|
|
166M16PWR XFMR LAMINATED 48VA CHAS MT |
4,757 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 16V | 3A | Single | Single | Yes | 48VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2 lbs (907.2 g) |
|
229D10PWR XFMR SEMI-TORO 48VA TH |
1,075 | - |
|
Datasheet | 229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
167G120PWR XFMR LAMINATED 60VA CHAS MT |
3,246 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 120V | 500mA | Single | Single | Yes | 60VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|

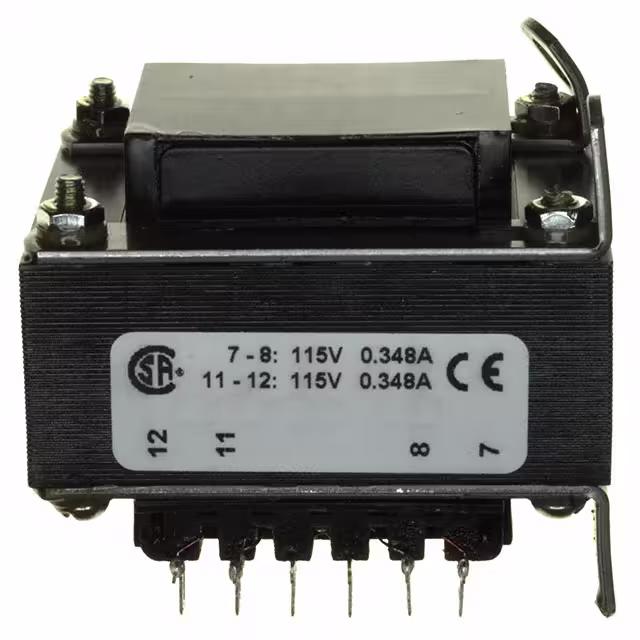

185E230PWR XFMR LAMINATED 80VA CHAS MT |
1,198 | - |
|
Datasheet | 185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms | 2.5 lbs (1.1 kg) |
|
PHC25JGAPWR XFMR LAMINATED 25VA CHAS MT |
2,512 | - |
|
Datasheet | PHC | Box | Active | Laminated Core | 120V | 24V | 1.04A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | - | 1.4 lbs (635 g) |
|
|
166Q6PWR XFMR LAMINATED 37.8VA CHAS |
4,737 | - |
|
Datasheet | 166 | Bulk | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 93.73mm L x 50.80mm W | 58.67mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
166M12BPWR XFMR LAMINATED 37.8VA CHAS |
1,248 | - |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 12.6V | 3A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | - | - | 2000Vrms | - |
