Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1182J117PWR XFMR TOROIDAL 120VA CHAS MT |
1,123 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 1.026A, Series 513mA | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
1182Q9PWR XFMR TOROIDAL 120VA CHAS MT |
3,959 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 9V, Series 18V | Parallel 13.34A, Series 6.67A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
167L60PWR XFMR LAMINATED 120VA CHAS MT |
3,425 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 60V | 2A | Single | Single | Yes | 120VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 3.6 lbs (1.6 kg) |
|
BF5GPWR XFMR LAMINATED 75VA CHAS MT |
3,393 | - |
|
Datasheet | BF | Bulk | Active | Laminated Core | 240V | 24V | 3.13A | Single | Single | No | 75VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 95.25mm | - | 3.2 lbs (1.5 kg) |
|
|
1182L30PWR XFMR TOROIDAL 120VA CHAS MT |
4,251 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 4A, Series 2A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
1182N15PWR XFMR TOROIDAL 120VA CHAS MT |
1,979 | - |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 15V, Series 30V | Parallel 8A, Series 4A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
BF5FPWR XFMR LAMINATED 75VA CHAS MT |
4,144 | - |
|
Datasheet | BF | Bulk | Active | Laminated Core | 240V | 16V | 4.68A | Single | Single | No | 75VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 95.25mm | - | 3.2 lbs (1.5 kg) |
|
269GXPWR XFMR LAMINATED 48VA CHAS MT |
1,783 | - |
|
Datasheet | 269 | Bulk | Active | Laminated Core | 115V | 450V, 6.3V | 75mA, 2.5A | Single | Dual | Yes | 48VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms | 1.9 lbs (861.8 g) |
|
|
167P25PWR XFMR LAMINATED 125VA CHAS MT |
3,483 | - |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 25V | 5A | Single | Single | Yes | 125VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 3.6 lbs (1.6 kg) |
|

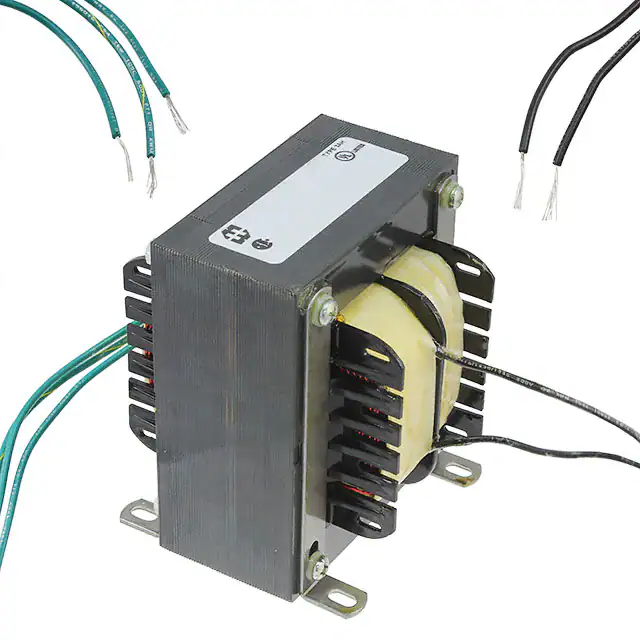

166M72PWR XFMR LAMINATED 216VA CHAS MT |
2,644 | - |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 72V | 3A | Single | Single | Yes | 216VA | Chassis Mount | Wire Leads | 95.25mm L x 90.42mm W | 114.30mm | 2000Vrms | 11 lbs (5 kg) |
