Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70002KPWR XFMR TOROIDAL 1.6VA TH |
120 | - |
|
Datasheet | 7XXXX | Box | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 134mA, Series 67mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms | 0.157 lb (71.21 g) |
|
70053KPWR XFMR TOROIDAL 15VA TH |
203 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1A, Series 500mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
70052KPWR XFMR TOROIDAL 15VA TH |
165 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.25A, Series 625mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
70054KPWR XFMR TOROIDAL 15VA TH |
159 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 834mA, Series 417mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|

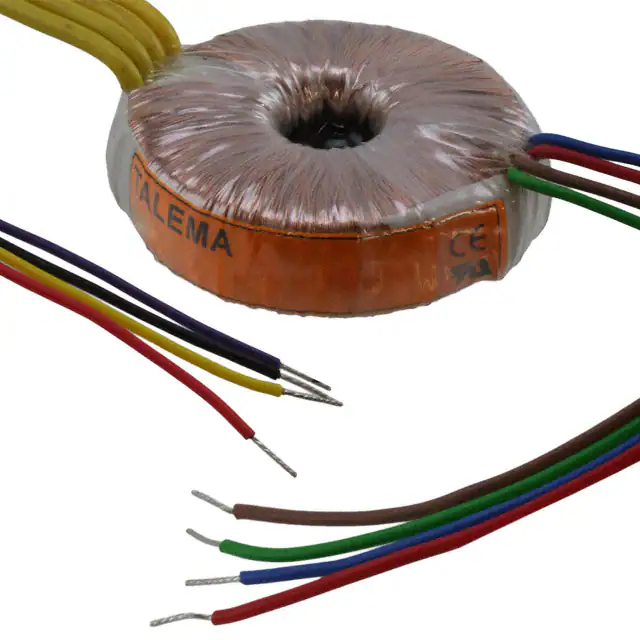

62022PWR XFMR TOROIDAL 5VA CHAS MT |
727 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 416mA, Series 208mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms | 0.254 lb (115.21 g) |
|
|
70060KPWR XFMR TOROIDAL 25VA TH |
215 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 3.57A, Series 1.785A | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
70062KPWR XFMR TOROIDAL 25VA TH |
662 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.082A, Series 1.041A | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
70063KPWR XFMR TOROIDAL 25VA TH |
266 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.664A, Series 832mA | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
70064KPWR XFMR TOROIDAL 25VA TH |
143 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.388A, Series 694mA | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
70065KPWR XFMR TOROIDAL 25VA TH |
151 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 1.136A, Series 568mA | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms | 0.856 lb (388.28 g) |
