Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

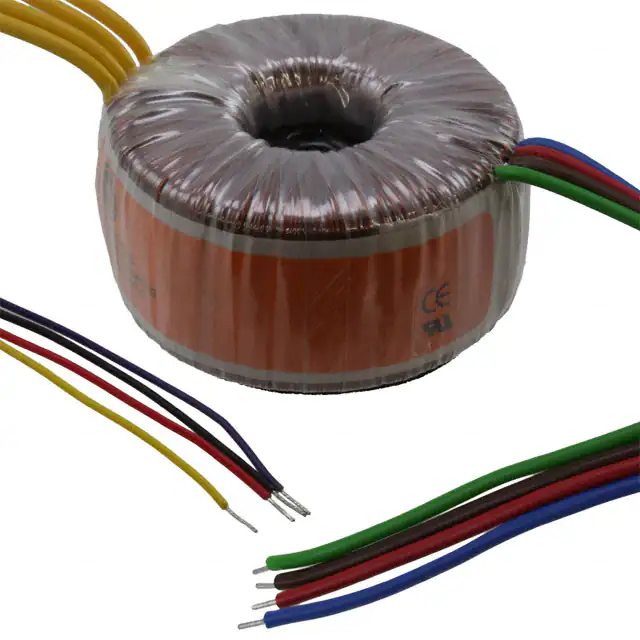

62060PWR XFMR TOROIDAL 25VA CHAS MT |
1,669 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 3.57A, Series 1.785A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
70051KPWR XFMR TOROIDAL 15VA TH |
3,643 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 1.666A, Series 833mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
70055KPWR XFMR TOROIDAL 15VA TH |
3,943 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 682mA, Series 341mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms | 0.578 lb (262.18 g) |
|
62052PWR XFMR TOROIDAL 15VA CHAS MT |
2,767 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.25A, Series 625mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
62053PWR XFMR TOROIDAL 15VA CHAS MT |
2,019 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1A, Series 500mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
70073KPWR XFMR TOROIDAL 35VA TH |
2,295 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 2.332A, Series 1.166A | Dual | Dual | No | 35VA | Through Hole | PC Pin | 72.00mm L x 72.00mm W | 37.50mm | 4000Vrms | 1 lb (453.59 g) |
|

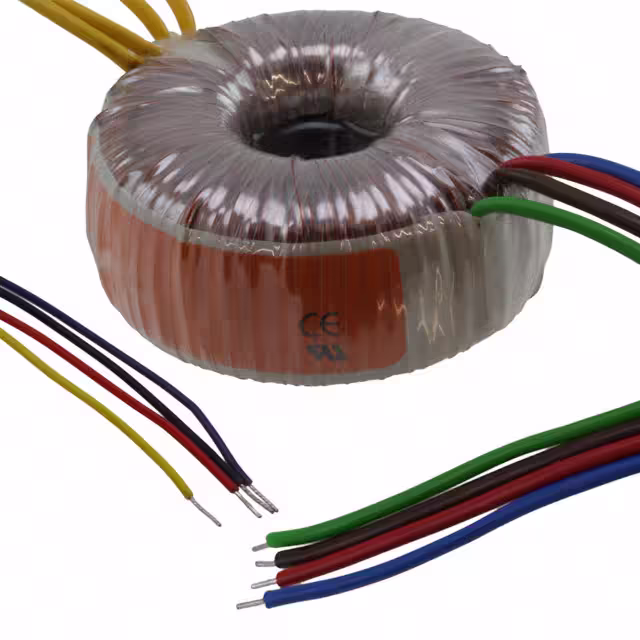

62072PWR XFMR TOROIDAL 35VA CHAS MT |
2,799 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.916A, Series 1.458A | Dual | Dual | No | 35VA | Chassis Mount | Wire Leads | - | - | 4000Vrms | 1 lb (453.59 g) |
|
70084KPWR XFMR TOROIDAL 50VA TH |
2,674 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 2.776A, Series 1.388A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.5 lbs (680.4 g) |
|
|
70083KPWR XFMR TOROIDAL 50VA TH |
1,437 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.332A, Series 1.666A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.5 lbs (680.4 g) |
|
|
70082KPWR XFMR TOROIDAL 50VA TH |
3,182 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.166A, Series 2.083A | Dual | Dual | No | 50VA | Through Hole | PC Pin | 82.40mm L x 82.40mm W | 37.50mm | 4000Vrms | 1.5 lbs (680.4 g) |
