Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70023KPWR XFMR TOROIDAL 5VA TH |
3,834 | - |
|
Datasheet | 7XXXX | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 334mA, Series 167mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 19.50mm | 4000Vrms | 0.254 lb (115.21 g) |
|
62020PWR XFMR TOROIDAL 5VA CHAS MT |
3,579 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 714mA, Series 357mA | Dual | Dual | No | 5VA | Chassis Mount | Wire Leads | - | 18.00mm | 4000Vrms | 0.254 lb (115.21 g) |
|

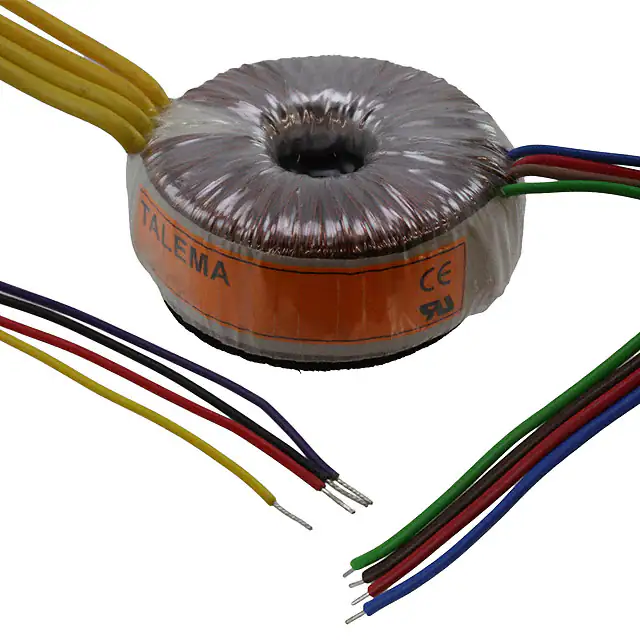

62033PWR XFMR TOROIDAL 7VA CHAS MT |
2,243 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 466mA, Series 233mA | Dual | Dual | No | 7VA | Chassis Mount | Wire Leads | - | - | 4000Vrms | 0.32 lb (145.15 g) |
|
62050PWR XFMR TOROIDAL 15VA CHAS MT |
1,642 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 2.142A, Series 1.071A | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
62061PWR XFMR TOROIDAL 25VA CHAS MT |
1,401 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 2.754A, Series 1.377A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
62055PWR XFMR TOROIDAL 15VA CHAS MT |
2,107 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 682mA, Series 341mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms | 0.578 lb (262.18 g) |
|
|
62063PWR XFMR TOROIDAL 25VA CHAS MT |
4,910 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.664A, Series 832mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
62064PWR XFMR TOROIDAL 25VA CHAS MT |
3,608 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.388A, Series 694mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
62065PWR XFMR TOROIDAL 25VA CHAS MT |
2,699 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 22V, Series 44V | Parallel 1.136A, Series 568mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms | 0.856 lb (388.28 g) |
|
|
62062PWR XFMR TOROIDAL 25VA CHAS MT |
4,898 | - |
|
Datasheet | Standard Mini | Tray | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.082A, Series 1.041A | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | - | 34.50mm | 4000Vrms | 0.856 lb (388.28 g) |
