Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

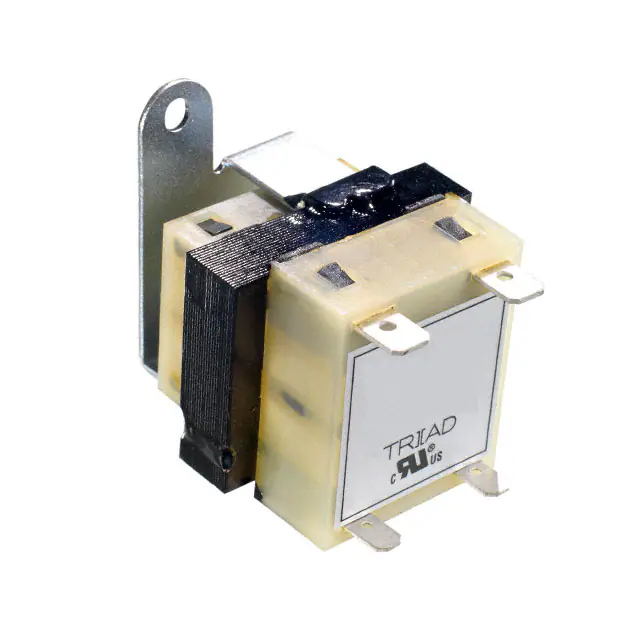

TCT3-11E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
516 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 10V | 250mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms | 0.5 lb (226.8 g) |
|
FP10-250PWR XFMR LAMINATED 2.5VA TH |
240 | - |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|
VPP12-200PWR XFMR LAMINATED 2.5VA TH |
8,272 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms | 0.25 lb (113.4 g) |
|
VPP28-180PWR XFMR LAMINATED 5VA TH |
238 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 360mA, Series 180mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms | 0.37 lb (167.83 g) |
|
FS16-150PWR XFMR LAMINATED 2.4VA TH |
4,295 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
FS12-200PWR XFMR LAMINATED 2.4VA TH |
65 |
1+：$7.54400 10+：$6.80800 25+：$6.53088 50+：$6.32768 100+：$6.12992 250+：$5.87658 500+：$5.69114 1000+：$5.51086 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|

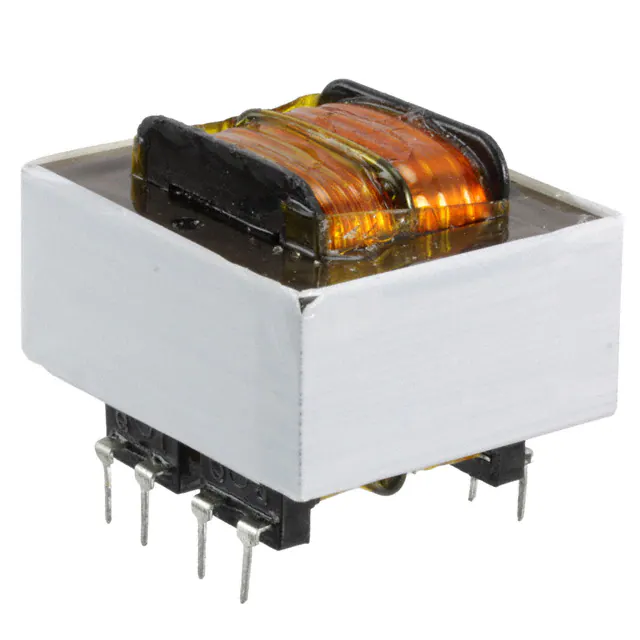

FS12-1000-C2PWR XFMR LAMINATED 12VA TH |
484 |
1+：$8.52800 10+：$7.69280 30+：$7.31840 50+：$7.14944 100+：$6.92544 250+：$6.63875 500+：$6.42891 1000+：$6.22499 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 4200Vrms | 0.7 lb (317.51 g) |
|
F10-250PWR XFMR LAMINATED 2.5VA TH |
207 |
1+：$6.45600 10+：$5.82480 25+：$5.58816 50+：$5.41488 100+：$5.24600 250+：$5.02973 500+：$4.87128 1000+：$4.71729 |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|

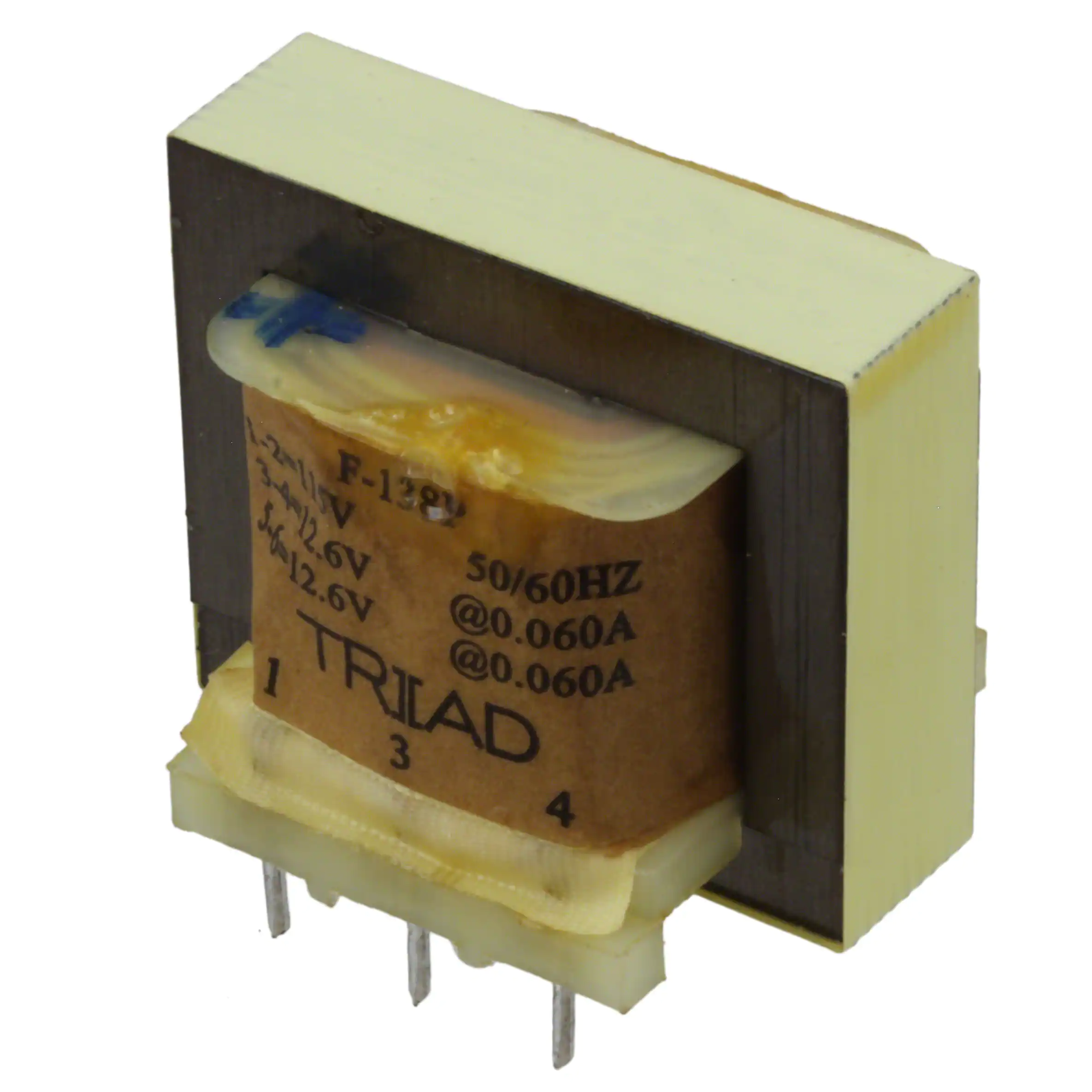

F-138PPWR XFMR LAMINATED 1.5VA TH |
298 | - |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 12.6V, Series 25.2V | Parallel 120mA, Series 60mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms | 0.219 lb (99.34 g) |
|
|
VPP20-120PWR XFMR LAMINATED 2.5VA TH |
382 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms | 0.25 lb (113.4 g) |
