Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPP12-1600PWR XFMR LAMINATED 20VA TH |
133 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
|
|
VPP28-720PWR XFMR LAMINATED 20VA TH |
679 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.44A, Series 720mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
|
|
VPP20-1000PWR XFMR LAMINATED 20VA TH |
261 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
|

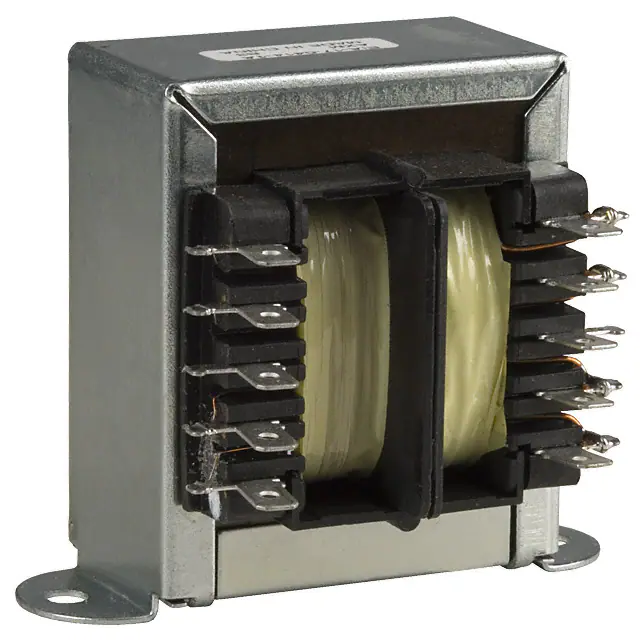

VPS36-700PWR XFMR LAMINATED 25VA CHAS MT |
189 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 71.37mm | 4000Vrms | 1.3 lbs (589.7 g) |
|

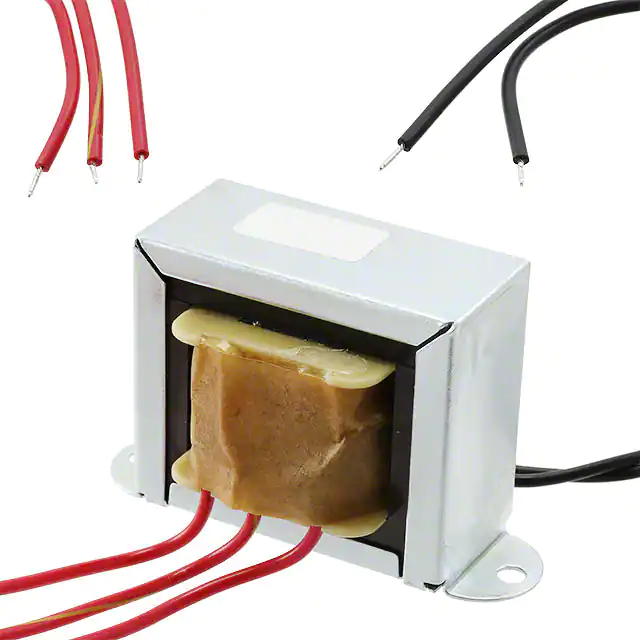

F-45XPWR XFMR LAMINATED 24VA CHAS MT |
569 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 1A | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
|
VPS230-110PWR XFMR LAMINATED 25VA CHAS MT |
17 |
1+：$12.90400 10+：$11.63040 25+：$11.15296 50+：$10.80320 100+：$10.46280 250+：$10.02749 500+：$9.70896 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 220mA, Series 110mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms | 1.3 lbs (589.7 g) |
|

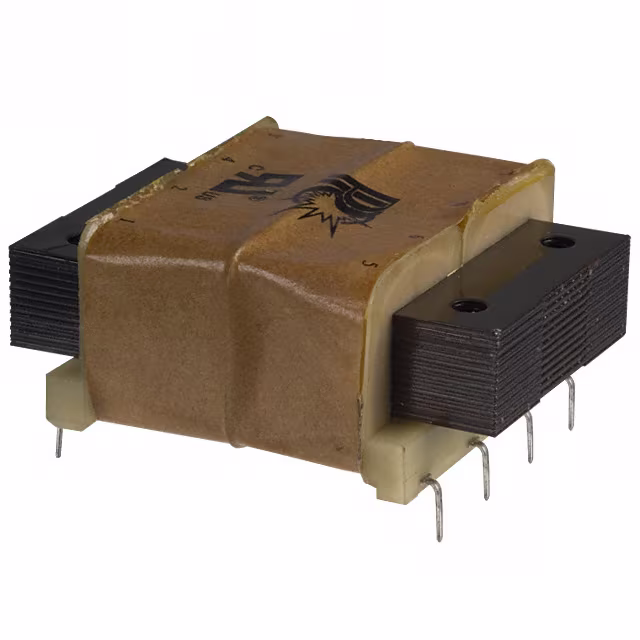

FP16-750PWR XFMR LAMINATED 12VA TH |
5,294 | - |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.5A, Series 750mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms | 0.688 lb (312.07 g) |
|

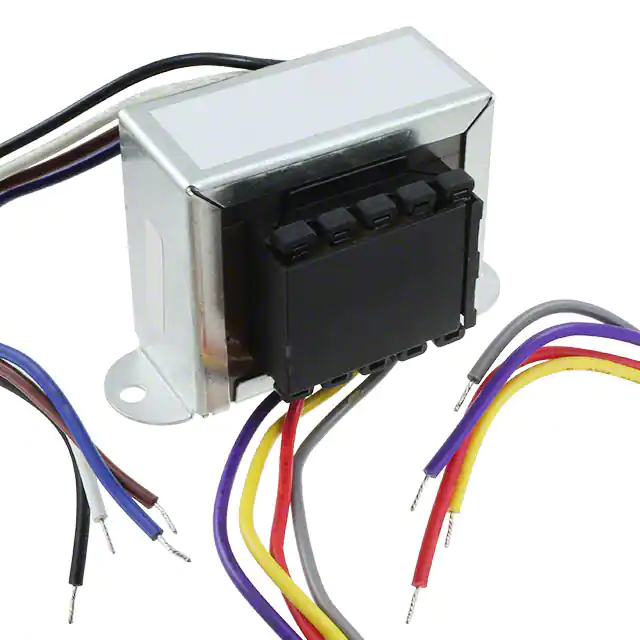

VPL24-1100PWR XFMR LAMINATED 25.0VA CHAS |
136 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 24V | 1.04A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|

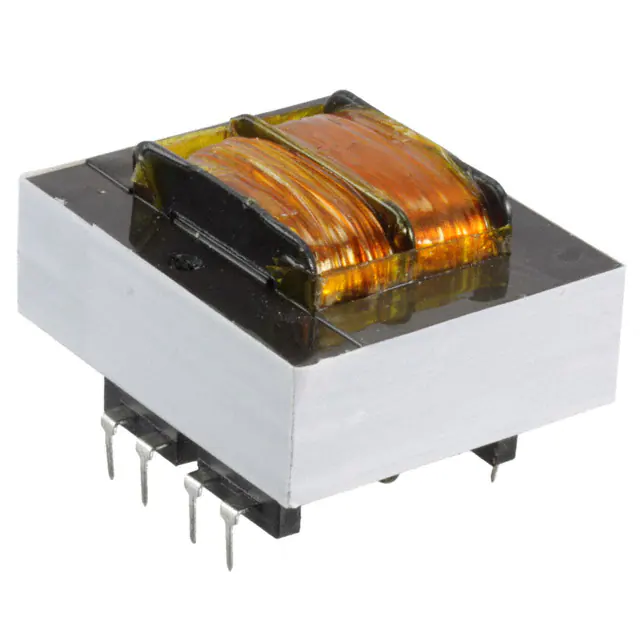

FS24-800-C2PWR XFMR LAMINATED 20VA TH |
181 | - |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms | 0.8 lb (362.87 g) |
|
TCT50-08E07ABPWR XFMR LAMINATED 50VA CHAS MT |
209 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 240V | 12V | 4.17A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
