Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T5007NLTXFRMR ISDN-S 1:2/1:2 22MH SMD |
1,549 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:2, 1:2 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
H2009NLMODULE XFRMR VOIP DL LAN 24-SOIC |
2,132 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | 0°C ~ 70°C | - | - |
|
HDX8006NLMDL,SIN, HDBASET, 140W, SMT |
1,904 | - |
|
Datasheet | - | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
TX1475NLXFRMR OCTAL 1:2/1:1 1.2MH SMD |
2,564 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1193NLMODULE 1CT:2CT 1.2MH SMD |
1,300 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

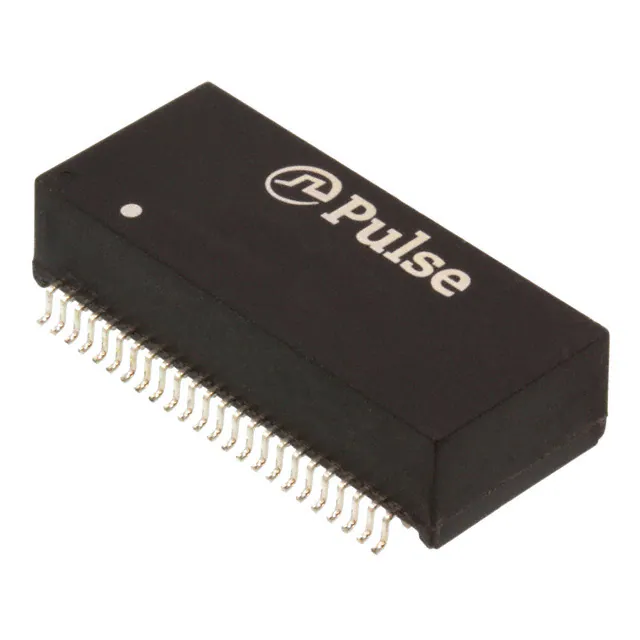

H5014NLTTRANSFORMER MODULE GIGABIT 2PORT |
4,383 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
H2017NLTXFRMR MAGNT MOD 4PORT POE 10/100 |
1,276 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
H6101NLPULSE XFMR 1CT:1CT TX/RX |
3,548 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
H6200NLPULSE XFMR 1CT:1CT TX/RX |
4,802 | - |
|
Datasheet | - | Tray | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
PM2180.034NLXFMR GATE-DR 3CT:4CT SM NPB |
3,362 | - |
|
Datasheet | PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3:4CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
