Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX6400NLMODULE QUAD 1GPP 1:1 SMT TU |
641 |
1+：$24.76800 10+：$22.29760 25+：$21.37376 60+：$20.52334 120+：$19.87146 300+：$19.03880 |
|
Datasheet | HX6400NL | Tray | Active | LAN 1000 Base-T | 150µH | - | 1:1 | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
PA2004NLPULSE XFMR 1:1:1 437UH |
1,058 |
1+：$1.76800 10+：$1.60240 25+：$1.53920 75+：$1.46582 150+：$1.42106 300+：$1.37738 525+：$1.34295 1050+：$1.30127 5025+：$1.21117 |
|
Datasheet | - | Tube | Active | - | 437µH | 20VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
PA0297NLPULSE XFMR 2:1:1 1200UH |
895 |
1+：$1.88000 10+：$1.69920 25+：$1.63232 50+：$1.58288 100+：$1.53464 250+：$1.47270 500+：$1.42720 1000+：$1.38288 5000+：$1.28447 |
|
Datasheet | - | Tube | Active | - | 1200µH | 27.2VµS | 2:1:1 | Surface Mount | 0.354" L x 0.339" W (9.00mm x 8.60mm) | 0.299" (7.60mm) | -40°C ~ 130°C | - | - |
|
HM2108NLXFMR CMC MODULE AECQ BATT MNGT |
683 |
1+：$3.89600 10+：$3.51760 40+：$3.30560 80+：$3.20350 120+：$3.14506 280+：$3.02574 520+：$2.94108 1000+：$2.85384 |
|
Datasheet | - | Tube | Active | - | 135µH | - | - | Surface Mount | 0.335" L x 0.663" W (8.50mm x 16.84mm) | 0.226" (5.75mm) | - | - | - |
|
HX1339NLXFRMR MODULE 100B-TX 2 CH SMT |
219 |
1+：$7.52000 10+：$6.78720 30+：$6.45734 60+：$6.25640 120+：$6.06066 270+：$5.83852 510+：$5.66934 1020+：$5.48986 |
|
Datasheet | - | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | - | 0.300" (7.62mm) | - | - | - |
|

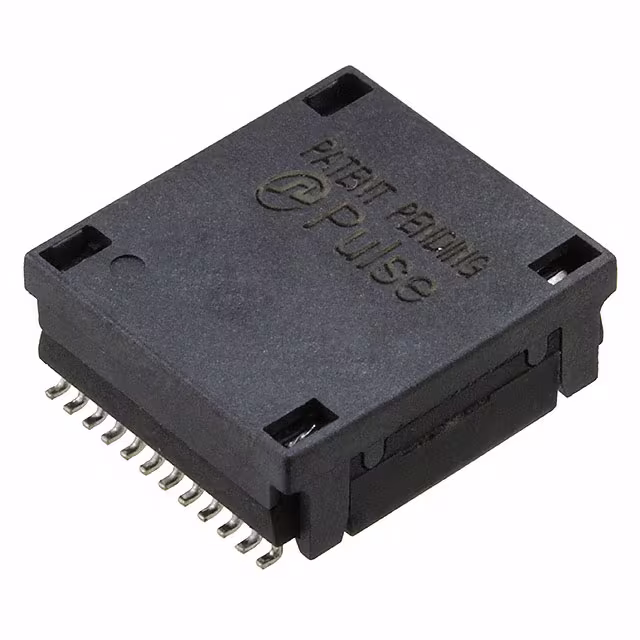

H7008FNLTRANSFORMER MODULE 10GBASE-T |
162 |
1+：$8.04000 10+：$7.25280 35+：$6.85189 70+：$6.63829 105+：$6.51589 280+：$6.22791 525+：$6.04930 1015+：$5.86686 |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591" L x 0.539" W (15.00mm x 13.70mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
PA2002NLPULSE XFMR 1:1:1 1.8MH |
17 |
1+：$1.76800 10+：$1.60320 25+：$1.53984 50+：$1.49328 100+：$1.44776 250+：$1.38934 500+：$1.34642 1000+：$1.30461 5000+：$1.21177 |
|
Datasheet | - | Tube | Active | - | 1.8mH | 60VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

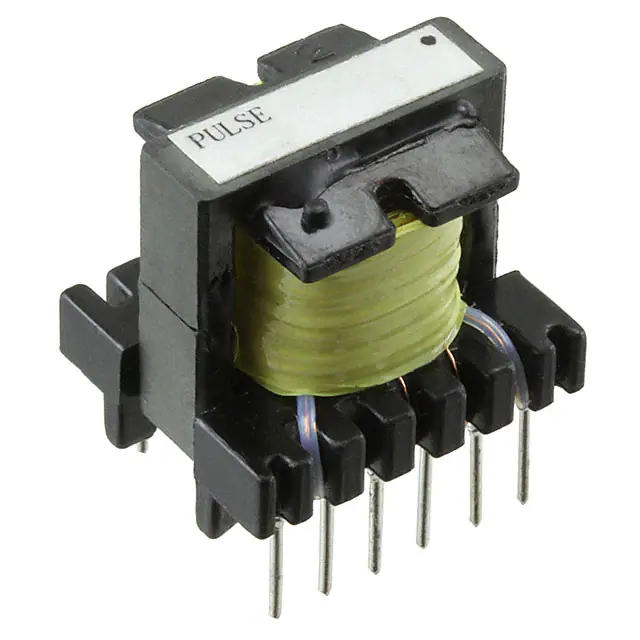

PA2517NLPULSE XFMR 1.2MH |
10 |
1+：$2.09600 10+：$1.89680 40+：$1.78420 80+：$1.72970 120+：$1.69854 280+：$1.63483 520+：$1.58954 1000+：$1.54284 5000+：$1.43287 |
|
Datasheet | - | Tray | Active | - | 1.2mH | - | - | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.709" (18.00mm) | -40°C ~ 130°C | - | - |
|
H5007ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
132 |
1+：$6.38400 10+：$5.76400 25+：$5.53056 50+：$5.35888 100+：$5.19176 250+：$4.97773 500+：$4.82098 1000+：$4.66859 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
H2006ANLMODULE MAGNETICS POE DUAL VOIP |
90 |
1+：$6.79200 10+：$6.12640 35+：$5.78789 70+：$5.60777 105+：$5.50454 280+：$5.26169 525+：$5.11101 1015+：$4.95706 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
