Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

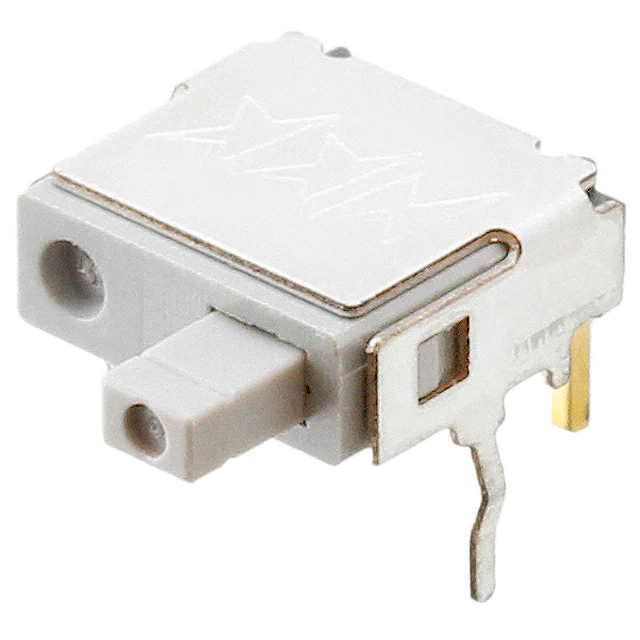

GB215AHSWITCH PUSH SPST-NO 0.4VA 28V |
1,408 | - |
|
Datasheet | GB2 | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
FB15ANEP2SWITCH PUSH SPST-NO 0.5A 125V |
3,933 | - |
|
Datasheet | FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Plunger for Cap | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
BB15APSWITCH PUSH SPDT 0.4VA 28V |
485 | - |
|
Datasheet | BB | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

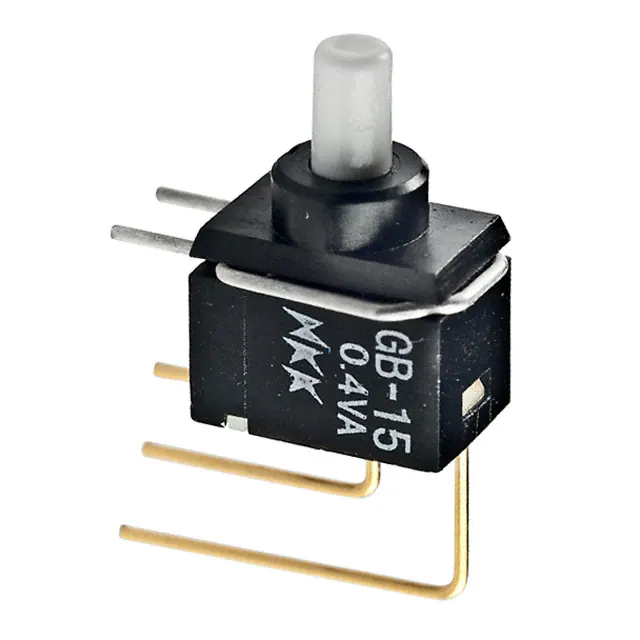

GB15AVSWITCH PUSH SPDT 0.4VA 28V |
7,509 | - |
|
Datasheet | GB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
AB15AV-FASWITCH PUSH SPDT 0.4VA 28V |
7,103 | - |
|
Datasheet | AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
SB4011NOHSWITCH PUSH SPST-NO 3A 125V |
3,332 | - |
|
Datasheet | SB40 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
GB15AV-XCSWITCH PUSH SPDT 0.4VA 28V |
5,750 | - |
|
Datasheet | GB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

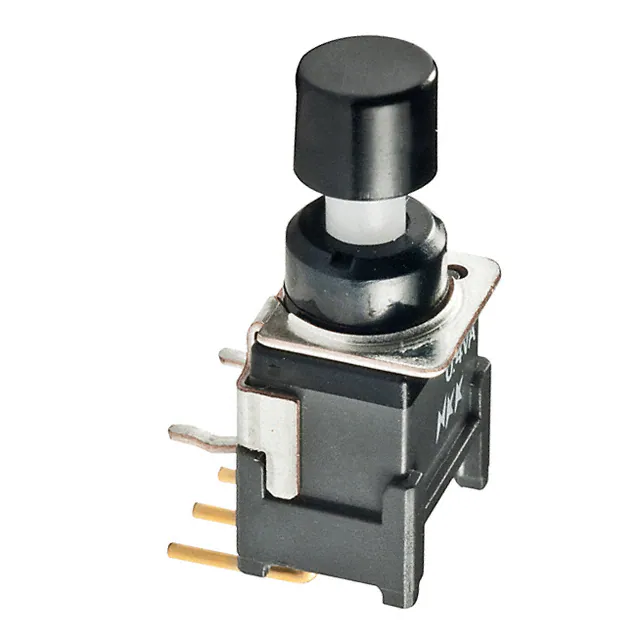

BB15AH-FASWITCH PUSH SPDT 0.4VA 28V |
9,506 | - |
|
Datasheet | BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
GB15AP-XASWITCH PUSH SPDT 0.4VA 28V |
1,564 |
1+：$8.51200 10+：$7.34880 25+：$6.92928 50+：$6.62752 100+：$6.33840 250+：$5.97478 500+：$5.71304 1000+：$5.46232 |
|
Datasheet | GB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
AB15AHSWITCH PUSH SPDT 0.4VA 28V |
482 | - |
|
Datasheet | AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
